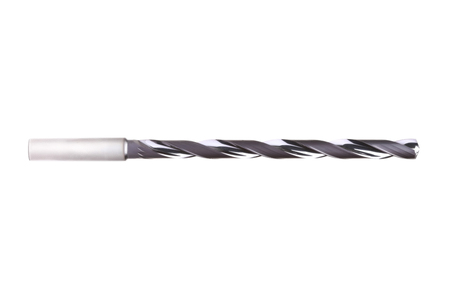

MEGA-Speed-Drill-Inox
The cutting edges of the MEGA-Speed-Drill-Inox are unequally split. In addition, the drill has three guide chamfers. This prevents vibrations and reduces friction. The highly polished flutes guarantee optimum chip flow. The cutting geometry, which is specially adapted to stainless steel, makes it possible to drill holes with up to 30 % higher feed rates compared to conventional drills.
Selected facets:
- 8.0 Shank diameter (d2)
- 20xD Drilling depth xD
- 4.0 Shank diameter (d2)
- 10.0 Shank diameter (d2)
- 12xD Drilling depth xD
- MEGA-Speed-Drill-Inox family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(15)
(15)
(15)-
MEGA-Speed-Drill-Inox
d1: 6,1 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0610-2-3-135HA12-HP374
Order number: 31132719
In Stock -
MEGA-Speed-Drill-Inox
d1: 6,2 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0620-2-3-135HA12-HP374
Order number: 31132720
In Stock -
MEGA-Speed-Drill-Inox
d1: 6,5 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0650-2-3-135HA12-HP374
Order number: 31132723
In Stock -
MEGA-Speed-Drill-Inox
d1: 6,8 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0680-2-3-135HA12-HP374
Order number: 31132726
In Stock -
MEGA-Speed-Drill-Inox
d1: 7 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0700-2-3-135HA12-HP374
Order number: 31132728
In Stock -
MEGA-Speed-Drill-Inox
d1: 7,5 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0750-2-3-135HA12-HP374
Order number: 31132733
In Stock -
MEGA-Speed-Drill-Inox
d1: 7,8 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0780-2-3-135HA12-HP374
Order number: 31132736
In Stock -
MEGA-Speed-Drill-Inox
d1: 8 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0800-2-3-135HA12-HP374
Order number: 31132738
In Stock -
MEGA-Speed-Drill-Inox
d1: 8,5 mm; d2: 10 mm; l1: 162 mm; l2: 120 mm; l3: 110 mm; z: 2 ; internal cooling; SCD411-0850-2-3-135HA12-HP374
Order number: 31132743
In Stock -
MEGA-Speed-Drill-Inox
d1: 9 mm; d2: 10 mm; l1: 162 mm; l2: 120 mm; l3: 110 mm; z: 2 ; internal cooling; SCD411-0900-2-3-135HA12-HP374
Order number: 31132748
In Stock -
MEGA-Speed-Drill-Inox
d1: 9,1 mm; d2: 10 mm; l1: 162 mm; l2: 120 mm; l3: 110 mm; z: 2 ; internal cooling; SCD411-0910-2-3-135HA12-HP374
Order number: 31132749
In Stock -
MEGA-Speed-Drill-Inox
d1: 9,5 mm; d2: 10 mm; l1: 162 mm; l2: 120 mm; l3: 110 mm; z: 2 ; internal cooling; SCD411-0950-2-3-135HA12-HP374
Order number: 31132753
In Stock -
MEGA-Speed-Drill-Inox
d1: 9,7 mm; d2: 10 mm; l1: 162 mm; l2: 120 mm; l3: 110 mm; z: 2 ; internal cooling; SCD411-0970-2-3-135HA12-HP374
Order number: 31132755
In Stock -
MEGA-Speed-Drill-Inox
d1: 9,8 mm; d2: 10 mm; l1: 162 mm; l2: 120 mm; l3: 110 mm; z: 2 ; internal cooling; SCD411-0980-2-3-135HA12-HP374
Order number: 31132756
In Stock -
MEGA-Speed-Drill-Inox
d1: 10 mm; d2: 10 mm; l1: 162 mm; l2: 120 mm; l3: 110 mm; z: 2 ; internal cooling; SCD411-1000-2-3-135HA12-HP374
Order number: 31132758
In Stock
