MICRO-Drill-Steel
The two-edged solid carbide drill MICRO-Drill-Steel is a specially designed drill for the precise machining of steel in the micro-range. It is distinguished by four lead edges and a micro-geometry tailored to steel. The flute design with core taper ensures optimal chip removal, even with tough steel materials. Highest performance and tool life are guaranteed thanks to a new cutting material combination.
Selected facets:
- 7.0 Shank diameter (d2)
- 5xD Drilling depth xD
- 12.0 Shank diameter (d2)
- 3.0 Shank diameter (d2)
- 8xD Drilling depth xD
- MICRO-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Shank diameter (d2)
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(30)
(30)
(30)-
MICRO-Drill-Steel
d1: 0,8 mm; d2: 3 mm; l1: 45 mm; l2: 6 mm; l3: 4 mm; z: 2; internal cooling;SCD371-0080-2-4-142HA05-HP246
Order number: 31238823
In Stock -
MICRO-Drill-Steel
d1: 1 mm; d2: 3 mm; l1: 45 mm; l2: 7,5 mm; l3: 5 mm; z: 2; internal cooling;SCD371-0100-2-4-142HA05-HP246
Order number: 31238825
In Stock -
MICRO-Drill-Steel
d1: 1,1 mm; d2: 3 mm; l1: 45 mm; l2: 8,250 mm; l3: 5,5 mm; z: 2; internal cooling;SCD371-0110-2-4-142HA05-HP246
Order number: 31238826
In Stock -
MICRO-Drill-Steel
d1: 1,2 mm; d2: 3 mm; l1: 45 mm; l2: 9 mm; l3: 6 mm; z: 2; internal cooling;SCD371-0120-2-4-142HA05-HP246
Order number: 31238827
In Stock -
MICRO-Drill-Steel
d1: 1,2 mm; d2: 3 mm; l1: 50 mm; l2: 14,4 mm; l3: 9,6 mm; z: 2; internal cooling;SCD371-0120-2-4-142HA08-HP246
Order number: 31238907
In Stock -

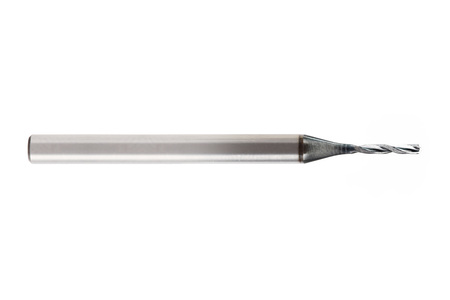

MICRO-Drill-Steel
d1: 1,5 mm; d2: 3 mm; l1: 45 mm; l2: 11,250 mm; l3: 7,5 mm; z: 2; internal cooling;SCD371-0150-2-4-142HA05-HP246
Order number: 31238890
In Stock -
MICRO-Drill-Steel
d1: 1,5 mm; d2: 3 mm; l1: 52 mm; l2: 18 mm; l3: 12 mm; z: 2; internal cooling;SCD371-0150-2-4-142HA08-HP246
Order number: 31238910
In Stock -
MICRO-Drill-Steel
d1: 1,6 mm; d2: 3 mm; l1: 55 mm; l2: 19,2 mm; l3: 12,8 mm; z: 2; internal cooling;SCD371-0160-2-4-142HA08-HP246
Order number: 31238911
In Stock -
MICRO-Drill-Steel
d1: 1,6 mm; d2: 3 mm; l1: 50 mm; l2: 12 mm; l3: 8 mm; z: 2; internal cooling;SCD371-0160-2-4-142HA05-HP246
Order number: 31238891
In Stock -

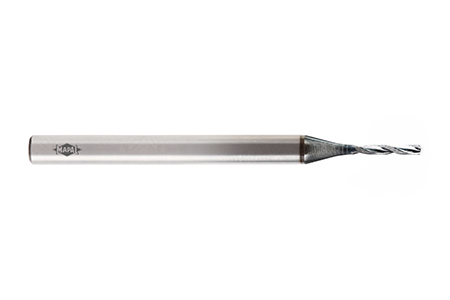

MICRO-Drill-Steel
d1: 1,8 mm; d2: 3 mm; l1: 50 mm; l2: 13,5 mm; l3: 9 mm; z: 2; internal cooling;SCD371-0180-2-4-142HA05-HP246
Order number: 31238893
In Stock -
MICRO-Drill-Steel
d1: 1,8 mm; d2: 3 mm; l1: 55 mm; l2: 21,6 mm; l3: 14,4 mm; z: 2; internal cooling;SCD371-0180-2-4-142HA08-HP246
Order number: 31238913
In Stock -
MICRO-Drill-Steel
d1: 1,9 mm; d2: 3 mm; l1: 50 mm; l2: 14,250 mm; l3: 9,5 mm; z: 2; internal cooling;SCD371-0190-2-4-142HA05-HP246
Order number: 31238894
In Stock -
MICRO-Drill-Steel
d1: 1,9 mm; d2: 3 mm; l1: 60 mm; l2: 22,8 mm; l3: 15,2 mm; z: 2; internal cooling;SCD371-0190-2-4-142HA08-HP246
Order number: 31238914
In Stock -
MICRO-Drill-Steel
d1: 2 mm; d2: 3 mm; l1: 60 mm; l2: 24 mm; l3: 16 mm; z: 2; internal cooling;SCD371-0200-2-4-142HA08-HP246
Order number: 31238915
In Stock -
MICRO-Drill-Steel
d1: 2 mm; d2: 3 mm; l1: 50 mm; l2: 15 mm; l3: 10 mm; z: 2; internal cooling;SCD371-0200-2-4-142HA05-HP246
Order number: 31238895
In Stock
