MEGA-Speed-Drill-Steel

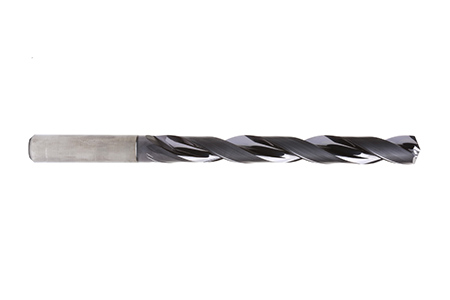

The double-edged solid carbide drill MEGA-Speed-Drill-Steel is specially designed for high-speed machining and is the first choice for series production. Its unequally split cutting edges and highly polished flutes prevent vibration and reduce friction.
Selected facets:
- 5.0 Shank diameter (d2)
- 8.0 Shank diameter (d2)
- 12xD Drilling depth xD
- 6xD Drilling depth xD
- 15xD Drilling depth xD
- MEGA-Speed-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(7)
(7)
(7)
(7)
(7)
(7)-
MEGA-Speed-Drill-Steel
d1: 6,1 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; innere Kühlmittelzufuhr; SCD621-0610-2-3-145HA12-HP358
Order number: 31239179
In Stock -
MEGA-Speed-Drill-Steel
d1: 6,5 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; innere Kühlmittelzufuhr; SCD621-0650-2-3-145HA12-HP358
Order number: 31239183
In Stock -
MEGA-Speed-Drill-Steel
d1: 6,8 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; innere Kühlmittelzufuhr; SCD621-0680-2-3-145HA12-HP358
Order number: 31239186
In Stock -
MEGA-Speed-Drill-Steel
d1: 7 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; innere Kühlmittelzufuhr; SCD621-0700-2-3-145HA12-HP358
Order number: 31239188
In Stock -
MEGA-Speed-Drill-Steel
d1: 7,5 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; innere Kühlmittelzufuhr; SCD621-0750-2-3-145HA12-HP358
Order number: 31239193
In Stock -
MEGA-Speed-Drill-Steel
d1: 7,8 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; innere Kühlmittelzufuhr; SCD621-0780-2-3-145HA12-HP358
Order number: 31239196
In Stock -
MEGA-Speed-Drill-Steel
d1: 8 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; innere Kühlmittelzufuhr; SCD621-0800-2-3-145HA12-HP358
Order number: 31239198
In Stock
