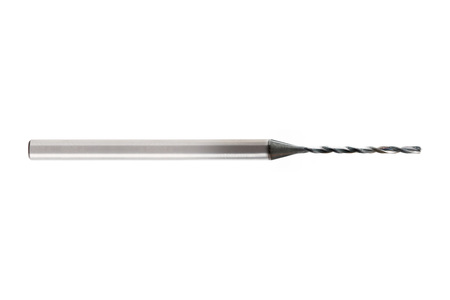

MICRO-Drill-Steel
The two-edged solid carbide drill MICRO-Drill-Steel is a specially designed drill for the precise machining of steel in the micro-range. It is distinguished by four lead edges and a micro-geometry tailored to steel. The flute design with core taper ensures optimal chip removal, even with tough steel materials. Highest performance and tool life are guaranteed thanks to a new cutting material combination.
Selected facets:
- 3.0 Shank diameter (d2)
- 4xD Drilling depth xD
- 6.0 Shank diameter (d2)
- 3xD Drilling depth xD
- 12xD Drilling depth xD
- MICRO-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Shank diameter (d2)
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(9)
(9)
(9)-
MICRO-Drill-Steel
d1: 1 mm; d2: 3 mm; l1: 57 mm; l2: 18 mm; l3: 12 mm; z: 2; internal cooling;SCD371-0100-2-4-142HA12-HP246
Order number: 31238925
In Stock -
MICRO-Drill-Steel
d1: 1,2 mm; d2: 3 mm; l1: 57 mm; l2: 21,6 mm; l3: 14,4 mm; z: 2; internal cooling;SCD371-0120-2-4-142HA12-HP246
Order number: 31238927
In Stock -
MICRO-Drill-Steel
d1: 1,3 mm; d2: 3 mm; l1: 62 mm; l2: 23,4 mm; l3: 15,6 mm; z: 2; internal cooling;SCD371-0130-2-4-142HA12-HP246
Order number: 31238928
In Stock -
MICRO-Drill-Steel
d1: 1,5 mm; d2: 3 mm; l1: 62 mm; l2: 27 mm; l3: 18 mm; z: 2; internal cooling;SCD371-0150-2-4-142HA12-HP246
Order number: 31238930
In Stock -
MICRO-Drill-Steel
d1: 2 mm; d2: 3 mm; l1: 72 mm; l2: 36 mm; l3: 24 mm; z: 2; internal cooling;SCD371-0200-2-4-142HA12-HP246
Order number: 31238935
In Stock -
MICRO-Drill-Steel
d1: 2,5 mm; d2: 3 mm; l1: 79 mm; l2: 45 mm; l3: 30 mm; z: 2; internal cooling;SCD371-0250-2-4-142HA12-HP246
Order number: 31238940
In Stock -
MICRO-Drill-Steel
d1: 2,8 mm; d2: 3 mm; l1: 85 mm; l2: 50,4 mm; l3: 33,6 mm; z: 2; internal cooling;SCD371-0280-2-4-142HA12-HP246
Order number: 31238943
In Stock -
MICRO-Drill-Steel
d1: 2,9 mm; d2: 3 mm; l1: 85 mm; l2: 52,2 mm; l3: 34,8 mm; z: 2; internal cooling;SCD371-0290-2-4-142HA12-HP246
Order number: 31238944
In Stock -
MICRO-Drill-Steel
d1: 2,1 mm; d2: 3 mm; l1: 72 mm; l2: 37,8 mm; l3: 25,2 mm; z: 2; internal cooling;SCD371-0210-2-4-142HA12-HP246
Order number: 31238936
currently out of stockInform me when article is back in stock
