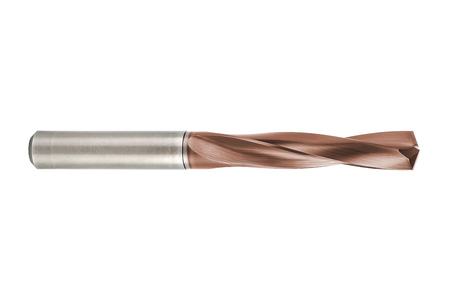

MEGA-Drill-Hardened
The MEGA-Drill-Hardened convinces with its macro and micro geometry specially adapted to hard machining up to 65 HRC. A new carbide substrate and an innovative coating ensure the highest tool life.
Selected facets:
Remove all filters-
Product Family
-
Material charateristics
-
Diameter (d1)
-
-
Drilling depth xD
-
Total length (l1)
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(11)-
MEGA-Drill-Hardened
d1: 10,1 mm; d2: 12 mm; l1: 102 mm; l2: 55 mm; l3: 40 mm; z: 2 ; external cooling; SCD140-1010-2-2-140HA03-HP809
Order number: 31151394
In Stock -
MEGA-Drill-Hardened
d1: 10,2 mm; d2: 12 mm; l1: 102 mm; l2: 55 mm; l3: 40 mm; z: 2 ; external cooling; SCD140-1020-2-2-140HA03-HP809
Order number: 31151395
In Stock -
MEGA-Drill-Hardened
d1: 10,3 mm; d2: 12 mm; l1: 102 mm; l2: 55 mm; l3: 40 mm; z: 2 ; external cooling; SCD140-1030-2-2-140HA03-HP809
Order number: 31151396
In Stock -
MEGA-Drill-Hardened
d1: 10,4 mm; d2: 12 mm; l1: 102 mm; l2: 55 mm; l3: 40 mm; z: 2 ; external cooling; SCD140-1040-2-2-140HA03-HP809
Order number: 31151397
In Stock -
MEGA-Drill-Hardened
d1: 10,5 mm; d2: 12 mm; l1: 102 mm; l2: 55 mm; l3: 40 mm; z: 2 ; external cooling; SCD140-1050-2-2-140HA03-HP809
Order number: 31151398
In Stock -
MEGA-Drill-Hardened
d1: 11 mm; d2: 12 mm; l1: 102 mm; l2: 55 mm; l3: 40 mm; z: 2 ; external cooling; SCD140-1100-2-2-140HA03-HP809
Order number: 31151403
In Stock -
MEGA-Drill-Hardened
d1: 11,5 mm; d2: 12 mm; l1: 102 mm; l2: 55 mm; l3: 40 mm; z: 2 ; external cooling; SCD140-1150-2-2-140HA03-HP809
Order number: 31151408
In Stock -
MEGA-Drill-Hardened
d1: 11,8 mm; d2: 12 mm; l1: 102 mm; l2: 55 mm; l3: 40 mm; z: 2 ; external cooling; SCD140-1180-2-2-140HA03-HP809
Order number: 31151411
In Stock -
MEGA-Drill-Hardened
d1: 11,9 mm; d2: 12 mm; l1: 102 mm; l2: 55 mm; l3: 40 mm; z: 2 ; external cooling; SCD140-1190-2-2-140HA03-HP809
Order number: 31151412
In Stock -
MEGA-Drill-Hardened
d1: 12 mm; d2: 12 mm; l1: 102 mm; l2: 55 mm; l3: 40 mm; z: 2 ; external cooling; SCD140-1200-2-2-140HA03-HP809
Order number: 31151413
In Stock -
MEGA-Drill-Hardened
d1: 17,5 mm; d2: 18 mm; l1: 123 mm; l2: 73 mm; l3: 51 mm; z: 2 ; external cooling; SCD140-1750-2-2-140HA03-HP809
Order number: 31151432
In Stock
