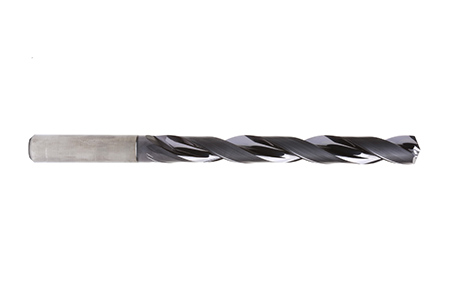

MEGA-Speed-Drill-Steel
The double-edged solid carbide drill MEGA-Speed-Drill-Steel is specially designed for high-speed machining and is the first choice for series production. Its unequally split cutting edges and highly polished flutes prevent vibration and reduce friction.
Selected facets:
- 14.0 Shank diameter (d2)
- 8xD Drilling depth xD
- 12xD Drilling depth xD
- 3xD Drilling depth xD
- MEGA-Speed-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(11)
(11)
(11)
(11)
(11)
(11)-
MEGA-Speed-Drill-Steel
d1: 12,5 mm; d2: 14 mm; l1: 178 mm; l2: 133 mm; l3: 112 mm; z: 2 ; internal cooling; SCD621-1250-2-3-145HA08-HP358
Order number: 31036239
In Stock -
MEGA-Speed-Drill-Steel
d1: 12,5 mm; d2: 14 mm; l1: 230 mm; l2: 182 mm; l3: 166 mm; z: 2; innere Kühlmittelzufuhr; SCD621-1250-2-3-145HA12-HP358
Order number: 31239240
In Stock -
MEGA-Speed-Drill-Steel
d1: 13 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-1300-2-3-145HA03-HP358
Order number: 31036359
In Stock -
MEGA-Speed-Drill-Steel
d1: 13 mm; d2: 14 mm; l1: 178 mm; l2: 133 mm; l3: 112 mm; z: 2 ; internal cooling; SCD621-1300-2-3-145HA08-HP358
Order number: 31036241
In Stock -
MEGA-Speed-Drill-Steel
d1: 13 mm; d2: 14 mm; l1: 230 mm; l2: 182 mm; l3: 166 mm; z: 2; innere Kühlmittelzufuhr; SCD621-1300-2-3-145HA12-HP358
Order number: 31239242
In Stock -
MEGA-Speed-Drill-Steel
d1: 13,5 mm; d2: 14 mm; l1: 178 mm; l2: 133 mm; l3: 112 mm; z: 2 ; internal cooling; SCD621-1350-2-3-145HA08-HP358
Order number: 31036242
In Stock -
MEGA-Speed-Drill-Steel
d1: 13,5 mm; d2: 14 mm; l1: 230 mm; l2: 182 mm; l3: 166 mm; z: 2; innere Kühlmittelzufuhr; SCD621-1350-2-3-145HA12-HP358
Order number: 31239243
In Stock -
MEGA-Speed-Drill-Steel
d1: 13,8 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-1380-2-3-145HA03-HP358
Order number: 31036361
In Stock -
MEGA-Speed-Drill-Steel
d1: 14 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-1400-2-3-145HA03-HP358
Order number: 31036362
In Stock -
MEGA-Speed-Drill-Steel
d1: 14 mm; d2: 14 mm; l1: 230 mm; l2: 182 mm; l3: 166 mm; z: 2; innere Kühlmittelzufuhr; SCD621-1400-2-3-145HA12-HP358
Order number: 31239245
In Stock -
MEGA-Speed-Drill-Steel
d1: 14 mm; d2: 14 mm; l1: 178 mm; l2: 133 mm; l3: 112 mm; z: 2 ; internal cooling; SCD621-1400-2-3-145HA08-HP358
Order number: 31036244
In Stock
