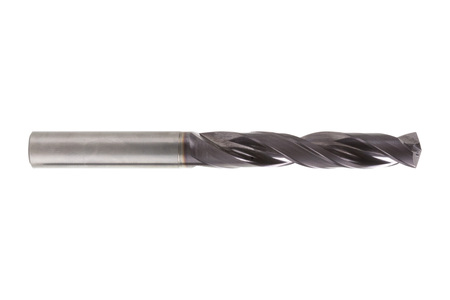

MEGA-Speed-Drill-Steel
The double-edged solid carbide drill MEGA-Speed-Drill-Steel is specially designed for high-speed machining and is the first choice for series production. Its unequally split cutting edges and highly polished flutes prevent vibration and reduce friction.
Selected facets:
- 5xD Drilling depth xD
- MEGA-Speed-Drill-Steel Product Family
- MEGA-Speed-Drill-Iron Product Family
- 20.0 Shank diameter (d2)
- MEGA-Speed-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(3)
(3)
(3)
(3)
(3)
(3)-
MEGA-Speed-Drill-Steel
d1: 18,5 mm; d2: 20 mm; l1: 153 mm; l2: 101 mm; l3: 77 mm; z: 2 ; internal cooling; SCD621-1850-2-3-145HA05-HP358
Order number: 30966411
In Stock -
MEGA-Speed-Drill-Steel
d1: 19,8 mm; d2: 20 mm; l1: 153 mm; l2: 101 mm; l3: 77 mm; z: 2 ; internal cooling; SCD621-1980-2-3-145HA05-HP358
Order number: 30966415
In Stock -
MEGA-Speed-Drill-Steel
d1: 20 mm; d2: 20 mm; l1: 153 mm; l2: 101 mm; l3: 77 mm; z: 2 ; internal cooling; SCD621-2000-2-3-145HA05-HP358
Order number: 30966416
In Stock
