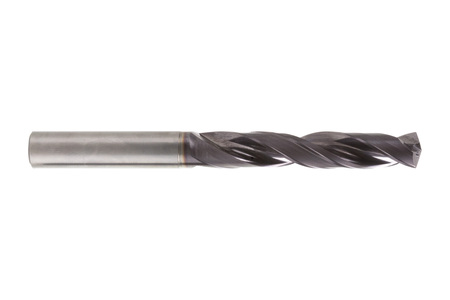

MEGA-Speed-Drill-Steel
The double-edged solid carbide drill MEGA-Speed-Drill-Steel is specially designed for high-speed machining and is the first choice for series production. Its unequally split cutting edges and highly polished flutes prevent vibration and reduce friction.
Selected facets:
- 5xD Drilling depth xD
- 16.0 Shank diameter (d2)
- 7.0 Shank diameter (d2)
- 8.0 Shank diameter (d2)
- 12.0 Shank diameter (d2)
- MEGA-Speed-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(35)
(35)
(35)
(35)
(35)
(35)-
MEGA-Speed-Drill-Steel
d1: 6,1 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0610-2-3-145HA05-HP358
Order number: 30966338
In Stock -
MEGA-Speed-Drill-Steel
d1: 6,2 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0620-2-3-145HA05-HP358
Order number: 30966339
In Stock -
MEGA-Speed-Drill-Steel
d1: 6,3 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0630-2-3-145HA05-HP358
Order number: 30966340
In Stock -
MEGA-Speed-Drill-Steel
d1: 6,5 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0650-2-3-145HA05-HP358
Order number: 30966342
In Stock -
MEGA-Speed-Drill-Steel
d1: 6,7 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0670-2-3-145HA05-HP358
Order number: 30966344
In Stock -
MEGA-Speed-Drill-Steel
d1: 6,8 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0680-2-3-145HA05-HP358
Order number: 30966345
In Stock -
MEGA-Speed-Drill-Steel
d1: 6,9 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0690-2-3-145HA05-HP358
Order number: 30966346
In Stock -
MEGA-Speed-Drill-Steel
d1: 7 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2; internal cooling; SCD621-0700-2-3-145HA05-HP358
Order number: 30966347
In Stock -
MEGA-Speed-Drill-Steel
d1: 7,1 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0710-2-3-145HA05-HP358
Order number: 30966348
In Stock -
MEGA-Speed-Drill-Steel
d1: 7,2 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0720-2-3-145HA05-HP358
Order number: 30966349
In Stock -
MEGA-Speed-Drill-Steel
d1: 7,3 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0730-2-3-145HA05-HP358
Order number: 30966350
In Stock -
MEGA-Speed-Drill-Steel
d1: 7,4 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0740-2-3-145HA05-HP358
Order number: 30966351
In Stock -
MEGA-Speed-Drill-Steel
d1: 7,5 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0750-2-3-145HA05-HP358
Order number: 30966352
In Stock -
MEGA-Speed-Drill-Steel
d1: 7,6 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0760-2-3-145HA05-HP358
Order number: 30966353
In Stock -
MEGA-Speed-Drill-Steel
d1: 7,8 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD621-0780-2-3-145HA05-HP358
Order number: 30966355
In Stock
