MEGA-Quadro-Drill-Plus
The double-edged solid carbide drill MEGA-Quadro-Drill-Plus has been specifically developed for precise drilling. The total of four guiding phases enables maximum drilling quality in terms of alignment accuracy, coaxiality, and positional accuracy. Through a novel coating and improved sharpening, the MEGA-Quadro-Drill-Plus guarantees consistently reliable drilling results. An optimized edge rounding leads to a significant improvement in service life.
Selected facets:
- 5xD Drilling depth xD
- 16.0 Shank diameter (d2)
- 4xD Drilling depth xD
- 12.0 Shank diameter (d2)
- 3.0 Shank diameter (d2)
- MEGA-Quadro-Drill-Plus family
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
Number of cutting edges (z)
-
Tip angle
-
Bore tolerance
(20)
(20)-
MEGA-Quadro-Drill-Plus
d1: 10,2 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; external cooling; SCD610-1020-2-4-140HA05-HP358
Order number: 31052703
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,2 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; internal cooling; SCD611-1020-2-4-140HA05-HP358
Order number: 31052867
In Stock -

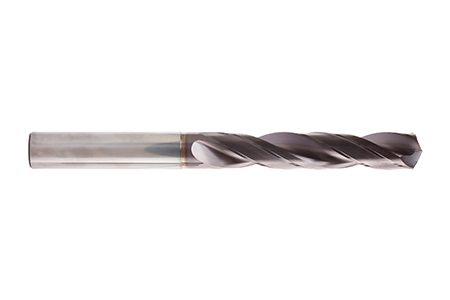

MEGA-Quadro-Drill-Plus
d1: 10,3 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; external cooling; SCD610-1030-2-4-140HA05-HP358
Order number: 31052704
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,3 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; internal cooling; SCD611-1030-2-4-140HA05-HP358
Order number: 31052868
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,4 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; internal cooling; SCD611-1040-2-4-140HA05-HP358
Order number: 31052869
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,5 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; external cooling; SCD610-1050-2-4-140HA05-HP358
Order number: 31052706
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,5 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; internal cooling; SCD611-1050-2-4-140HA05-HP358
Order number: 31052870
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,9 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; external cooling; SCD610-1090-2-4-140HA05-HP358
Order number: 31052710
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,9 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; internal cooling; SCD611-1090-2-4-140HA05-HP358
Order number: 31052874
In Stock -
MEGA-Quadro-Drill-Plus
d1: 11 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; external cooling; SCD610-1100-2-4-140HA05-HP358
Order number: 31052711
In Stock -
MEGA-Quadro-Drill-Plus
d1: 11 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; internal cooling; SCD611-1100-2-4-140HA05-HP358
Order number: 31052875
In Stock -
MEGA-Quadro-Drill-Plus
d1: 11,5 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; external cooling; SCD610-1150-2-4-140HA05-HP358
Order number: 31052716
In Stock -
MEGA-Quadro-Drill-Plus
d1: 11,5 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; internal cooling; SCD611-1150-2-4-140HA05-HP358
Order number: 31052880
In Stock -

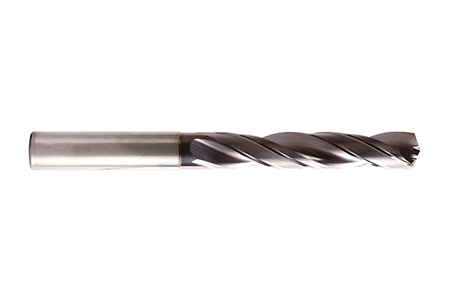

MEGA-Quadro-Drill-Plus
d1: 11,7 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; internal cooling; SCD611-1170-2-4-140HA05-HP358
Order number: 31052882
In Stock -
MEGA-Quadro-Drill-Plus
d1: 11,8 mm; d2: 12 mm, l1: 118 mm; l2: 71 mm; l3: 56 mm; z: 2; external cooling; SCD610-1180-2-4-140HA05-HP358
Order number: 31052719
In Stock
