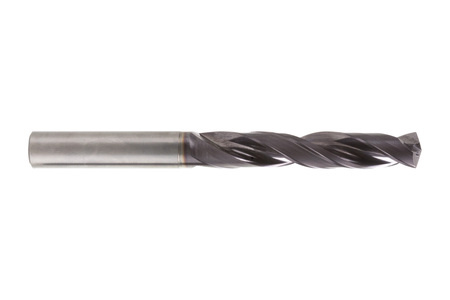

MEGA-Speed-Drill-Steel
The double-edged solid carbide drill MEGA-Speed-Drill-Steel is specially designed for high-speed machining and is the first choice for series production. Its unequally split cutting edges and highly polished flutes prevent vibration and reduce friction.
Selected facets:
- 5xD Drilling depth xD
- 12xD Drilling depth xD
- 25.0 Shank diameter (d2)
- 18.0 Shank diameter (d2)
- 3.0 Shank diameter (d2)
- MEGA-Speed-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(4)
(4)
(4)
(4)
(4)
(4)-
MEGA-Speed-Drill-Steel
d1: 16,5 mm; d2: 18 mm; l1: 143 mm; l2: 93 mm; l3: 71 mm; z: 2 ; internal cooling; SCD621-1650-2-3-145HA05-HP358
Order number: 30966405
In Stock -
MEGA-Speed-Drill-Steel
d1: 17 mm; d2: 18 mm; l1: 143 mm; l2: 93 mm; l3: 71 mm; z: 2 ; internal cooling; SCD621-1700-2-3-145HA05-HP358
Order number: 30966407
In Stock -
MEGA-Speed-Drill-Steel
d1: 17,5 mm; d2: 18 mm; l1: 143 mm; l2: 93 mm; l3: 71 mm; z: 2 ; internal cooling; SCD621-1750-2-3-145HA05-HP358
Order number: 30966408
In Stock -
MEGA-Speed-Drill-Steel
d1: 18 mm; d2: 18 mm; l1: 143 mm; l2: 93 mm; l3: 71 mm; z: 2 ; internal cooling; SCD621-1800-2-3-145HA05-HP358
Order number: 30966410
In Stock
