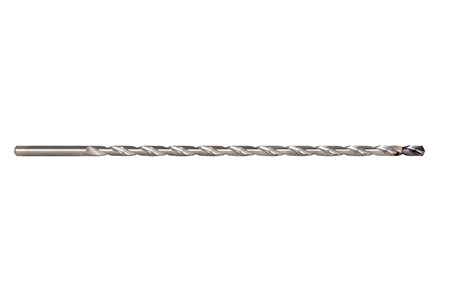

MEGA-Deep-Drill-Steel
The new MEGA-Deep-Drill-Steel is a deep drill for highly efficient deep drilling applications on steel and cast-iron materials. Due to its innovative geometrical and cutting material design, the deep drill is ideally adapted to high feed rates and maximum productivity in bore machining up to 40xD.
Selected facets:
- 40xD Drilling depth xD
- MEGA-Speed-Drill-Iron Product Family
- MEGA-Deep-Drill-Steel Product Family
- MEGA-Deep-Drill-Alu Product Family
- MEGA-Deep-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Bore tolerance
(9)
(9)-
MEGA-Deep-Drill-Steel
d1: 3 mm; d2: 4 mm; l1: 178 mm; l2: 146 mm; l3: 140 mm; z: 2; internal cooling; SCD701-0300-2-4-134HA40-HP400
Order number: 31459780
In Stock -
MEGA-Deep-Drill-Steel
d1: 3,5 mm; d2: 4 mm; l1: 198 mm; l2: 166 mm; l3: 160 mm; z: 2; internal cooling; SCD701-0350-2-4-134HA40-HP400
Order number: 31459781
In Stock -
MEGA-Deep-Drill-Steel
d1: 4 mm; d2: 4 mm; l1: 198 mm; l2: 166 mm; l3: 160 mm; z: 2; internal cooling; SCD701-0400-2-4-134HA40-HP400
Order number: 31459782
In Stock -
MEGA-Deep-Drill-Steel
d1: 4,5 mm; d2: 5 mm; l1: 219 mm; l2: 187 mm; l3: 180 mm; z: 2; internal cooling; SCD701-0450-2-4-134HA40-HP400
Order number: 31459783
In Stock -
MEGA-Deep-Drill-Steel
d1: 5 mm; d2: 5 mm; l1: 240 mm; l2: 208 mm; l3: 200 mm; z: 2; internal cooling; SCD701-0500-2-4-134HA40-HP400
Order number: 31459784
In Stock -
MEGA-Deep-Drill-Steel
d1: 7 mm; d2: 8 mm; l1: 331 mm; l2: 291 mm; l3: 280 mm; z: 2; internal cooling; SCD701-0700-2-4-134HA40-HP400
Order number: 31459786
In Stock -
MEGA-Deep-Drill-Steel
d1: 8 mm; d2: 8 mm; l1: 372 mm; l2: 332 mm; l3: 320 mm; z: 2; internal cooling; SCD701-0800-2-4-134HA40-HP400
Order number: 31459787
In Stock -
MEGA-Deep-Drill-Steel
d1: 9 mm; d2: 10 mm; l1: 418 mm; l2: 374 mm; l3: 360 mm; z: 2; internal cooling; SCD701-0900-2-4-134HA40-HP400
Order number: 31459788
In Stock -
MEGA-Deep-Drill-Steel
d1: 6 mm; d2: 6 mm; l1: 289 mm; l2: 249 mm; l3: 240 mm; z: 2; internal cooling; SCD701-0600-2-4-134HA40-HP400
Order number: 31459785
currently out of stockInform me when article is back in stock
