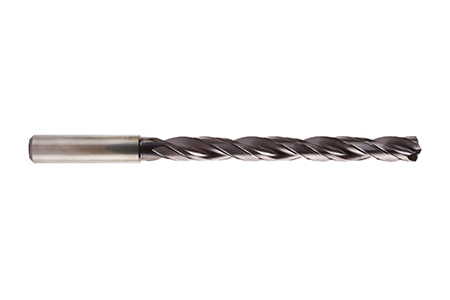

MEGA-Quadro-Drill-Plus
The double-edged solid carbide drill MEGA-Quadro-Drill-Plus has been specifically developed for precise drilling. The total of four guiding phases enables maximum drilling quality in terms of alignment accuracy, coaxiality, and positional accuracy. Through a novel coating and improved sharpening, the MEGA-Quadro-Drill-Plus guarantees consistently reliable drilling results. An optimized edge rounding leads to a significant improvement in service life.
Selected facets:
- 30xD Drilling depth xD
- 12.0 Shank diameter (d2)
- 8xD Drilling depth xD
- 18.0 Shank diameter (d2)
- 6xD Drilling depth xD
- MEGA-Quadro-Drill-Plus family
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Bore tolerance
(11)
(11)-
MEGA-Quadro-Drill-Plus
d1: 10,1 mm; d2: 12 mm, l1: 162 mm; l2: 114 mm; l3: 96 mm; z: 2; internal cooling; SCD611-1010-2-4-140HA08-HP358
Order number: 31052981
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,2 mm; d2: 12 mm, l1: 162 mm; l2: 114 mm; l3: 96 mm; z: 2; internal cooling; SCD611-1020-2-4-140HA08-HP358
Order number: 31052982
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,5 mm; d2: 12 mm, l1: 162 mm; l2: 114 mm; l3: 96 mm; z: 2; internal cooling; SCD611-1050-2-4-140HA08-HP358
Order number: 31052985
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,6 mm; d2: 12 mm, l1: 162 mm; l2: 114 mm; l3: 96 mm; z: 2; internal cooling; SCD611-1060-2-4-140HA08-HP358
Order number: 31052986
In Stock -
MEGA-Quadro-Drill-Plus
d1: 10,7 mm; d2: 12 mm, l1: 162 mm; l2: 114 mm; l3: 96 mm; z: 2; internal cooling; SCD611-1070-2-4-140HA08-HP358
Order number: 31052987
In Stock -
MEGA-Quadro-Drill-Plus
d1: 11 mm; d2: 12 mm, l1: 162 mm; l2: 114 mm; l3: 96 mm; z: 2; internal cooling; SCD611-1100-2-4-140HA08-HP358
Order number: 31052990
In Stock -
MEGA-Quadro-Drill-Plus
d1: 11,3 mm; d2: 12 mm, l1: 162 mm; l2: 114 mm; l3: 96 mm; z: 2; internal cooling; SCD611-1130-2-4-140HA08-HP358
Order number: 31052993
In Stock -
MEGA-Quadro-Drill-Plus
d1: 11,7 mm; d2: 12 mm, l1: 162 mm; l2: 114 mm; l3: 96 mm; z: 2; internal cooling; SCD611-1170-2-4-140HA08-HP358
Order number: 31052997
In Stock -
MEGA-Quadro-Drill-Plus
d1: 11,8 mm; d2: 12 mm, l1: 162 mm; l2: 114 mm; l3: 96 mm; z: 2; internal cooling; SCD611-1180-2-4-140HA08-HP358
Order number: 31052998
In Stock -
MEGA-Quadro-Drill-Plus
d1: 12 mm; d2: 12 mm, l1: 162 mm; l2: 114 mm; l3: 96 mm; z: 2; internal cooling; SCD611-1200-2-4-140HA08-HP358
Order number: 31053000
In Stock -
MEGA-Quadro-Drill-Plus
d1: 16,5 mm; d2: 18 mm, l1: 222 mm; l2: 171 mm; l3: 144 mm; z: 2; internal cooling; SCD611-1650-2-4-140HA08-HP358
Order number: 31053013
In Stock
