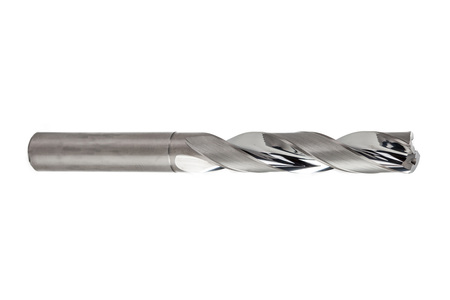

MEGA-180°-Drill-Alu
The MEGA-180°-Drill-Alu has a 180° point angle and a special bevel to produce a flat bore base. Due to its four-bevel geometry and the resulting very good guidance in the bore, the MEGA-180°-Drill-Alu achieves optimum roundness and surfaces in the bores. In addition, polished chip flutes ensure optimum chip transport. The MEGA-180°-Drill-Alu is also suitable for drilling and piloting on inclined surfaces of up to 45°. Due to the flat tip, the radial forces are reduced compared to conventional 140° drill tips.
Selected facets:
- 30xD Drilling depth xD
- 5xD Drilling depth xD
- 4.0 Shank diameter (d2)
- 20.0 Shank diameter (d2)
- 10.0 Shank diameter (d2)
- MEGA-180°-Drill-Alu family
-
Product Family
-
Material charateristics
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(5)-
MEGA-180°-Drill-Alu
d1: 8,2 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 2; internal cooling; SCD241-0820-2-4-180HA05-HU630
Order number: 30383054
In Stock -
MEGA-180°-Drill-Alu
d1: 9 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 2; internal cooling; SCD241-0900-2-4-180HA05-HU630
Order number: 30383062
In Stock -
MEGA-180°-Drill-Alu
d1: 9,3 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 2; internal cooling; SCD241-0930-2-4-180HA05-HU630
Order number: 30383066
In Stock -
MEGA-180°-Drill-Alu
d1: 20 mm; d2: 20 mm; l1: 151 mm; l2: 99 mm; l3: 75 mm; z: 2; internal cooling; SCD241-2000-2-4-180HA05-HU630
Order number: 30383117
In Stock -
MEGA-180°-Drill-Alu
d1: 8,5 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 2; internal cooling; SCD241-0850-2-4-180HA05-HU630
Order number: 30383057
currently out of stockInform me when article is back in stock
