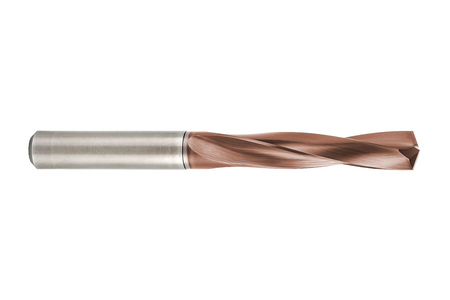

MEGA-Drill-Hardened
The MEGA-Drill-Hardened convinces with its macro and micro geometry specially adapted to hard machining up to 65 HRC. A new carbide substrate and an innovative coating ensure the highest tool life.
Selected facets:
- 3xD Drilling depth xD
- 14.0 Shank diameter (d2)
- 8xD Drilling depth xD
- 16.0 Shank diameter (d2)
- 6xD Drilling depth xD
- MEGA-Drill-Hardened family
-
Product Family
-
Material charateristics
-
Diameter (d1)
-
-
Drilling depth xD
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(11)-
MEGA-Drill-Hardened
d1: 12,5 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; external cooling; SCD140-1250-2-2-140HA03-HP809
Order number: 31151415
In Stock -
MEGA-Drill-Hardened
d1: 12,8 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; external cooling; SCD140-1280-2-2-140HA03-HP809
Order number: 31151416
In Stock -
MEGA-Drill-Hardened
d1: 13 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; external cooling; SCD140-1300-2-2-140HA03-HP809
Order number: 31151417
In Stock -
MEGA-Drill-Hardened
d1: 13,5 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; external cooling; SCD140-1350-2-2-140HA03-HP809
Order number: 31151418
In Stock -
MEGA-Drill-Hardened
d1: 14 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; external cooling; SCD140-1400-2-2-140HA03-HP809
Order number: 31151420
In Stock -
MEGA-Drill-Hardened
d1: 14,2 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 45 mm; z: 2 ; external cooling; SCD140-1420-2-2-140HA03-HP809
Order number: 31151421
In Stock -
MEGA-Drill-Hardened
d1: 14,5 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 45 mm; z: 2 ; external cooling; SCD140-1450-2-2-140HA03-HP809
Order number: 31151422
In Stock -
MEGA-Drill-Hardened
d1: 14,8 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 45 mm; z: 2 ; external cooling; SCD140-1480-2-2-140HA03-HP809
Order number: 31151423
In Stock -
MEGA-Drill-Hardened
d1: 15 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 45 mm; z: 2 ; external cooling; SCD140-1500-2-2-140HA03-HP809
Order number: 31151424
In Stock -
MEGA-Drill-Hardened
d1: 15,5 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 45 mm; z: 2 ; external cooling; SCD140-1550-2-2-140HA03-HP809
Order number: 31151426
In Stock -
MEGA-Drill-Hardened
d1: 16 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 45 mm; z: 2 ; external cooling; SCD140-1600-2-2-140HA03-HP809
Order number: 31151428
In Stock
