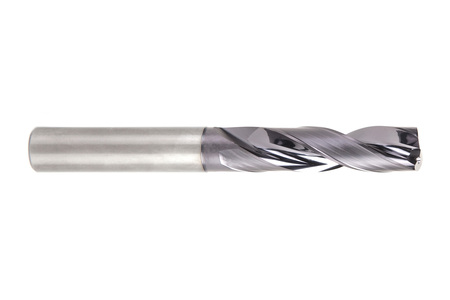

MEGA-180°-Drill
The MEGA-180°-Drill has a 180° point angle and a special bevel to produce a flat bore base. Due to its four-bevel geometry and the resulting very good guidance in the bore, the MEGA-180°-Drill achieves optimum roundness and surfaces in the bores. In addition, polished chip flutes ensure optimum chip transport. The MEGA-180°-Drill is also suitable for drilling and piloting on inclined surfaces of up to 45°. Due to the flat tip, the radial forces are reduced compared to conventional 140° drill tips.
Selected facets:
- 3xD Drilling depth xD
- 20xD Drilling depth xD
- 8.0 Shank diameter (d2)
- MEGA-180°-Drill family
- 10.0 Shank diameter (d2)
- internal cooling Cooling
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(40)
(40)
(40)-
MEGA-180°-Drill
d1: 6,1 mm; d2: 8 mm; l1: 79 mm; l2: 34 mm; l3: 24 mm; z: 2; internal cooling; SCD231-0610-2-4-180HA03-HP230
Order number: 30382680
In Stock -
MEGA-180°-Drill
d1: 6,2 mm; d2: 8 mm; l1: 79 mm; l2: 34 mm; l3: 24 mm; z: 2; internal cooling; SCD231-0620-2-4-180HA03-HP230
Order number: 30382681
In Stock -
MEGA-180°-Drill
d1: 6,3 mm; d2: 8 mm; l1: 79 mm; l2: 34 mm; l3: 24 mm; z: 2; internal cooling; SCD231-0630-2-4-180HA03-HP230
Order number: 30382682
In Stock -
MEGA-180°-Drill
d1: 6,4 mm; d2: 8 mm; l1: 79 mm; l2: 34 mm; l3: 24 mm; z: 2; internal cooling; SCD231-0640-2-4-180HA03-HP230
Order number: 30382683
In Stock -
MEGA-180°-Drill
d1: 6,5 mm; d2: 8 mm; l1: 79 mm; l2: 34 mm; l3: 24 mm; z: 2; internal cooling; SCD231-0650-2-4-180HA03-HP230
Order number: 30382684
In Stock -
MEGA-180°-Drill
d1: 6,6 mm; d2: 8 mm; l1: 79 mm; l2: 34 mm; l3: 24 mm; z: 2; internal cooling; SCD231-0660-2-4-180HA03-HP230
Order number: 30382685
In Stock -
MEGA-180°-Drill
d1: 6,7 mm; d2: 8 mm; l1: 79 mm; l2: 34 mm; l3: 24 mm; z: 2; internal cooling; SCD231-0670-2-4-180HA03-HP230
Order number: 30382686
In Stock -
MEGA-180°-Drill
d1: 6,8 mm; d2: 8 mm; l1: 79 mm; l2: 34 mm; l3: 24 mm; z: 2; internal cooling; SCD231-0680-2-4-180HA03-HP230
Order number: 30382687
In Stock -
MEGA-180°-Drill
d1: 6,9 mm; d2: 8 mm; l1: 79 mm; l2: 34 mm; l3: 24 mm; z: 2; internal cooling; SCD231-0690-2-4-180HA03-HP230
Order number: 30382688
In Stock -
MEGA-180°-Drill
d1: 7 mm; d2: 8 mm; l1: 79 mm; l2: 34 mm; l3: 24 mm; z: 2; internal cooling; SCD231-0700-2-4-180HA03-HP230
Order number: 30382689
In Stock -
MEGA-180°-Drill
d1: 7,1 mm; d2: 8 mm; l1: 79 mm; l2: 41 mm; l3: 29 mm; z: 2; internal cooling; SCD231-0710-2-4-180HA03-HP230
Order number: 30382690
In Stock -
MEGA-180°-Drill
d1: 7,2 mm; d2: 8 mm; l1: 79 mm; l2: 41 mm; l3: 29 mm; z: 2; internal cooling; SCD231-0720-2-4-180HA03-HP230
Order number: 30382691
In Stock -
MEGA-180°-Drill
d1: 7,3 mm; d2: 8 mm; l1: 79 mm; l2: 41 mm; l3: 29 mm; z: 2; internal cooling; SCD231-0730-2-4-180HA03-HP230
Order number: 30382692
In Stock -
MEGA-180°-Drill
d1: 7,4 mm; d2: 8 mm; l1: 79 mm; l2: 41 mm; l3: 29 mm; z: 2; internal cooling; SCD231-0740-2-4-180HA03-HP230
Order number: 30382693
In Stock -
MEGA-180°-Drill
d1: 7,5 mm; d2: 8 mm; l1: 79 mm; l2: 41 mm; l3: 29 mm; z: 2; internal cooling; SCD231-0750-2-4-180HA03-HP230
Order number: 30382694
In Stock
