MEGA-Drill-Steel-Plus
The double-edged solid carbide drill MEGA-Drill-Steel-Plus is ideally suited for medium to high quantities in a wide range of applications. The special design of the cutting edges and the chip chambers make it ideal for economical steel machining.
Selected facets:
- 7.0 Shank diameter (d2)
- 18.0 Shank diameter (d2)
- 3xD Drilling depth xD
- MEGA-Drill-Steel-Plus family
- 16.0 Shank diameter (d2)
- 6.0 Shank diameter (d2)
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
Number of cutting edges (z)
-
Tip angle
-
Product category
-
Bore tolerance
(125)
(125)
(125)-
MEGA-Drill-Steel-Plus
d1: 5,2 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0520-2-2-140HA03-HP358
Order number: 30801163
In Stock -

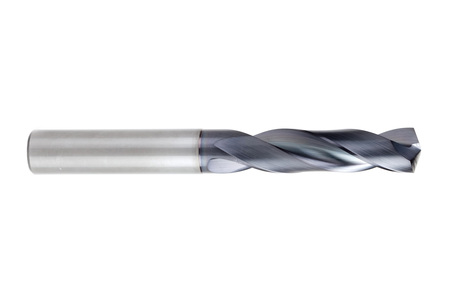

MEGA-Drill-Steel-Plus
d1: 5,3 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0530-2-2-140HA03-HP358
Order number: 30801164
In Stock -

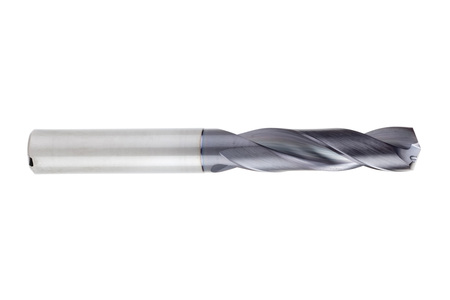

MEGA-Drill-Steel-Plus
d1: 5,3 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0530-2-2-140HA03-HP358
Order number: 30802142
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,4 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0540-2-2-140HA03-HP358
Order number: 30802143
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,4 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0540-2-2-140HA03-HP358
Order number: 30801165
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,5 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0550-2-2-140HA03-HP358
Order number: 30802144
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,5 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0550-2-2-140HA03-HP358
Order number: 30801166
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,55 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0555-2-2-140HA03-HP358
Order number: 30802145
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,55 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0555-2-2-140HA03-HP358
Order number: 30801167
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,6 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0560-2-2-140HA03-HP358
Order number: 30802146
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,6 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0560-2-2-140HA03-HP358
Order number: 30801168
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,7 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0570-2-2-140HA03-HP358
Order number: 30801169
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,7 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0570-2-2-140HA03-HP358
Order number: 30802147
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,75 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0575-2-2-140HA03-HP358
Order number: 30801170
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,75 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0575-2-2-140HA03-HP358
Order number: 30802148
In Stock
