MEGA-Drill-Steel-Plus

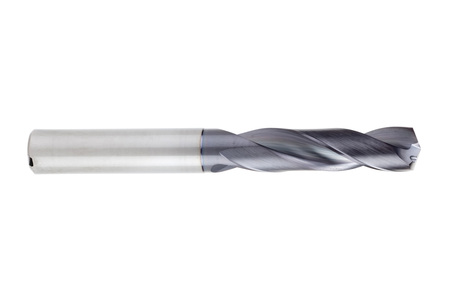

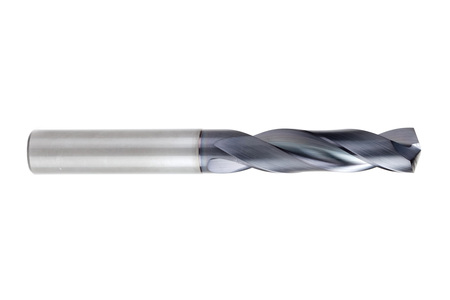

The double-edged solid carbide drill MEGA-Drill-Steel-Plus is ideally suited for medium to high quantities in a wide range of applications. The special design of the cutting edges and the chip chambers make it ideal for economical steel machining.
Selected facets:
- 7.0 Shank diameter (d2)
- 18.0 Shank diameter (d2)
- 3xD Drilling depth xD
- MEGA-Drill-Steel-Plus family
- 16.0 Shank diameter (d2)
- 6.0 Shank diameter (d2)
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
Number of cutting edges (z)
-
Tip angle
-
Product category
-
Bore tolerance
(125)
(125)
(125)-
MEGA-Drill-Steel-Plus
d1: 4,7 mm; d2: 6 mm; l1: 66 mm; l2: 24 mm; l3: 17 mm; z: 2 ; external cooling; SCD600-0470-2-2-140HA03-HP358
Order number: 30801156
In Stock -
MEGA-Drill-Steel-Plus
d1: 4,7 mm; d2: 6 mm; l1: 66 mm; l2: 24 mm; l3: 17 mm; z: 2 ; internal cooling; SCD601-0470-2-2-140HA03-HP358
Order number: 30802134
In Stock -
MEGA-Drill-Steel-Plus
d1: 4,8 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0480-2-2-140HA03-HP358
Order number: 30801157
In Stock -
MEGA-Drill-Steel-Plus
d1: 4,8 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0480-2-2-140HA03-HP358
Order number: 30802135
In Stock -
MEGA-Drill-Steel-Plus
d1: 4,9 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0490-2-2-140HA03-HP358
Order number: 30801158
In Stock -
MEGA-Drill-Steel-Plus
d1: 4,9 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0490-2-2-140HA03-HP358
Order number: 30802136
In Stock -
MEGA-Drill-Steel-Plus
d1: 4,95 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0495-2-2-140HA03-HP358
Order number: 30802137
In Stock -
MEGA-Drill-Steel-Plus
d1: 4,95 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0495-2-2-140HA03-HP358
Order number: 30801159
In Stock -
MEGA-Drill-Steel-Plus
d1: 5 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0500-2-2-140HA03-HP358
Order number: 30801160
In Stock -
MEGA-Drill-Steel-Plus
d1: 5 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0500-2-2-140HA03-HP358
Order number: 30802138
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,05 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0505-2-2-140HA03-HP358
Order number: 30802139
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,05 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0505-2-2-140HA03-HP358
Order number: 30801161
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,1 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; external cooling; SCD600-0510-2-2-140HA03-HP358
Order number: 30801162
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,1 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0510-2-2-140HA03-HP358
Order number: 30802140
In Stock -
MEGA-Drill-Steel-Plus
d1: 5,2 mm; d2: 6 mm; l1: 66 mm; l2: 28 mm; l3: 20 mm; z: 2 ; internal cooling; SCD601-0520-2-2-140HA03-HP358
Order number: 30802141
In Stock
