MEGA-Quadro-Drill-Plus
The double-edged solid carbide drill MEGA-Quadro-Drill-Plus has been specifically developed for precise drilling. The total of four guiding phases enables maximum drilling quality in terms of alignment accuracy, coaxiality, and positional accuracy. Through a novel coating and improved sharpening, the MEGA-Quadro-Drill-Plus guarantees consistently reliable drilling results. An optimized edge rounding leads to a significant improvement in service life.
Selected facets:
- 5xD Drilling depth xD
- 20xD Drilling depth xD
- 12xD Drilling depth xD
- 6xD Drilling depth xD
- 15xD Drilling depth xD
- MEGA-Quadro-Drill-Plus family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Tip angle
-
Bore tolerance
(187)
(187)-
MEGA-Quadro-Drill-Plus
d1: 5 mm; d2: 6 mm, l1: 82 mm; l2: 44 mm; l3: 35 mm; z: 2; internal cooling; SCD611-0500-2-4-140HA05-HP358
Order number: 31052815
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5 mm; d2: 6 mm, l1: 116 mm; l2: 78 mm; l3: 70 mm; z: 2; internal cooling; SCD611-0500-2-4-140HA12-HP358
Order number: 31053045
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5 mm; d2: 6 mm, l1: 82 mm; l2: 44 mm; l3: 35 mm; z: 2; external cooling; SCD610-0500-2-4-140HA05-HP358
Order number: 31052651
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5,050 mm; d2: 6 mm, l1: 116 mm; l2: 78 mm; l3: 70 mm; z: 2; internal cooling; SCD611-0505-2-4-140HA12-HP358
Order number: 31245107
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5,1 mm; d2: 6 mm, l1: 82 mm; l2: 44 mm; l3: 35 mm; z: 2; external cooling; SCD610-0510-2-4-140HA05-HP358
Order number: 31052652
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5,1 mm; d2: 6 mm, l1: 82 mm; l2: 44 mm; l3: 35 mm; z: 2; internal cooling; SCD611-0510-2-4-140HA05-HP358
Order number: 31052816
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5,1 mm; d2: 6 mm, l1: 116 mm; l2: 78 mm; l3: 70 mm; z: 2; internal cooling; SCD611-0510-2-4-140HA12-HP358
Order number: 31053046
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5,2 mm; d2: 6 mm, l1: 82 mm; l2: 44 mm; l3: 35 mm; z: 2; external cooling; SCD610-0520-2-4-140HA05-HP358
Order number: 31052653
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5,2 mm; d2: 6 mm, l1: 82 mm; l2: 44 mm; l3: 35 mm; z: 2; internal cooling; SCD611-0520-2-4-140HA05-HP358
Order number: 31052817
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5,2 mm; d2: 6 mm, l1: 116 mm; l2: 78 mm; l3: 70 mm; z: 2; internal cooling; SCD611-0520-2-4-140HA12-HP358
Order number: 31053047
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5,3 mm; d2: 6 mm, l1: 82 mm; l2: 44 mm; l3: 35 mm; z: 2; internal cooling; SCD611-0530-2-4-140HA05-HP358
Order number: 31052818
In Stock -

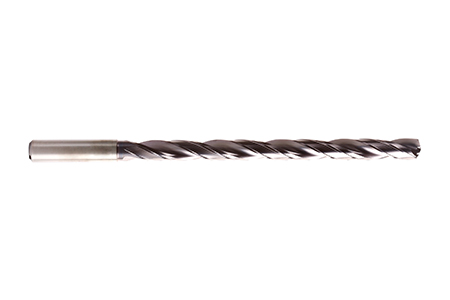

MEGA-Quadro-Drill-Plus
d1: 5,4 mm; d2: 6 mm, l1: 116 mm; l2: 78 mm; l3: 70 mm; z: 2; internal cooling; SCD611-0540-2-4-140HA12-HP358
Order number: 31053049
In Stock -

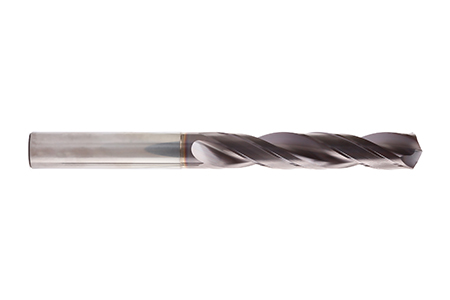

MEGA-Quadro-Drill-Plus
d1: 5,5 mm; d2: 6 mm, l1: 82 mm; l2: 44 mm; l3: 35 mm; z: 2; external cooling; SCD610-0550-2-4-140HA05-HP358
Order number: 31052656
In Stock -

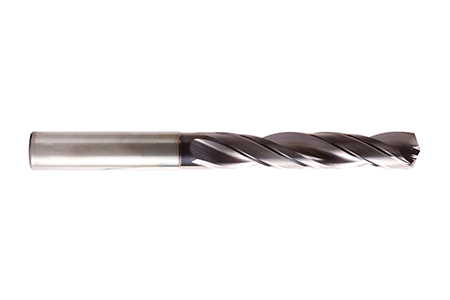

MEGA-Quadro-Drill-Plus
d1: 5,5 mm; d2: 6 mm, l1: 82 mm; l2: 44 mm; l3: 35 mm; z: 2; internal cooling; SCD611-0550-2-4-140HA05-HP358
Order number: 31052820
In Stock -
MEGA-Quadro-Drill-Plus
d1: 5,5 mm; d2: 6 mm, l1: 116 mm; l2: 78 mm; l3: 70 mm; z: 2; internal cooling; SCD611-0550-2-4-140HA12-HP358
Order number: 31053050
In Stock
