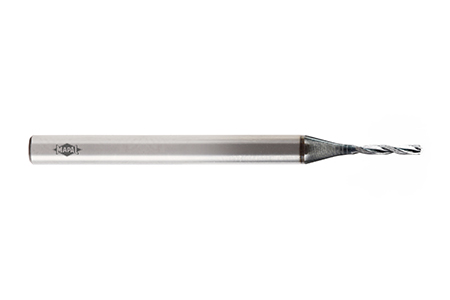

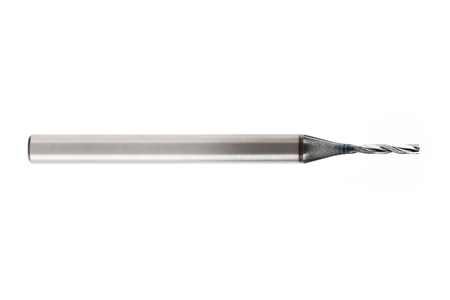

MICRO-Drill-Steel
The two-edged solid carbide drill MICRO-Drill-Steel is a specially designed drill for the precise machining of steel in the micro-range. It is distinguished by four lead edges and a micro-geometry tailored to steel. The flute design with core taper ensures optimal chip removal, even with tough steel materials. Highest performance and tool life are guaranteed thanks to a new cutting material combination.
Selected facets:
- 5xD Drilling depth xD
- 10.0 Shank diameter (d2)
- 25.0 Drilling depth xD
- 3.0 Shank diameter (d2)
- 4xD Drilling depth xD
- MICRO-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Shank diameter (d2)
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(18)
(18)
(18)-
MICRO-Drill-Steel
d1: 2,8 mm; d2: 3 mm; l1: 55 mm; l2: 21 mm; l3: 14 mm; z: 2; internal cooling;SCD371-0280-2-4-142HA05-HP246
Order number: 31238903
In Stock -
MICRO-Drill-Steel
d1: 2,9 mm; d2: 3 mm; l1: 55 mm; l2: 21,750 mm; l3: 14,5 mm; z: 2; internal cooling;SCD371-0290-2-4-142HA05-HP246
Order number: 31238904
In Stock -
MICRO-Drill-Steel
d1: 1,7 mm; d2: 3 mm; l1: 50 mm; l2: 12,750 mm; l3: 8,5 mm; z: 2; internal cooling;SCD371-0170-2-4-142HA05-HP246
Order number: 31238892
currently out of stockInform me when article is back in stock
