Tritan-Spot-Drill-Steel

Durchmesser d1 (mm)

16.0

Your unit price

*Login erforderlich

Article

30980595

Quantity

Added to Your Shopping Cart

Zum Downloadbereich

Product description

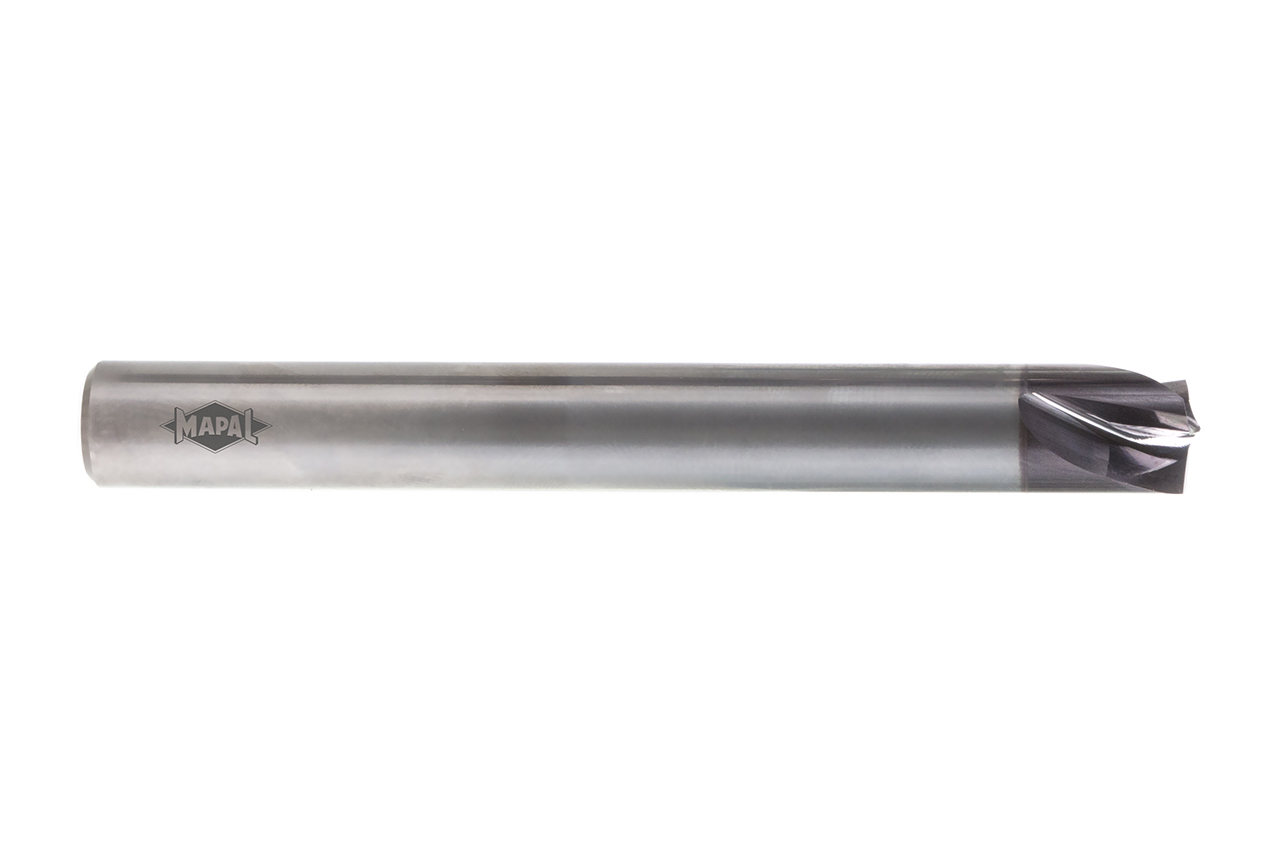

The three-edged Tritan-Spot-Drill-Steel pilot drill was specifically developed as a centering drill for three-edged carbide drills. This pilot drill prevents oscillations and thus ensures optimal positioning. Its self-centering properties enable process-secure drilling even in challenging drilling situations.

Material suitability

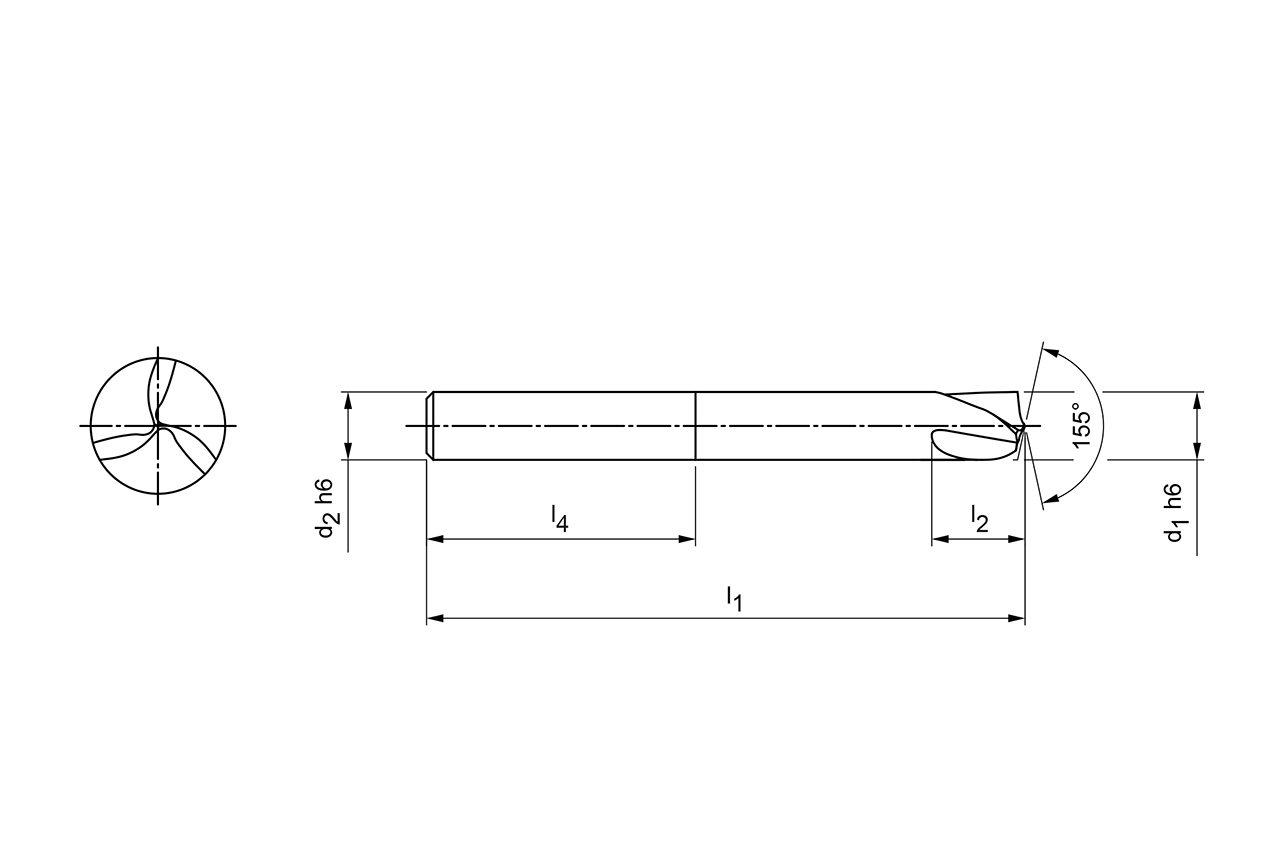

Technical specifications

Schneidstoff: HP358
Produktklasse: Expert-Line
d1: 16 mm
d2: 16 mm
l1: 115 mm
l2: 23 mm
l4: 48 mm
Kühlmittelaustritt: externe Kühlmittelzufuhr
Anzahl Schneiden (z): 3
Schafttoleranz: h6
Schaftform: HA
Spitzenwinkel: 155 °
Materialgruppe: R8
Spezifikation: SCD670-1600-3-155HAX-HP358

Downloads

Cutting data recommendations: 30980595_Tritan-Spot-Drill-Steel_EN.pdf
