Tritan-Drill-Uni-Plus

Durchmesser d1 (mm)

4.6

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31037401

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

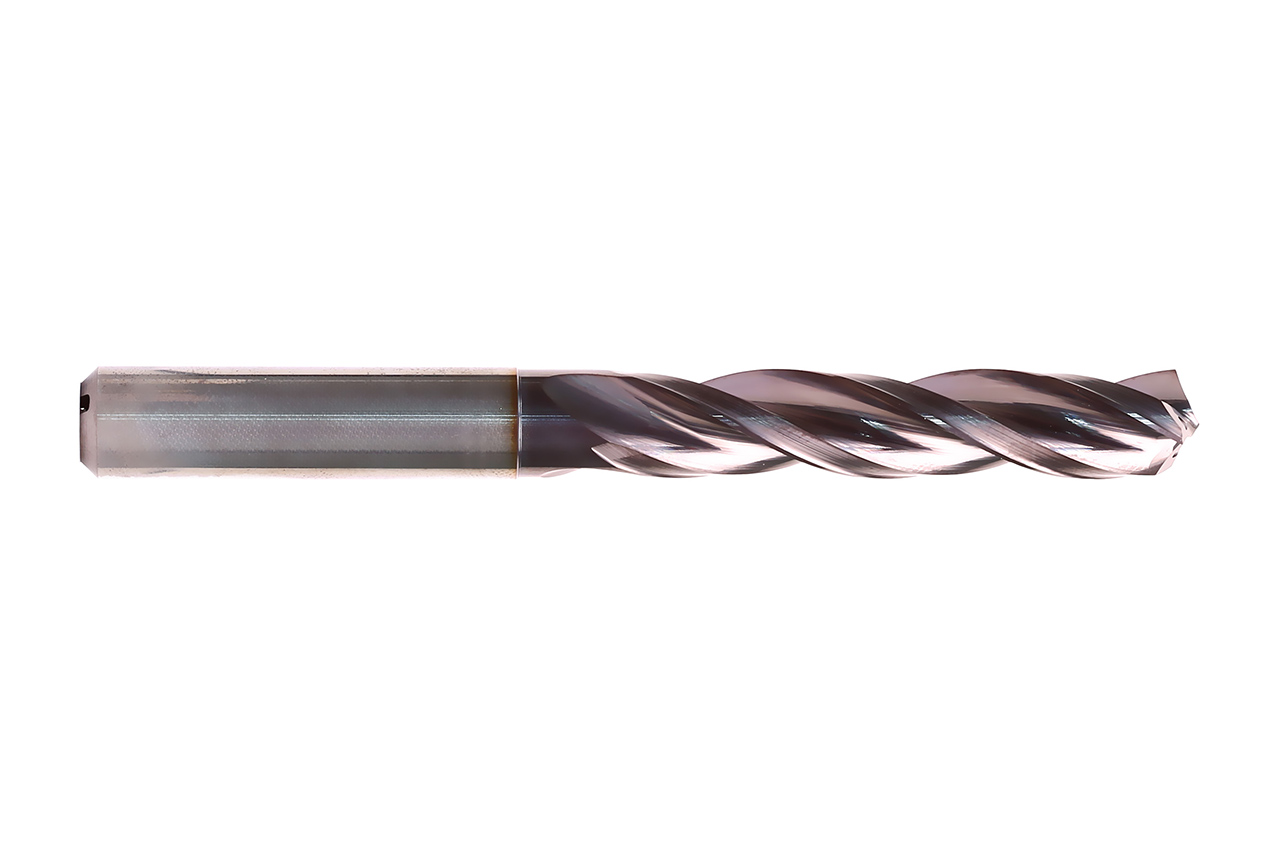

MAPAL has developed the Tritan-Drill-Uni-Plus specifically for high-speed machining of steel, stainless steel, cast iron, and aluminum. This three-edged solid carbide drill features an optimized groove profile. Thanks to its innovative coating and finely ground chip flutes, the Tritan-Drill-Uni-Plus offers higher wear resistance and ensures optimal chip removal with short chips even at the highest feed rates.

Materialeignung

Technische Daten

Schneidstoff
HP358
Produktklasse
Expert-Line
Bohrtiefe
8xD

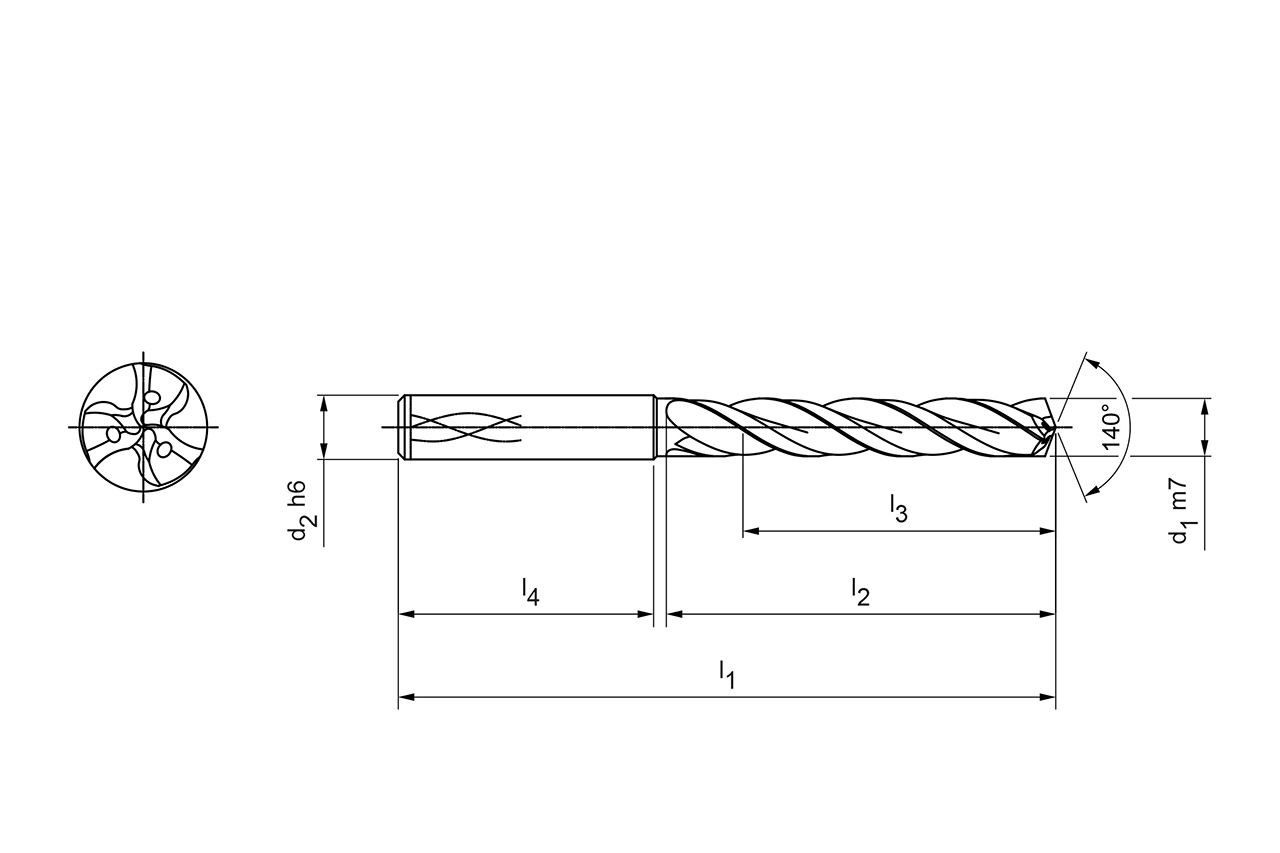

d1
4.6   mm
d2
6   mm
l1
81   mm
l2
43   mm
l3
36   mm
l4
36   mm
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
3
Schafttoleranz
h6
Bohrungstoleranz
≥ IT 9
Schaftform
HA
Spitzenwinkel
135   °
Seitenspanwinkel
30   °
Materialgruppe
R8
Spezifikation
SCD631-0460-3-3-135HA08-HP358

Downloads

Technische Zeichnung in dxf
31037401_607765206-000-00-ED1-MM.DXF
Technische Zeichnung in pdf
31037401_607765206-000-00-ED1-MM.PDF
Technische Zeichnung in tif
31037401_607765206-000-00-ED1-MM.TIF
Technische Zeichnung in tif
31037401_607765206-000-00-ED1.TIF
Technische Zeichnung in dxf
31037401_607765206-000-00-ED1.DXF
Technische Zeichnung in pdf
31037401_607765206-000-00-ED1.PDF
3D Hüllkontur in stp
31037401_607765207-000-00-E43.STP
DIN 4000 XML in xml
31037401_607790408-000-00-E40.XML
