Tritan-Drill-Uni-Plus
Durchmesser d1 (mm)
6.0
Your unit price
*Login erforderlichProduct description

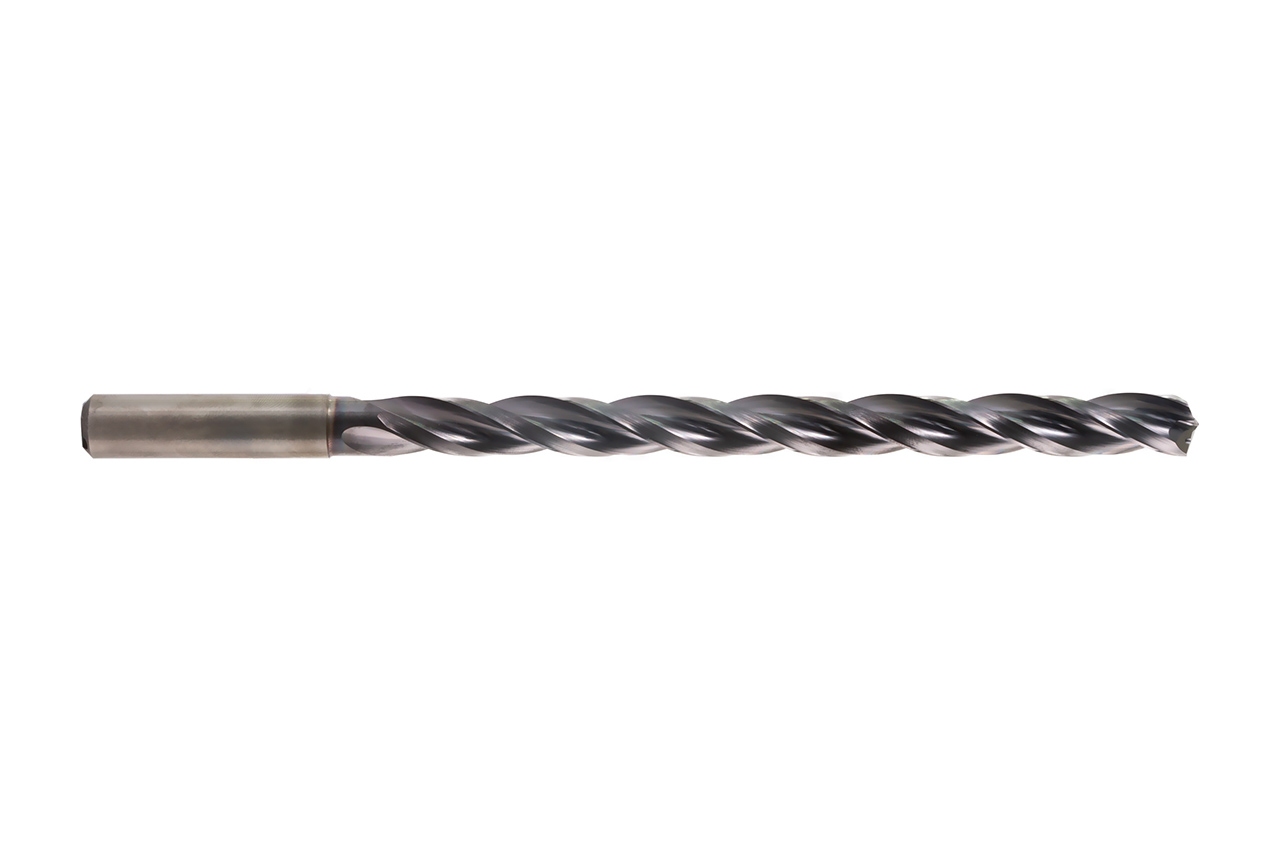

MAPAL has developed the Tritan-Drill-Uni-Plus specifically for high-speed machining of steel, stainless steel, cast iron, and aluminum. This three-edged solid carbide drill features an optimized groove profile. Thanks to its innovative coating and finely ground chip flutes, the Tritan-Drill-Uni-Plus offers higher wear resistance and ensures optimal chip removal with short chips even at the highest feed rates.
Technical specifications
- Schneidstoff
- HP358
- Produktklasse
- Expert-Line
- Bohrtiefe
- 12xD

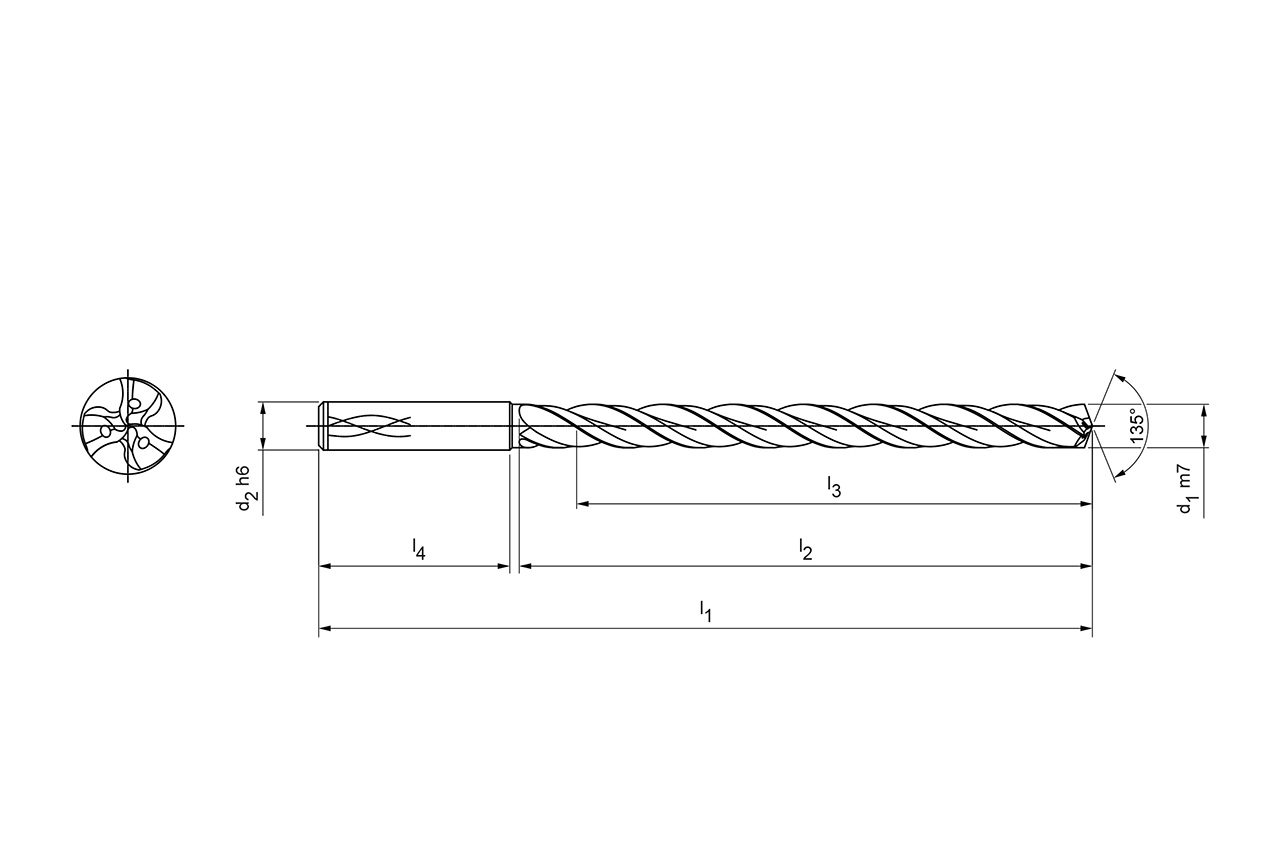

- d1
- 6 mm
- d2
- 6 mm
- l1
- 116 mm
- l2
- 78 mm
- l3
- 70 mm
- l4
- 36 mm
- Kühlmittelaustritt
- innere Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 3
- Schafttoleranz
- h6
- Bohrungstoleranz
- ≥ IT 9
- Schaftform
- HA
- Spitzenwinkel
- 135 °
- Seitenspanwinkel
- 30 °
- Materialgruppe
- R8
- Spezifikation
- SCD631-0600-3-3-135HA12-HP358
Downloads
- Technische Zeichnung in dxf
- 31035377_607764565-000-00-ED1-MM.DXF
- Technische Zeichnung in pdf
- 31035377_607764565-000-00-ED1-MM.PDF
- Technische Zeichnung in tif
- 31035377_607764565-000-00-ED1-MM.TIF
- Technische Zeichnung in tif
- 31035377_607764565-000-00-ED1.TIF
- Technische Zeichnung in dxf
- 31035377_607764565-000-00-ED1.DXF
- Technische Zeichnung in pdf
- 31035377_607764565-000-00-ED1.PDF
- 3D Hüllkontur in stp
- 31035377_607764567-000-00-E43.STP
- DIN 4000 XML in xml
- 31035377_607790090-000-00-E40.XML
