Tritan-Drill-Uni-Plus
Diameter d1 (mm)
4.3
Your unit price
*Login requiredProduct description

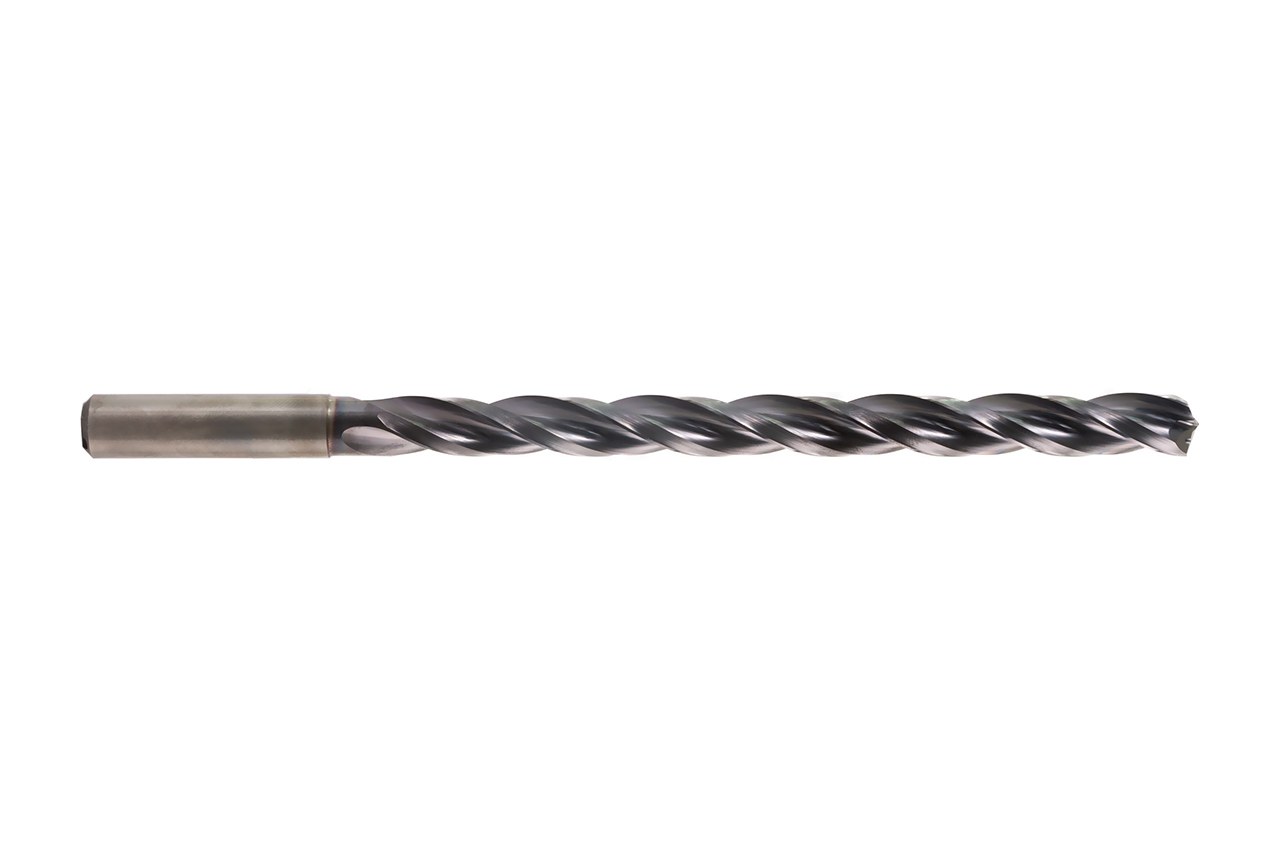

MAPAL has developed the Tritan-Drill-Uni-Plus specifically for high-speed machining of steel, stainless steel, cast iron, and aluminum. This three-edged solid carbide drill features an optimized groove profile. Thanks to its innovative coating and finely ground chip flutes, the Tritan-Drill-Uni-Plus offers higher wear resistance and ensures optimal chip removal with short chips even at the highest feed rates.

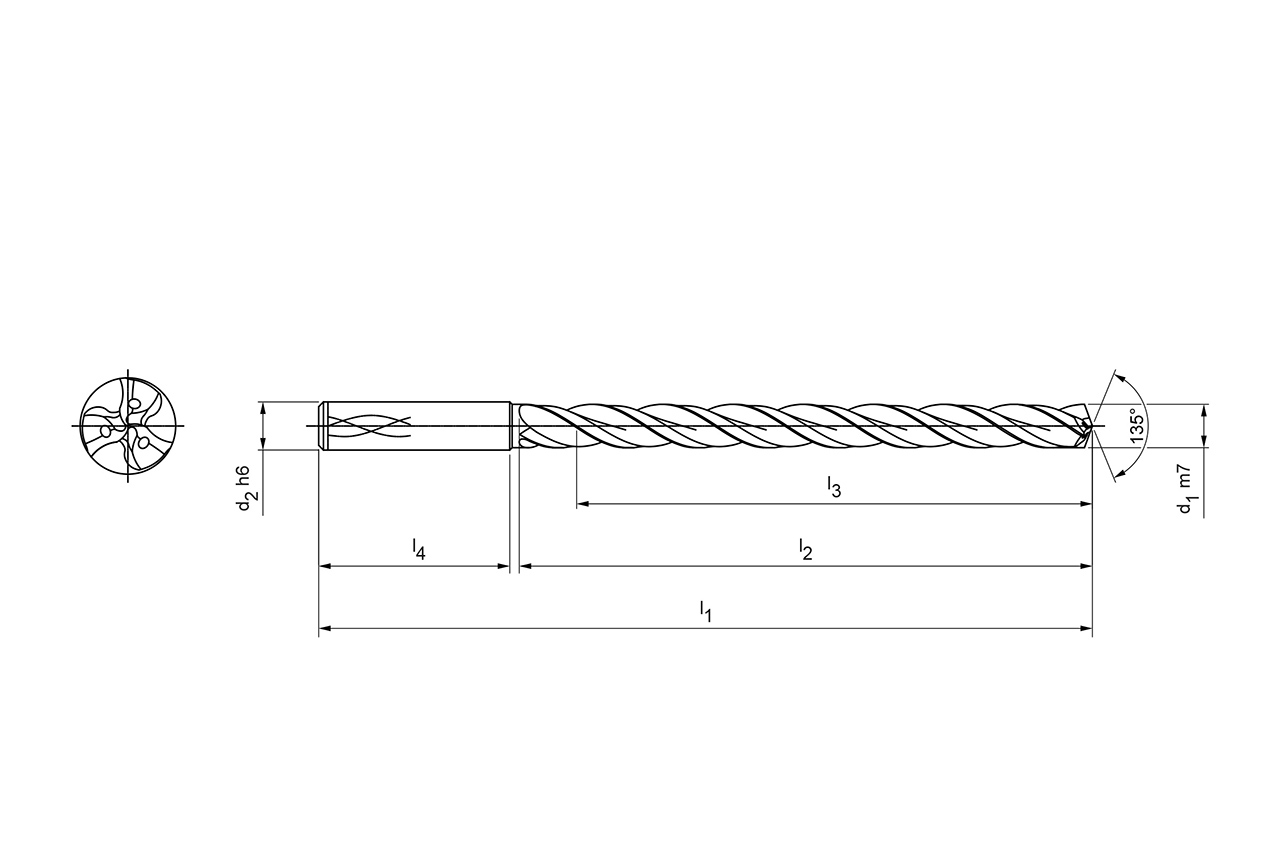

Technical specifications
- Cutting material
- HP358
- Drilling depth
- 12xD
- d1
- 4.3 mm
- d2
- 6 mm
- l1
- 102 mm
- l2
- 64 mm
- l3
- 58 mm
- l4
- 36 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 3
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 135 °
- Side rake angle
- 30 °
- Material group
- 51
Downloads
- Technical drawing in dxf
- 31035360_607764498-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 31035360_607764498-000-00-ED1-MM.PDF
- Technical drawing in tif
- 31035360_607764498-000-00-ED1-MM.TIF
- Technical drawing in tif
- 31035360_607764498-000-00-ED1.TIF
- Technical drawing in dxf
- 31035360_607764498-000-00-ED1.DXF
- Technical drawing in pdf
- 31035360_607764498-000-00-ED1.PDF
- 3D envelope in stp
- 31035360_607764499-000-00-E43.STP
- DIN 4000 XML in xml
- 31035360_607790073-000-00-E40.XML
