Tritan-Drill-Steel
Diameter d1 (mm)
15.8
Your unit price
*Login requiredWe recommend:
Product description

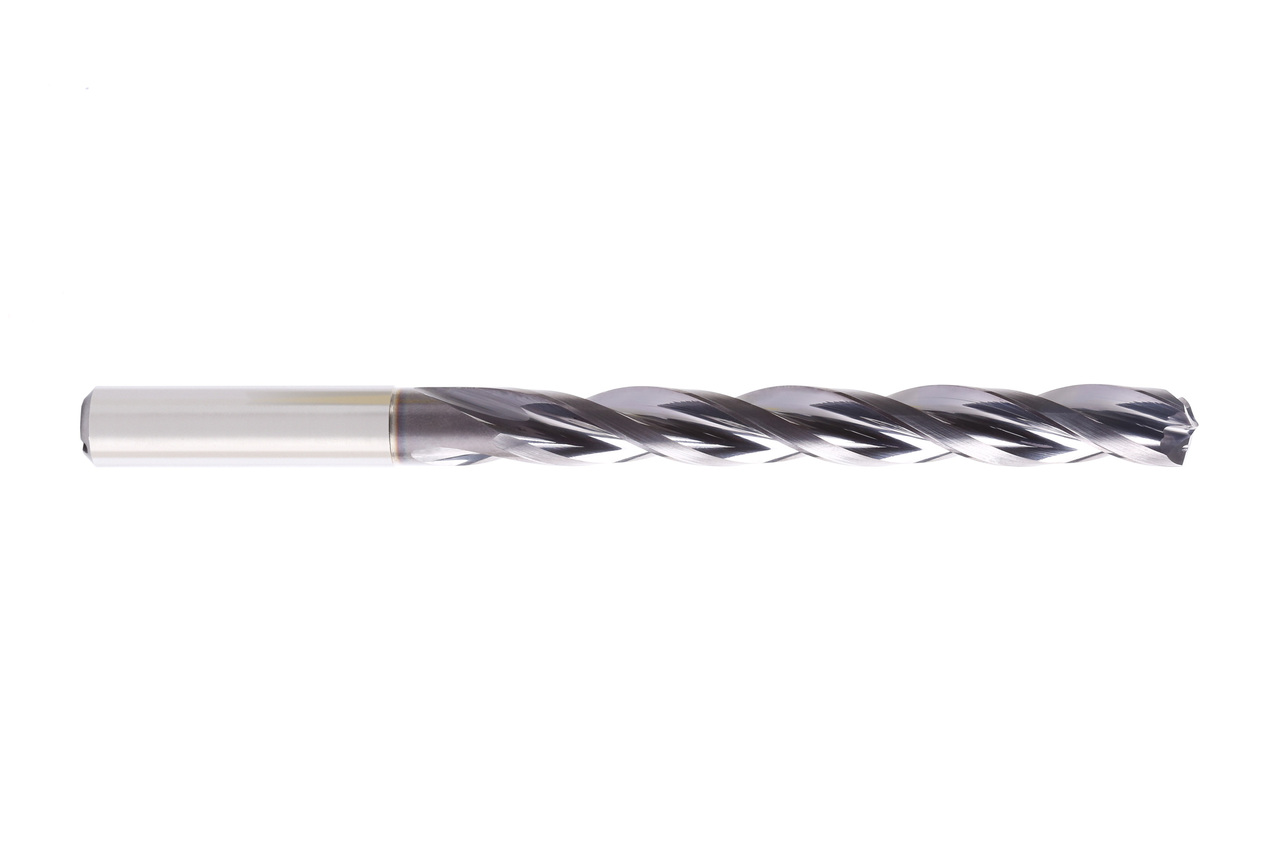

The three-fluted solid carbide drill Tritan-Drill-Steel offers very high efficiency due to high feed rates with a long tool life. It is characterised by a self-centring cross cutting edge and is particularly suitable for difficult spot drilling situations.
Technical specifications
- Cutting material
- HP358
- Product class
- Performance-Line
- Drilling depth
- 8xD

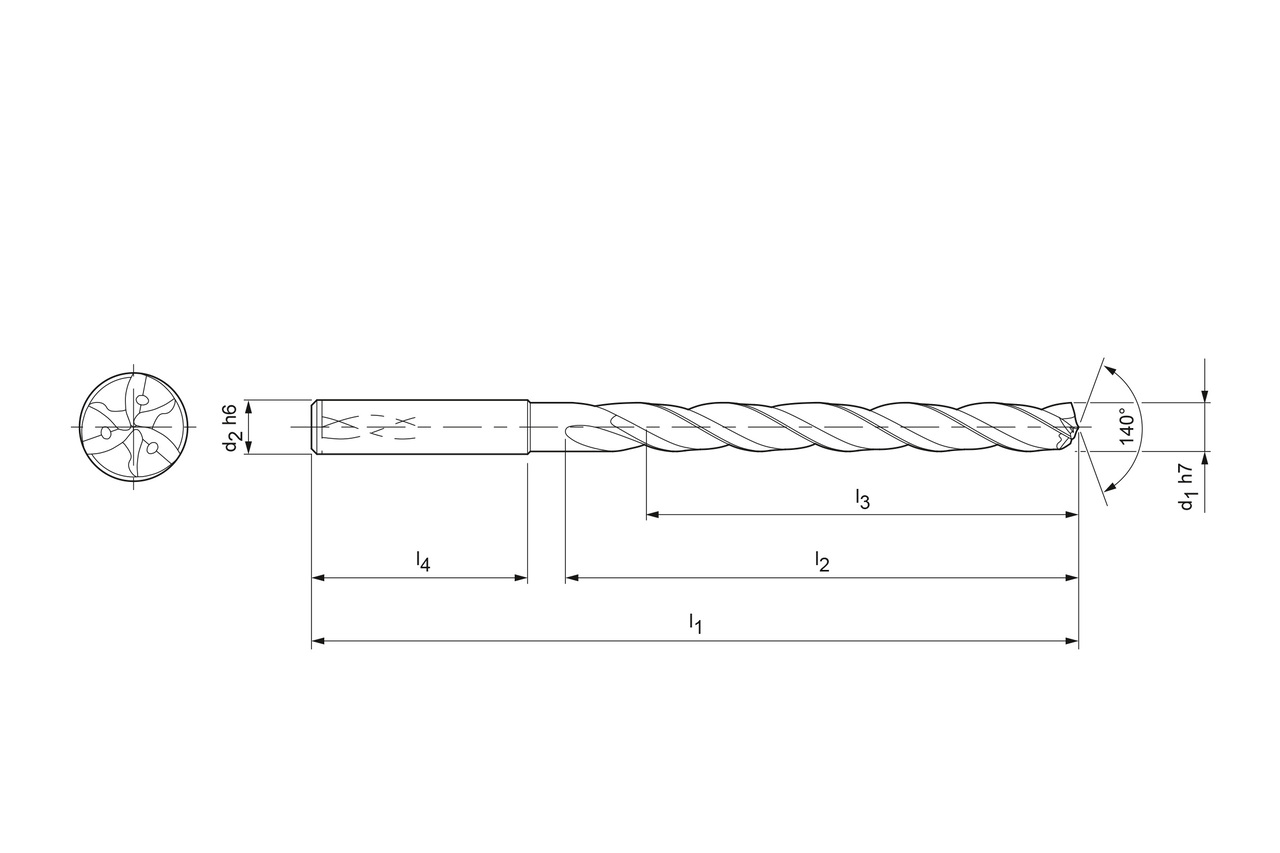

- d1
- 15.8 mm
- d2
- 16 mm
- l1
- 203 mm
- l2
- 152 mm
- l3
- 128 mm
- l4
- 48 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 3
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 140 °
- Side rake angle
- 30 °
- Material group
- R8
Downloads
- Technical drawing in dxf
- 30902367_607761155-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 30902367_607761155-000-00-ED1-MM.PDF
- Technical drawing in tif
- 30902367_607761155-000-00-ED1-MM.TIF
- Technical drawing in tif
- 30902367_607761155-000-00-ED1.TIF
- Technical drawing in dxf
- 30902367_607761155-000-00-ED1.DXF
- Technical drawing in pdf
- 30902367_607761155-000-00-ED1.PDF
- 3D envelope in stp
- 30902367_607761158-000-00-E43.STP
- DIN 4000 XML in xml
- 30902367_607789365-000-00-E40.XML
- Cutting data recommendations
- 30902367_Tritan-Drill-Steel_EN.pdf
