Tritan-Drill-Steel
Diameter d1 (mm)
5.9
Your unit price
*Login requiredUnsere Produktempfehlung:
Product description

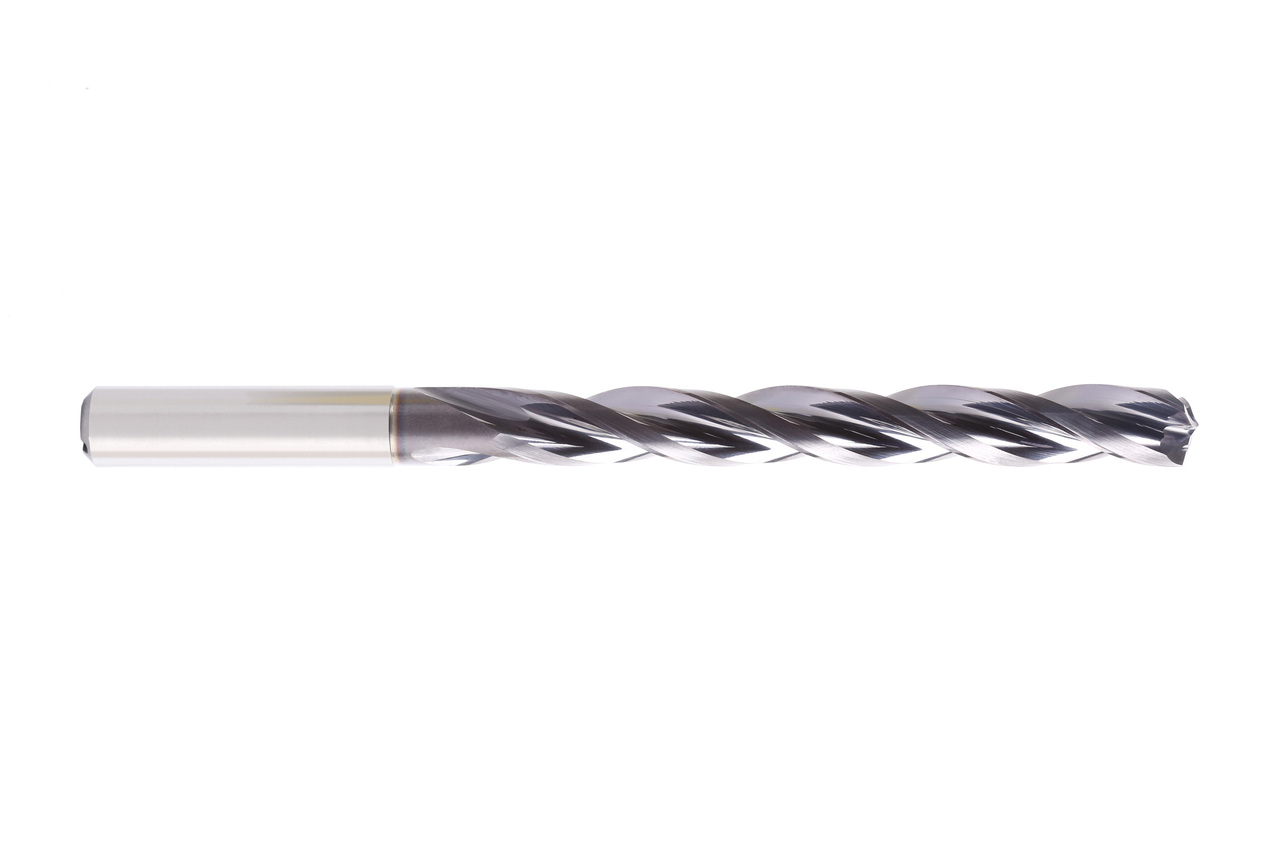

The three-fluted solid carbide drill Tritan-Drill-Steel offers very high efficiency due to high feed rates with a long tool life. It is characterised by a self-centring cross cutting edge and is particularly suitable for difficult spot drilling situations.
Material suitability
P
P1
P2
P3
P4
P5
P6
M
M1
M2
M3
K
K1
K2
K3
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3
Technical specifications
- Schneidstoff
- HP358
- Produktklasse
- Performance-Line
- Bohrtiefe
- 8xD

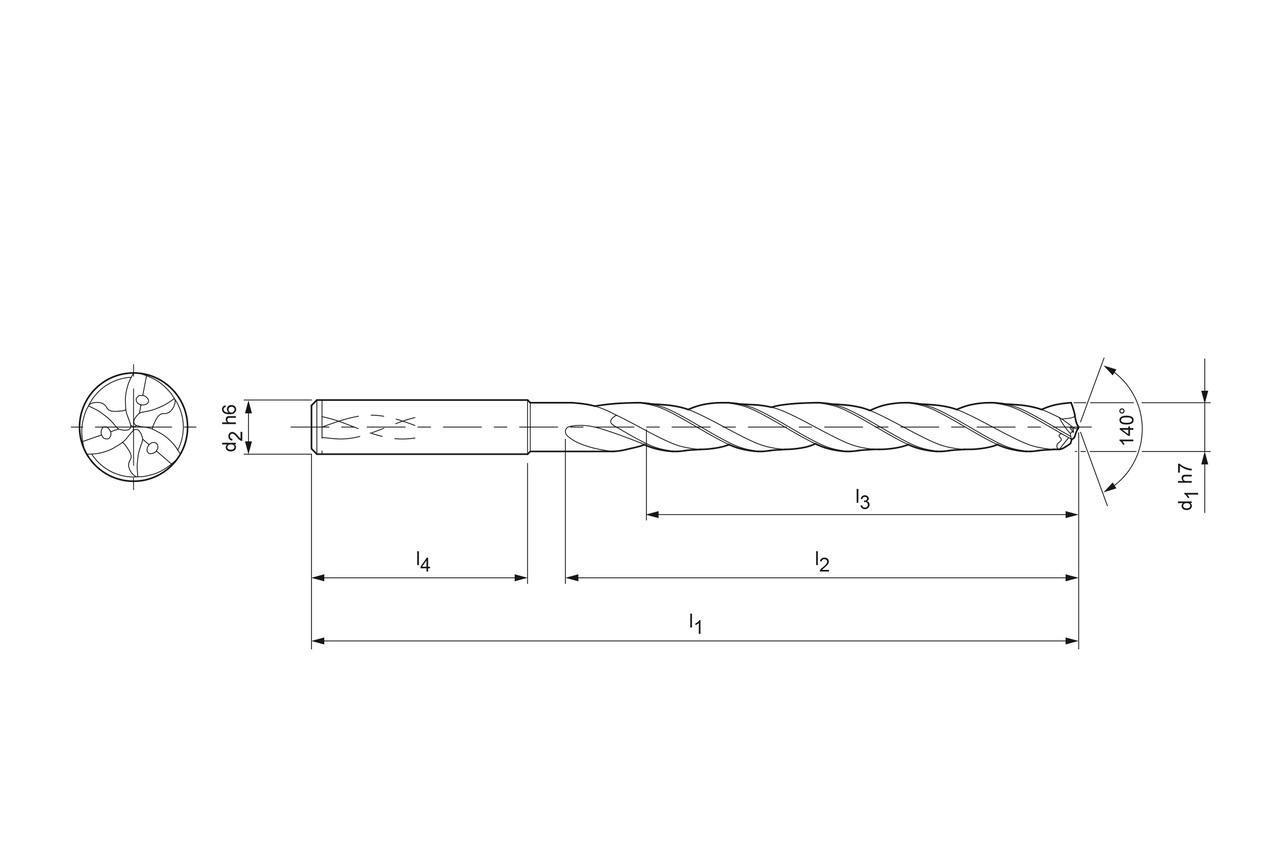

- d1
- 5.9 mm
- d2
- 6 mm
- l1
- 95 mm
- l2
- 57 mm
- l3
- 48 mm
- l4
- 36 mm
- Kühlmittelaustritt
- innere Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 3
- Schafttoleranz
- h6
- Bohrungstoleranz
- ≥ IT 9
- Schaftform
- HA
- Spitzenwinkel
- 140 °
- Seitenspanwinkel
- 30 °
- Materialgruppe
- R8
Downloads
- Technische Zeichnung in dxf
- 30902291_607760507-000-00-ED1-MM.DXF
- Technische Zeichnung in pdf
- 30902291_607760507-000-00-ED1-MM.PDF
- Technische Zeichnung in tif
- 30902291_607760507-000-00-ED1-MM.TIF
- Technische Zeichnung in tif
- 30902291_607760507-000-00-ED1.TIF
- Technische Zeichnung in dxf
- 30902291_607760507-000-00-ED1.DXF
- Technische Zeichnung in pdf
- 30902291_607760507-000-00-ED1.PDF
- 3D Hüllkontur in stp
- 30902291_607760511-000-00-E43.STP
- DIN 4000 XML in xml
- 30902291_607789289-000-00-E40.XML
- Cutting data recommendations
- 30902291_Tritan-Drill-Steel_MEGA-Speed-Drill-Steel_Schnittwertempfehlung.pdf
- Technical drawing in tif
- 30902291_607760507-000-00-ED1-MM.tif
- Cutting data recommendations
- 30902291_Tritan-Drill-Steel_EN.pdf
