Tritan-Drill-Steel

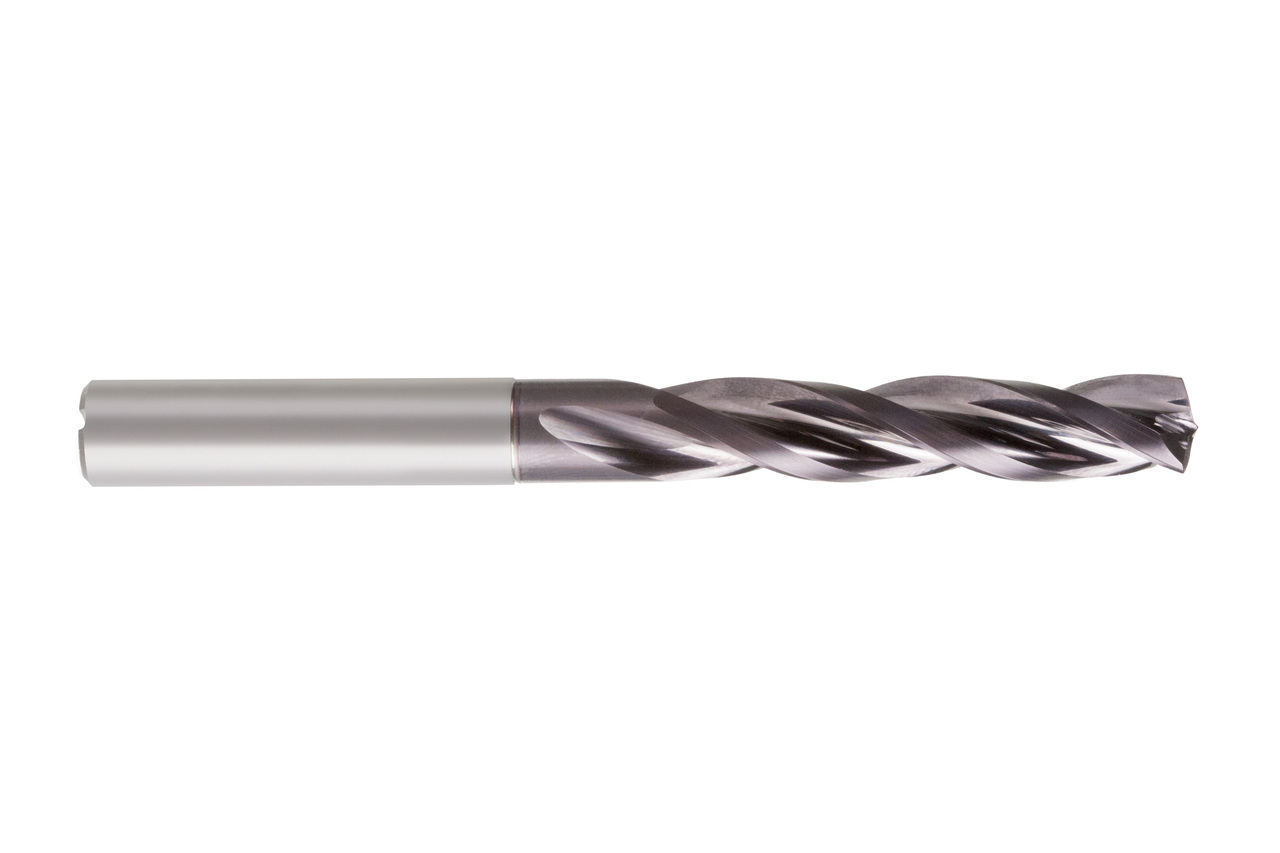

  • Product image Tritan-Drill-Steel

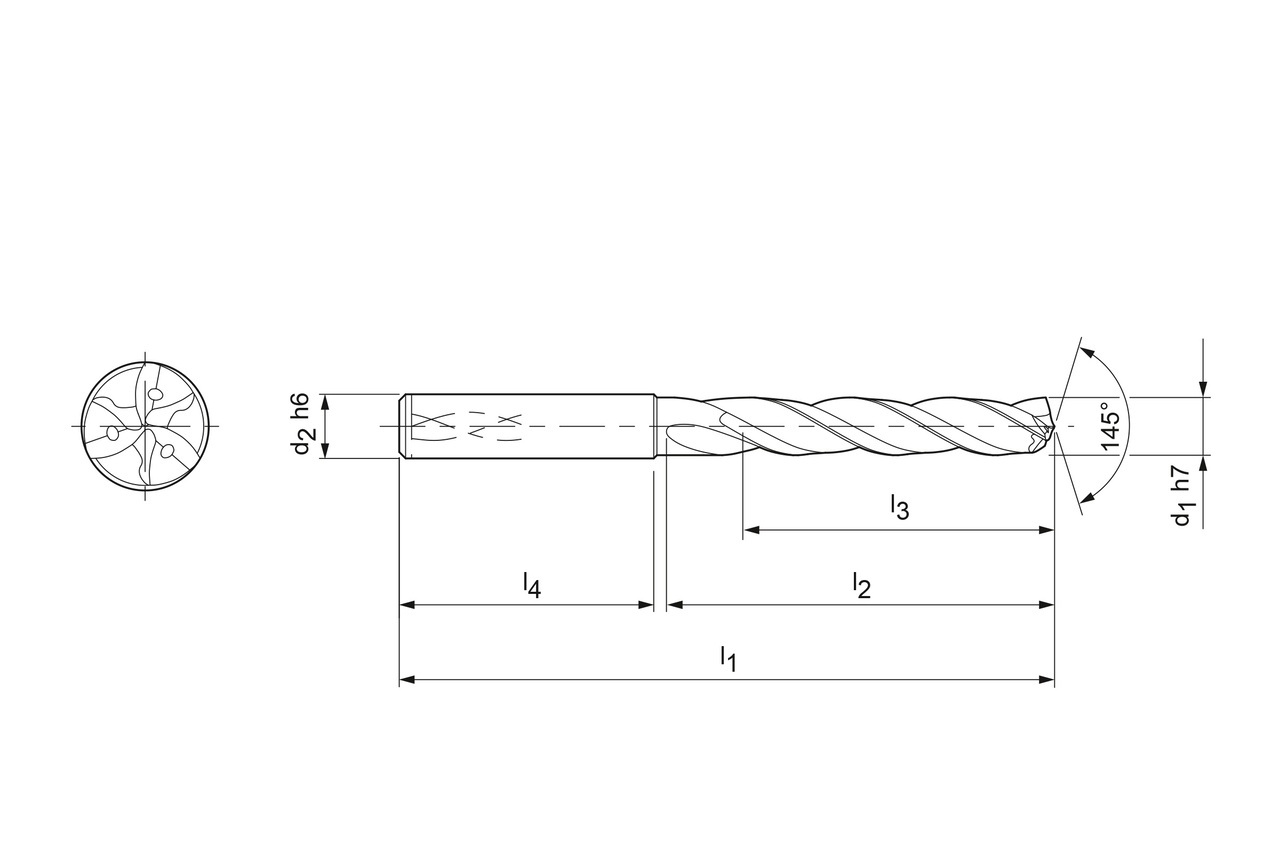

  • Technical drawing Tritan-Drill-Steel

Durchmesser d1 (mm)

10.1

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30902218

Menge

Ihrem Warenkorb hinzugefügt

Unsere Produktempfehlung:

Produktbeschreibung

The three-fluted solid carbide drill Tritan-Drill-Steel offers very high efficiency due to high feed rates with a long tool life. It is characterised by a self-centring cross cutting edge and is particularly suitable for difficult spot drilling situations.

Materialeignung

P
P1
bestens geeignet
P2
bestens geeignet
P3
bestens geeignet
P4
bestens geeignet
P5
bestens geeignet
P6
bestens geeignet
M
M1
geeignet
M2
geeignet
M3
geeignet
K
K1
geeignet
K2
geeignet
K3
geeignet
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3

Technische Daten

Schneidstoff
HP358
Produktklasse
Performance-Line
Bohrtiefe
5xD
d1
10.1   mm
d2
12   mm
l1
118   mm
l2
71   mm
l3
56   mm
l4
45   mm
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
3
Schafttoleranz
h6
Bohrungstoleranz
≥ IT 9
Schaftform
HA
Spitzenwinkel
145   °
Seitenspanwinkel
30   °
Materialgruppe
R8
