Tritan-Drill-Steel
Diameter d1 (mm)
4.0
Your unit price
*Login requiredWe recommend:
Product description

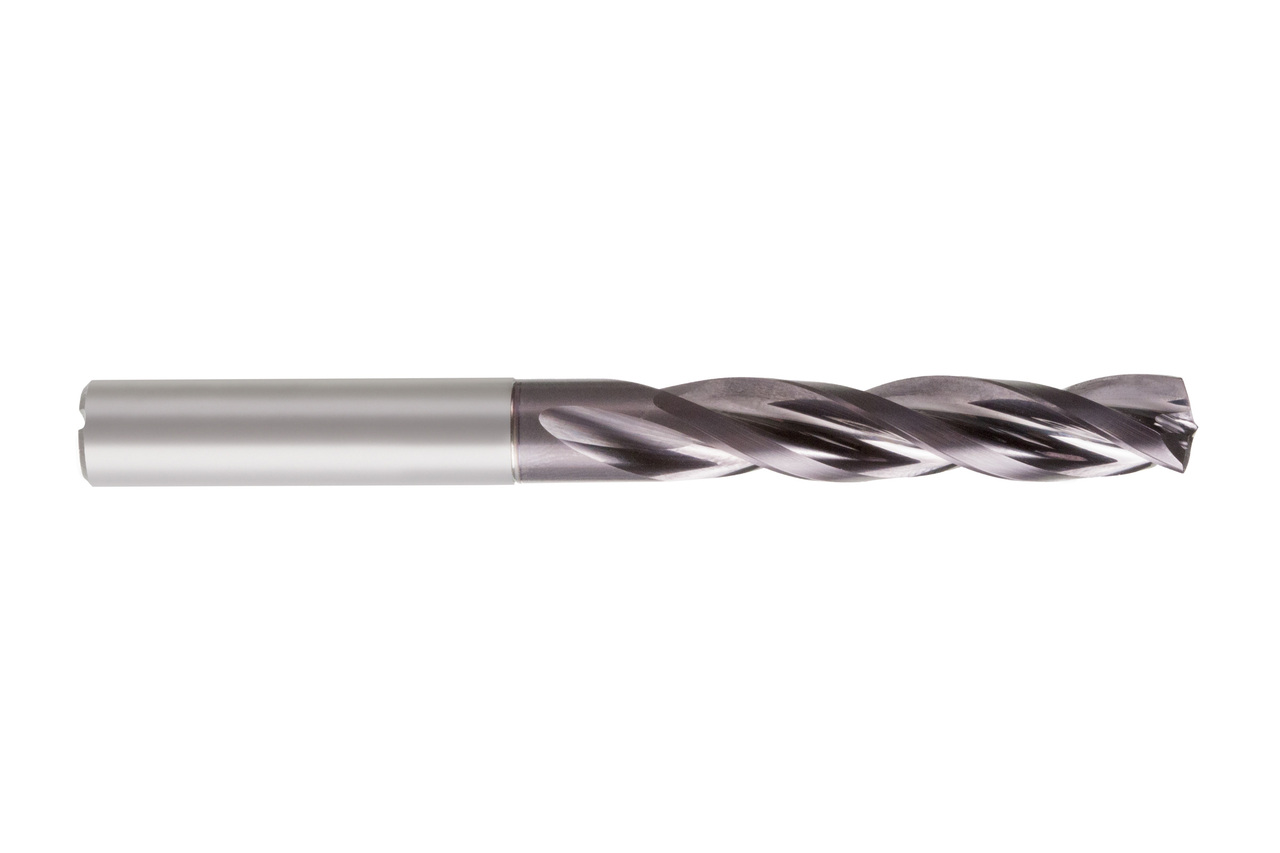

The three-fluted solid carbide drill Tritan-Drill-Steel offers very high efficiency due to high feed rates with a long tool life. It is characterised by a self-centring cross cutting edge and is particularly suitable for difficult spot drilling situations.
Technical specifications
- Cutting material
- HP358
- Product class
- Performance-Line
- Drilling depth
- 5xD

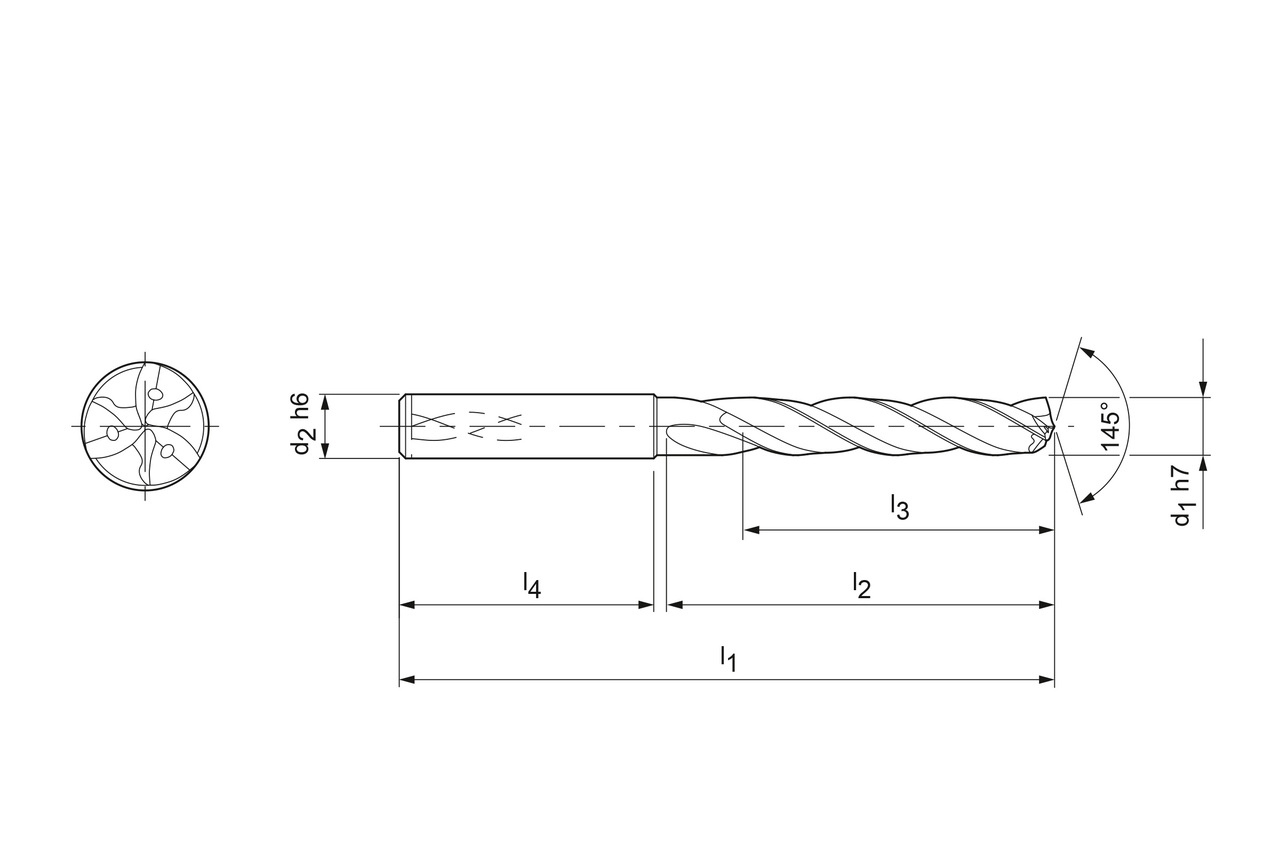

- d1
- 4 mm
- d2
- 6 mm
- l1
- 74 mm
- l2
- 36 mm
- l3
- 29 mm
- l4
- 36 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 3
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 145 °
- Side rake angle
- 30 °
- Material group
- R8
Downloads
- Technical drawing in dxf
- 30902152_607759202-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 30902152_607759202-000-00-ED1-MM.PDF
- Technical drawing in tif
- 30902152_607759202-000-00-ED1-MM.TIF
- Technical drawing in tif
- 30902152_607759202-000-00-ED1.TIF
- Technical drawing in dxf
- 30902152_607759202-000-00-ED1.DXF
- Technical drawing in pdf
- 30902152_607759202-000-00-ED1.PDF
- 3D envelope in stp
- 30902152_607759203-000-00-E43.STP
- DIN 4000 XML in xml
- 30902152_607789147-000-00-E40.XML
- Cutting data recommendations
- 30902152_Tritan-Drill-Steel_EN.pdf
