Tritan-Drill-Reamer

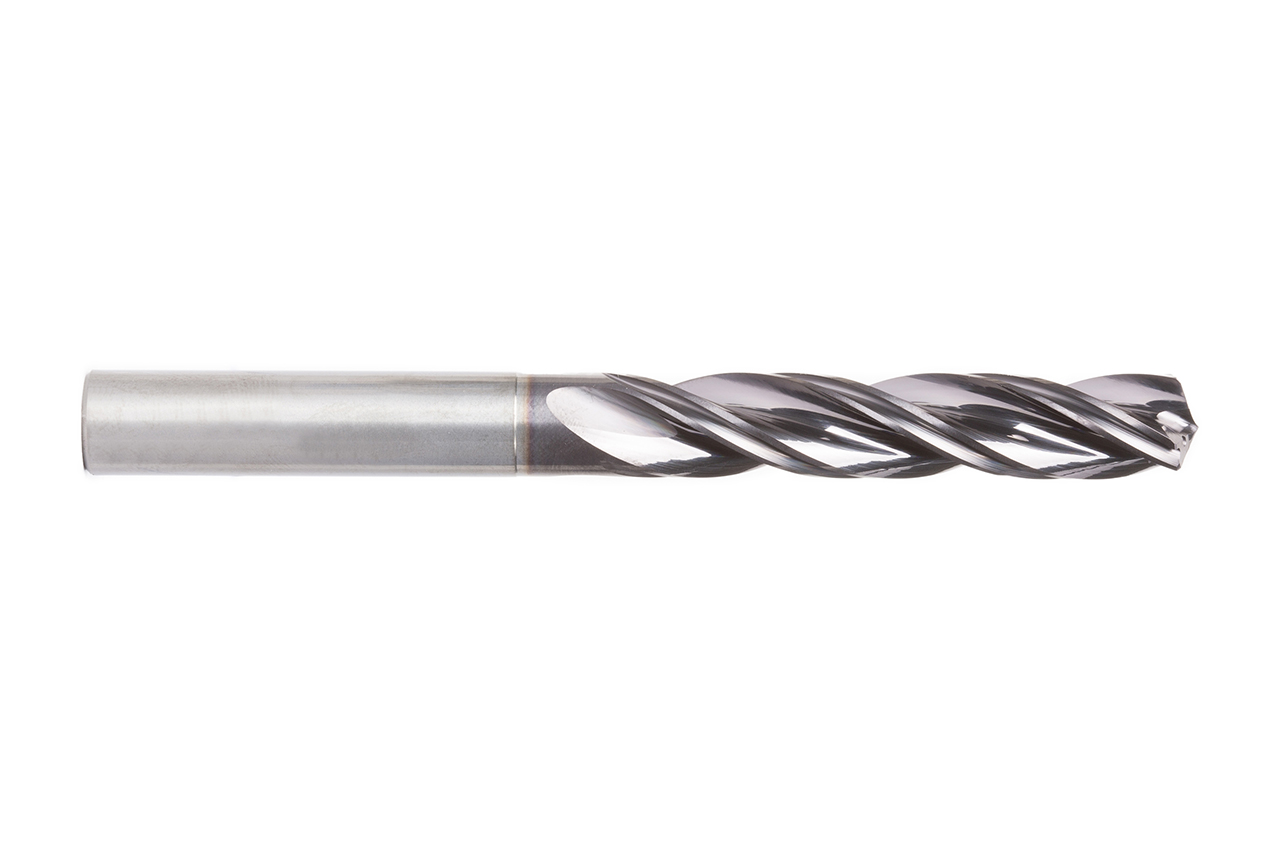

  • Product image Tritan-Drill-Reamer

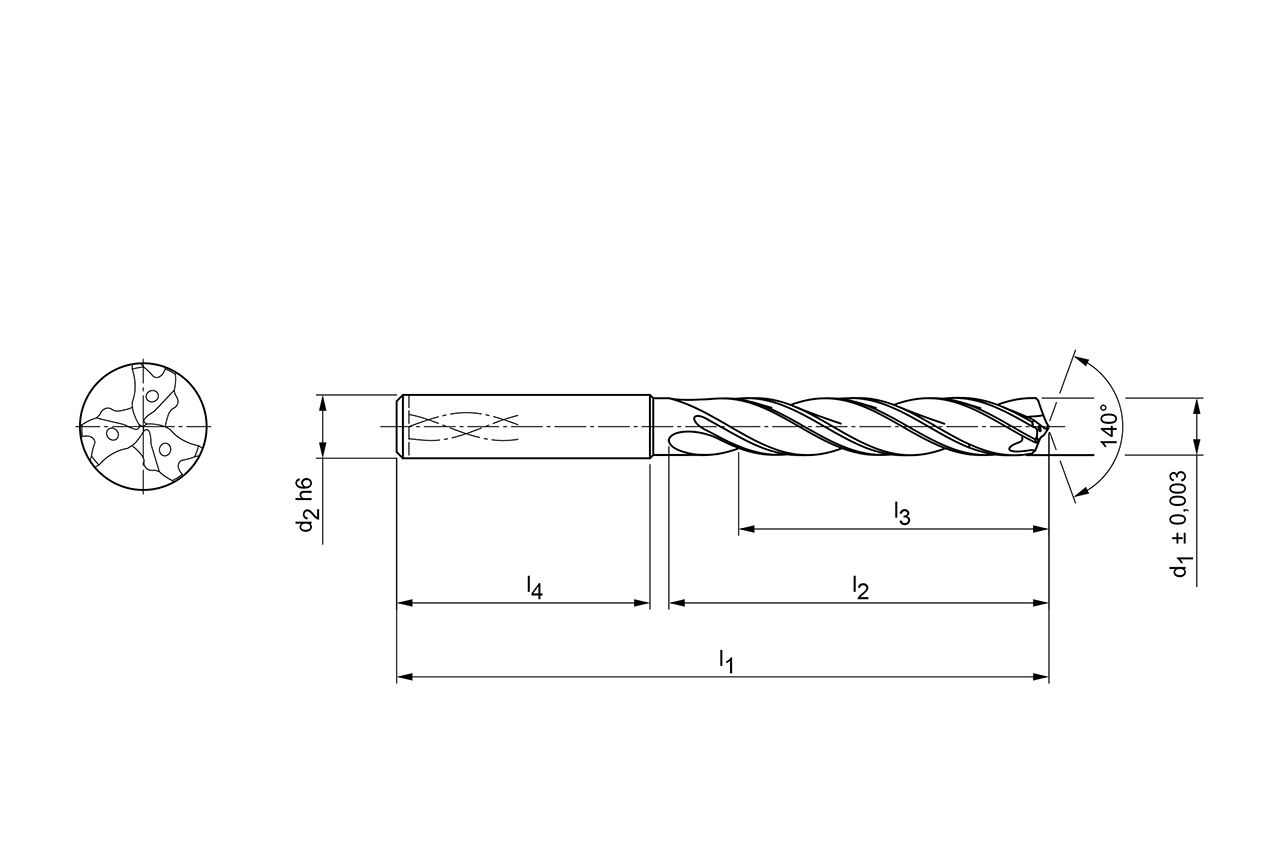

  • Produktzeichnung Tritan-Drill-Reamer

Durchmesser d1 (mm)

6.01

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31196653

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The three-edged Tritan-Drill-Reamer has been specifically developed to produce precision fitting bores with a single tool. This drilling reamer combines drilling and reaming in one step and offers six guide facets for excellent guiding properties as well as finely ground chip flutes for efficient chip removal. With a self-centering cross-cutting edge, the Tritan-Drill-Reamer ensures good positional accuracy and improved drilling behavior, even in difficult drilling situations.

Materialeignung

Technische Daten

Schneidstoff
HP358
Produktklasse
Expert-Line
Bohrtiefe
5xD
d1
6.01   mm
d2
6   mm
l1
82   mm
l2
44   mm
l3
35   mm
l4
36   mm
Cooling
internal cooling
Number of cutting edges (z)
3
Shank tolerance
h6
Bore tolerance
≥ IT 7
Shank type
HA
Tip angle
140   °
Side rake angle
30   °
Material group
MQ
Specification
SDR301G-6.010+3-3-HA05-HP358

Downloads

Technische Zeichnung in tif
31196653_608104531-000-00-ED1.TIF
Technische Zeichnung in pdf
31196653_608104531-000-00-ED1.PDF
Technische Zeichnung in dxf
31196653_608104531-000-00-ED1.DXF
3D Hüllkontur in stp
31196653_608104532-000-00-E43.STP
Brochure
31196653_Tritan-Drill-Reamer-2024__EN.pdf
Cutting data recommendations
31196653_Tritan-Drill-Reamer_EN.pdf
