Tritan-Drill-Reamer

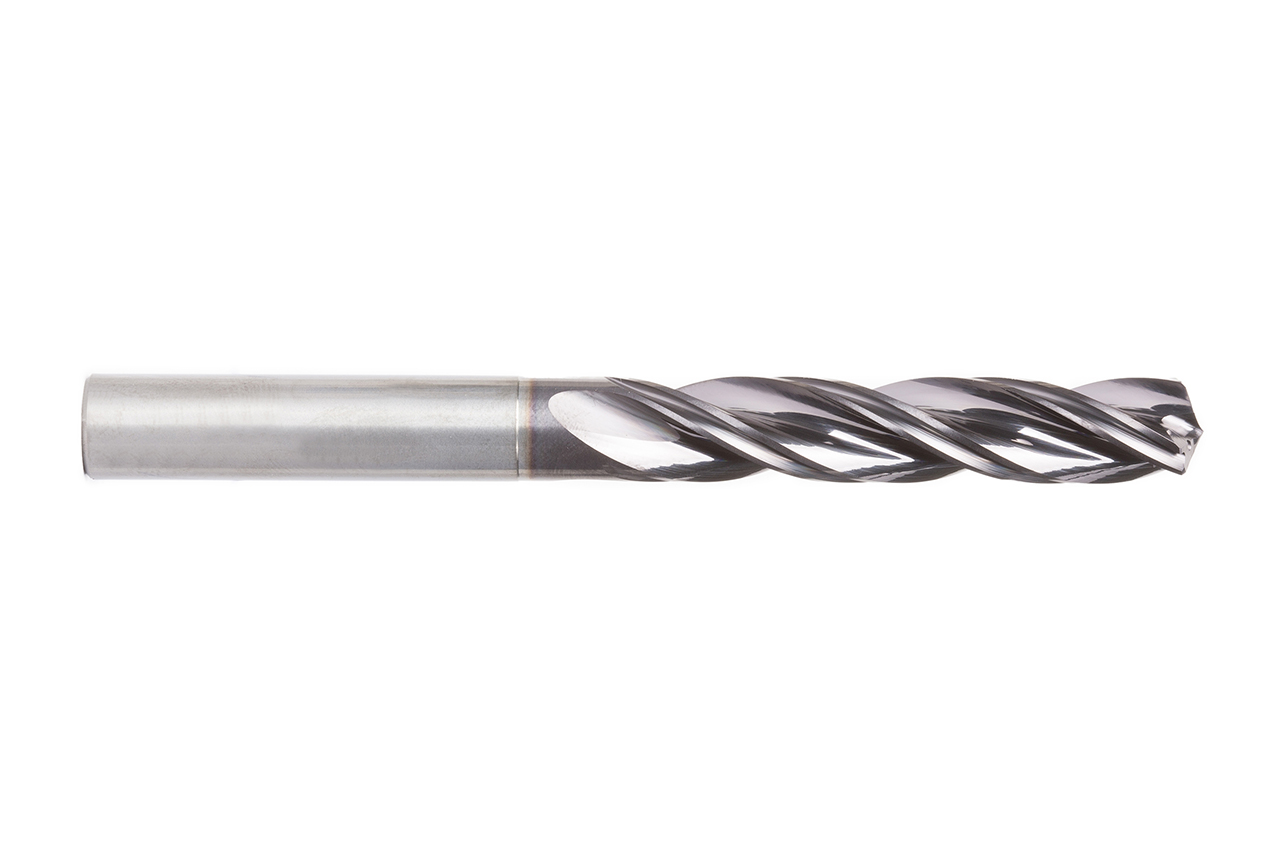

  • Product image Tritan-Drill-Reamer

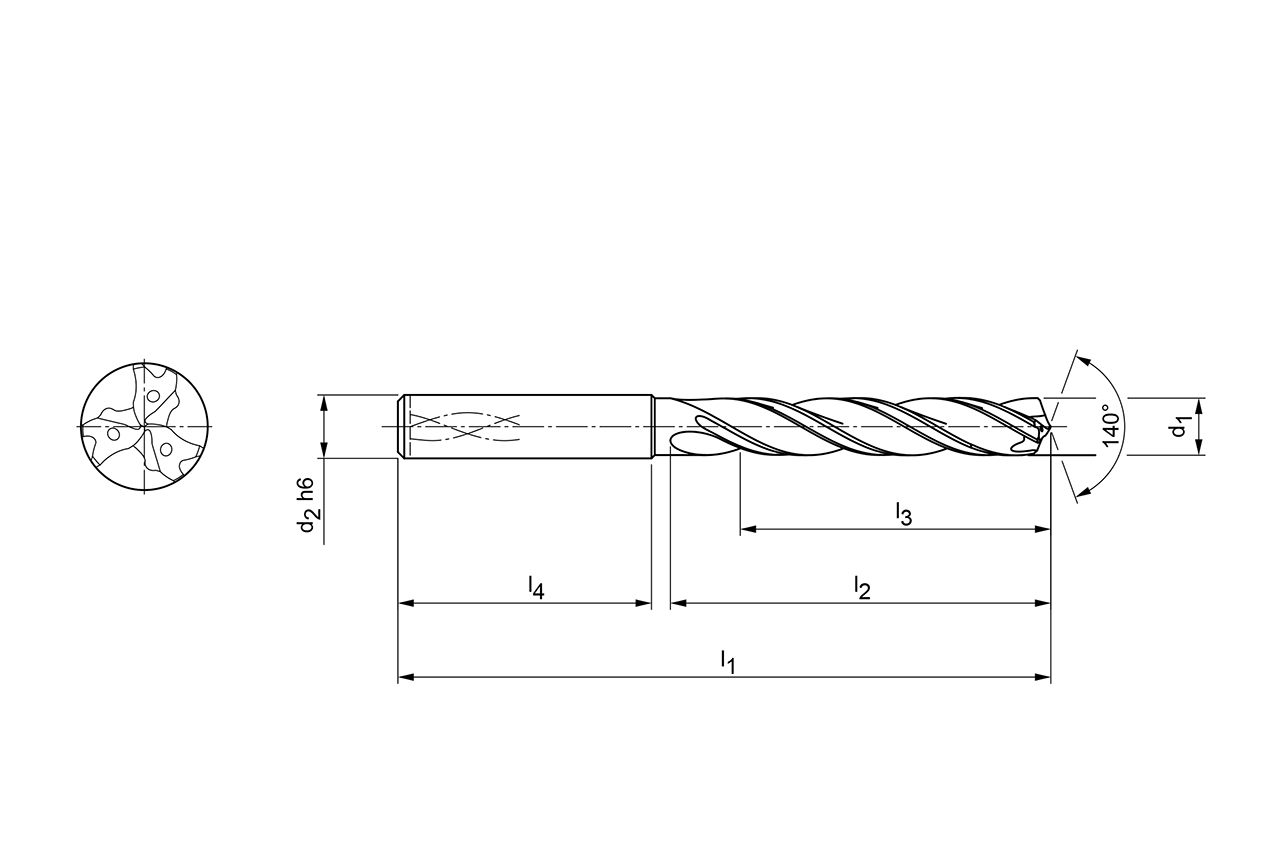

  • Technical drawing Tritan-Drill-Reamer

Diameter d1 (mm)

10.0

Your unit price

*Login required

Article

31196631

Quantity

Added to Your Shopping Cart

Product description

The three-edged Tritan-Drill-Reamer has been specifically developed to produce precision fitting bores with a single tool. This drilling reamer combines drilling and reaming in one step and offers six guide facets for excellent guiding properties as well as finely ground chip flutes for efficient chip removal. With a self-centering cross-cutting edge, the Tritan-Drill-Reamer ensures good positional accuracy and improved drilling behavior, even in difficult drilling situations.

Material suitability

P
P1
bestens geeignet
P2
bestens geeignet
P3
bestens geeignet
P4
P5
bestens geeignet
P6
M
M1
M2
M3
K
K1
bestens geeignet
K2
bestens geeignet
K3
bestens geeignet
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3

Technical specifications

Schneidstoff
HP358
Produktklasse
Expert-Line
Bohrtiefe
5xD
d1
10   mm
d2
10   mm
l1
103   mm
l2
61   mm
l3
49   mm
l4
40   mm
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
3
Schafttoleranz
h6
Bohrungstoleranz
≥ IT 7
Schaftform
HA
Spitzenwinkel
140   °
Seitenspanwinkel
30   °
Materialgruppe
MQ
Spezifikation
SDR301-10.000H7-HA05-HP358
