Tritan-Drill-Alu
Diameter d1 (mm)
12.5
Your unit price
*Login requiredWe recommend:
Product description

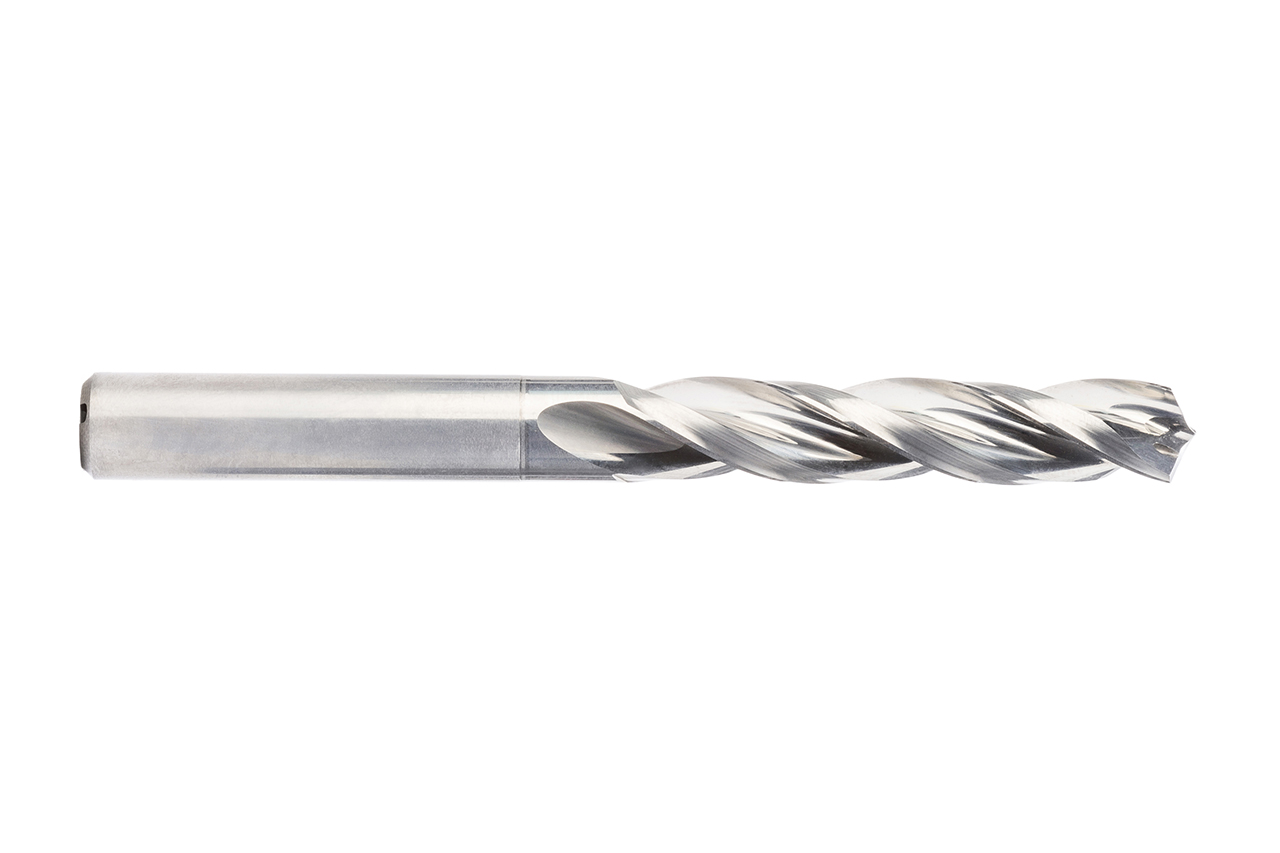

MAPAL has developed the Tritan Drill Alu especially for the high-feed machining of aluminium. The three-edged solid carbide drill has a coordinated, finely ground groove profile. Large chip spaces and a special, sharp cutting edge preparation ensure optimum chip formation, reduce heat build-up and ensure the reliable removal of the chips. The special drill tip of the Tritan-Drill-Alu enables drilling on uneven and critical surfaces as well as safe centering.
Technical specifications
- Product class
- Expert-Line
- Drilling depth
- 5xD

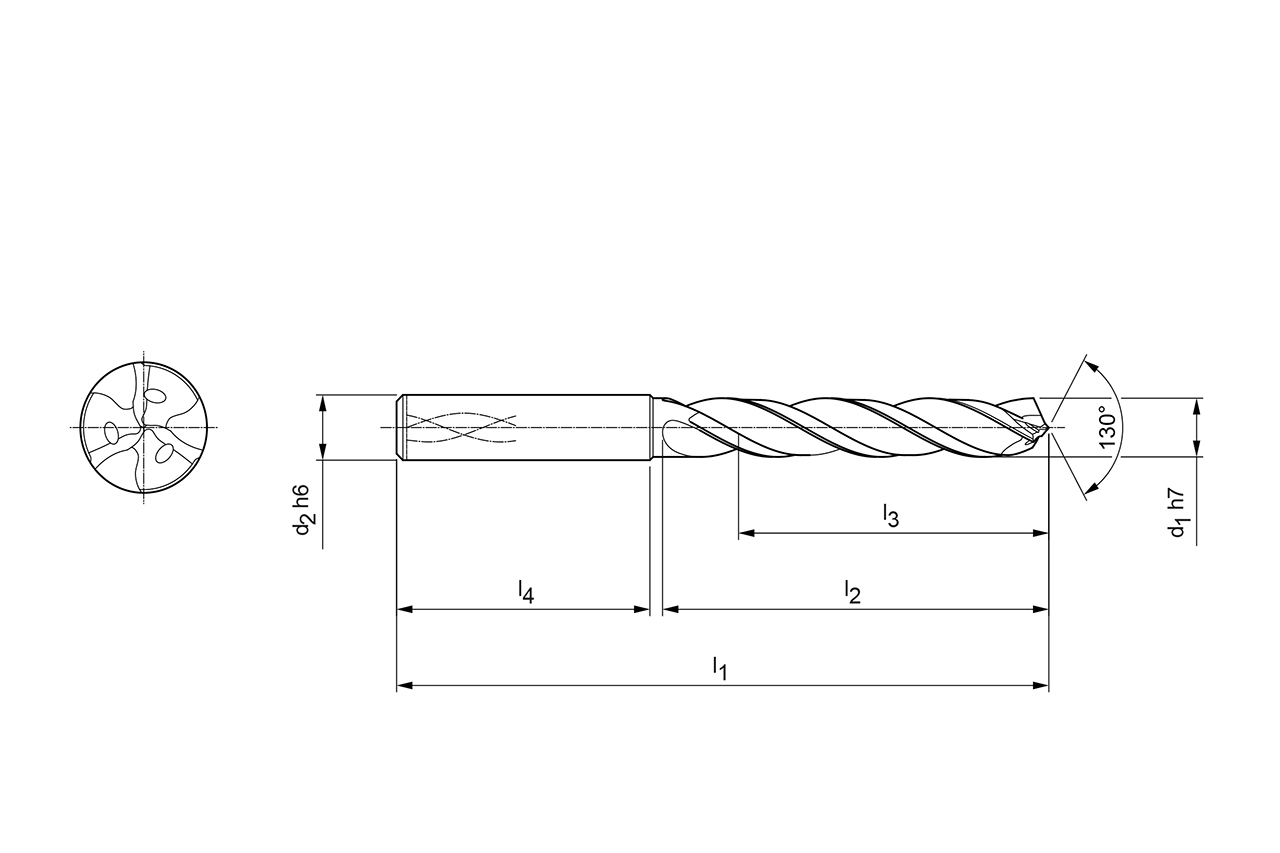

- d1
- 12.5 mm
- d2
- 14 mm
- l1
- 124 mm
- l2
- 77 mm
- l3
- 60 mm
- l4
- 45 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 3
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 130 °
- Side rake angle
- 30 °
- Material group
- R8
Downloads
- Technical drawing in dxf
- 31307656_607873803-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 31307656_607873803-000-00-ED1-MM.PDF
- Technical drawing in tif
- 31307656_607873803-000-00-ED1-MM.TIF
- 3D envelope in stp
- 31307656_607873805-000-00-E43.STP
- Brochure
- 31307656_MAPAL-Tritan-Drill-Alu__EN.pdf
- Cutting data recommendations
- 31307656_Tritan-Drill-Alu_EN.pdf
