Tritan-Drill-Alu
Durchmesser d1 (mm)
4.9
Ihr Stückpreis
*Login erforderlichUnsere Produktempfehlung:
Produktbeschreibung

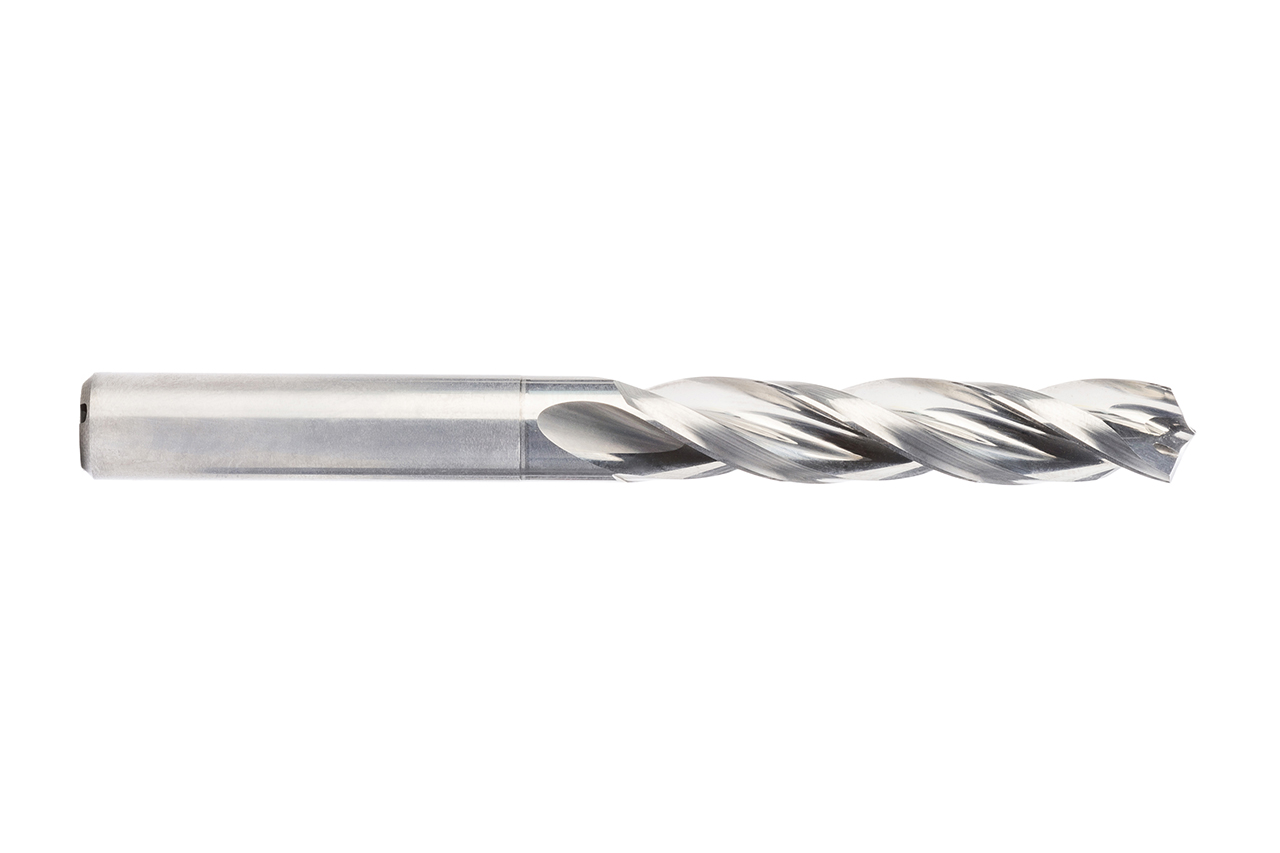

MAPAL has developed the Tritan Drill Alu especially for the high-feed machining of aluminium. The three-edged solid carbide drill has a coordinated, finely ground groove profile. Large chip spaces and a special, sharp cutting edge preparation ensure optimum chip formation, reduce heat build-up and ensure the reliable removal of the chips. The special drill tip of the Tritan-Drill-Alu enables drilling on uneven and critical surfaces as well as safe centering.
Technische Daten
- Schneidstoff
- HU318
- Produktklasse
- Expert-Line
- Bohrtiefe
- 5xD
- d1
- 4.9 mm
- d2
- 6 mm
- l1
- 82 mm
- l2
- 44 mm
- l3
- 35 mm
- l4
- 36 mm
- Kühlmittelaustritt
- innere Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 3
- Schafttoleranz
- h6
- Bohrungstoleranz
- ≥ IT 9
- Schaftform
- HA
- Spitzenwinkel
- 130 °
- Seitenspanwinkel
- 30 °
- Materialgruppe
- R8
- Spezifikation
- SCD681-0490-3-3-130HA05-HU318
Downloads

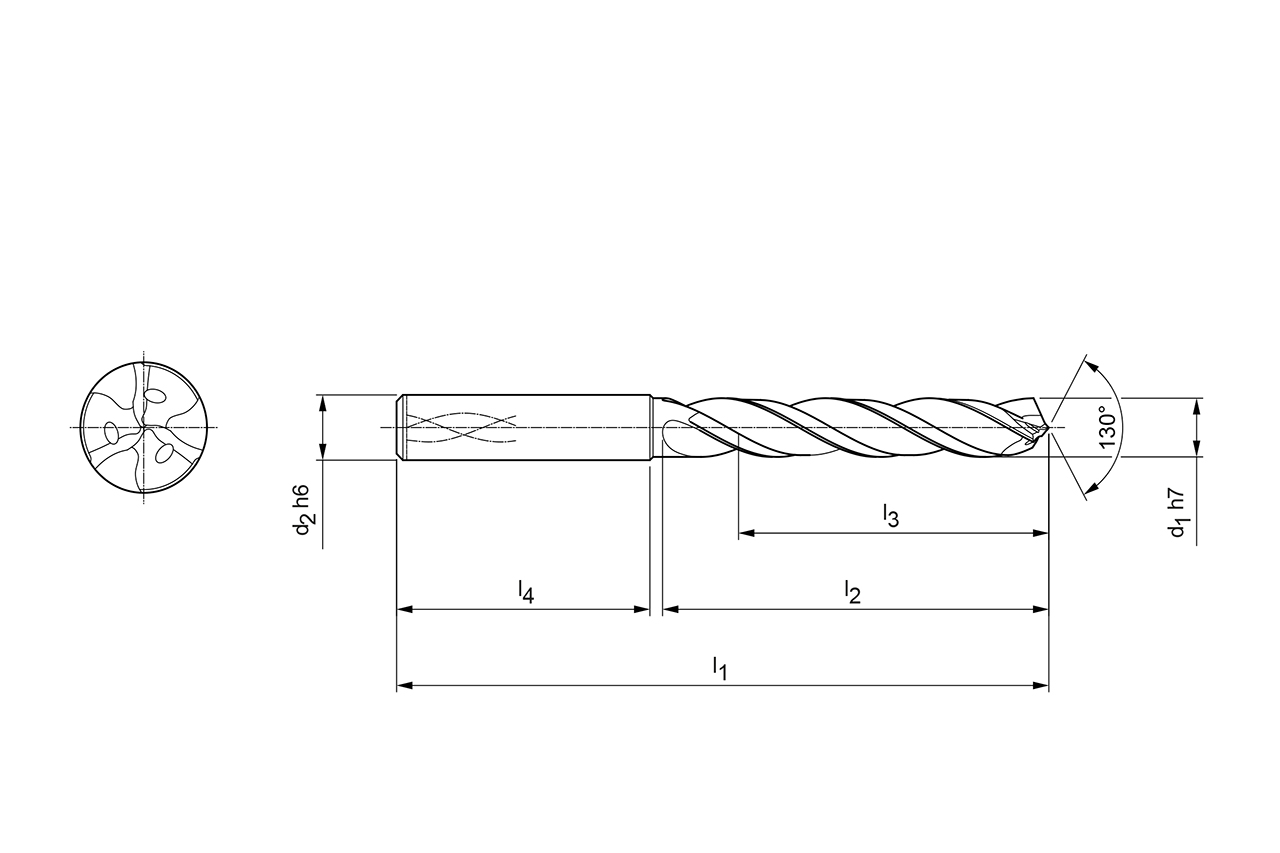

- Technische Zeichnung in dxf
