MEGA-Speed-Drill-Uni
Diameter d1 (mm)
17.5
Your unit price
*Login requiredProduct description

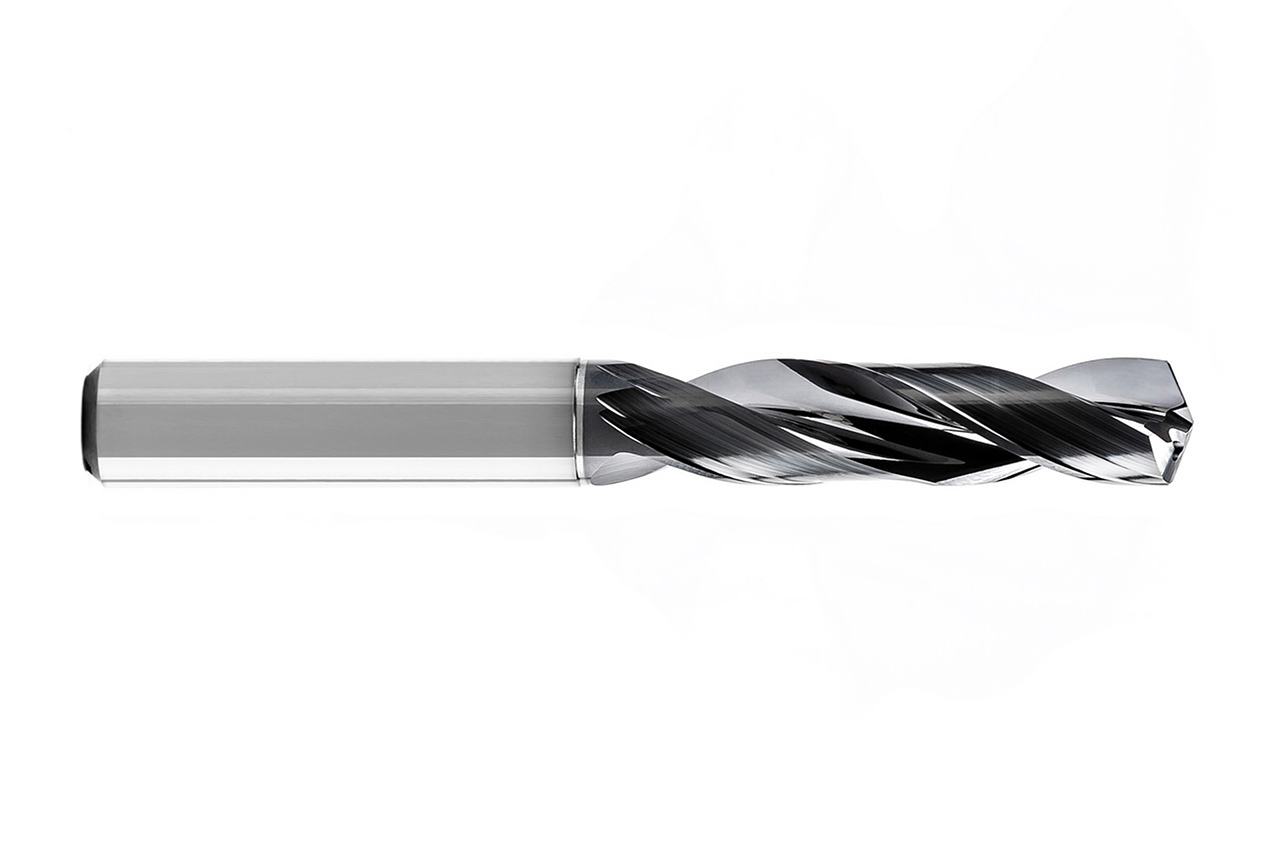

The cutting edges of the MEGA-Speed-Drill-Uni are unequally split. In addition, the drill has three guide chamfers. This prevents vibrations and reduces friction. The highly polished flutes guarantee optimum chip flow.
Material suitability
P
P1
P2
P3
P4
P5
P6
M
M1
M2
M3
K
K1
K2
K3
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3
Technical specifications
- Cutting material
- HP374
- Product class
- Expert-Line
- Drilling depth
- 3xD

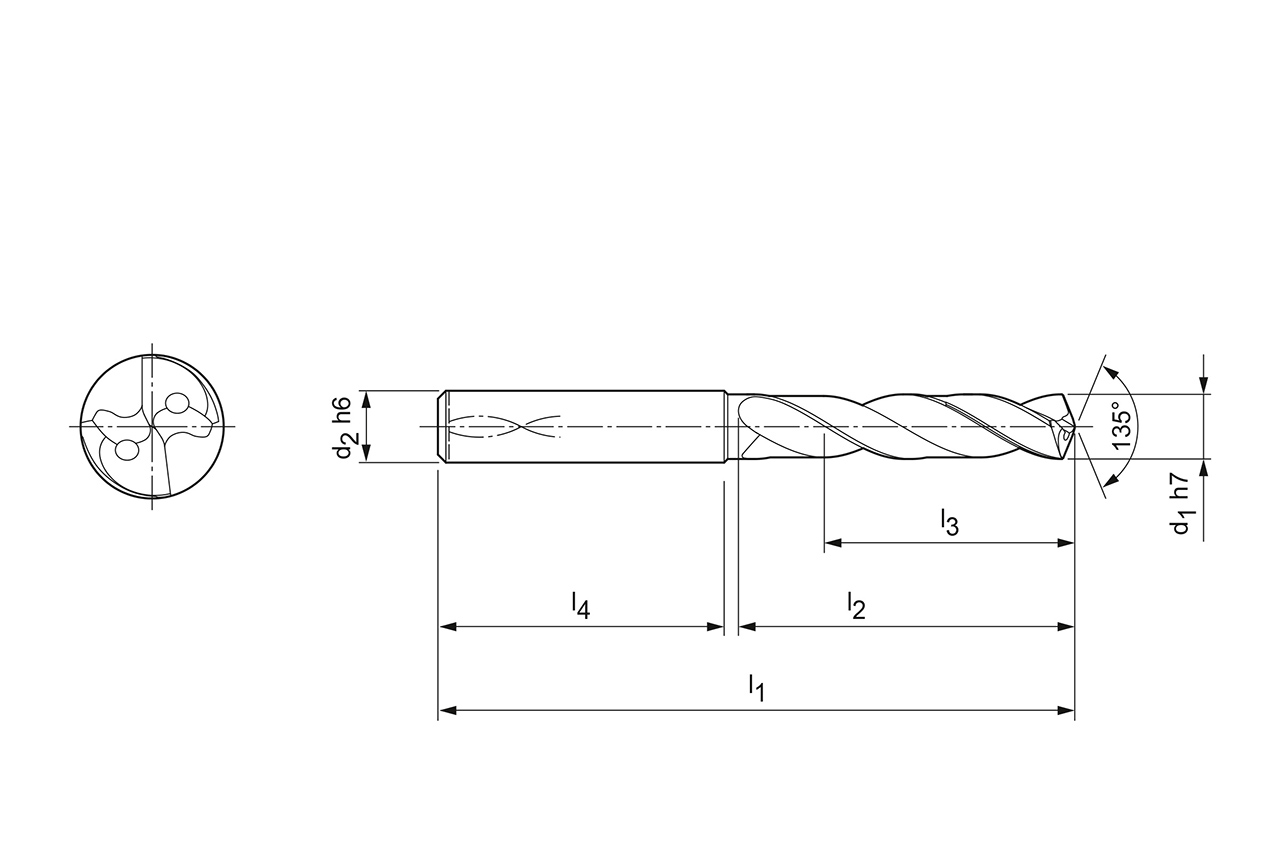

- d1
- 17.5 mm
- d2
- 18 mm
- l1
- 123 mm
- l2
- 73 mm
- l3
- 51 mm
- l4
- 48 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 135 °
- Side rake angle
- 30 °
- Material group
- R8
- Specification
- SCD221-1750-2-3-135HA03-HP374
Downloads
- Technical drawing in dxf
- 30404237_607883799-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 30404237_607883799-000-00-ED1-MM.PDF
- Technical drawing in tif
- 30404237_607883799-000-00-ED1-MM.TIF
- 3D envelope in stp
- 30404237_607883800-000-00-E43.STP
- Cutting data recommendations
- 30404237_MEGA-Speed-Drill-Uni_EN.pdf
