MEGA-Speed-Drill-Titan
Diameter d1 (mm)
8.1
Your unit price
*Login requiredWe recommend:
Product description

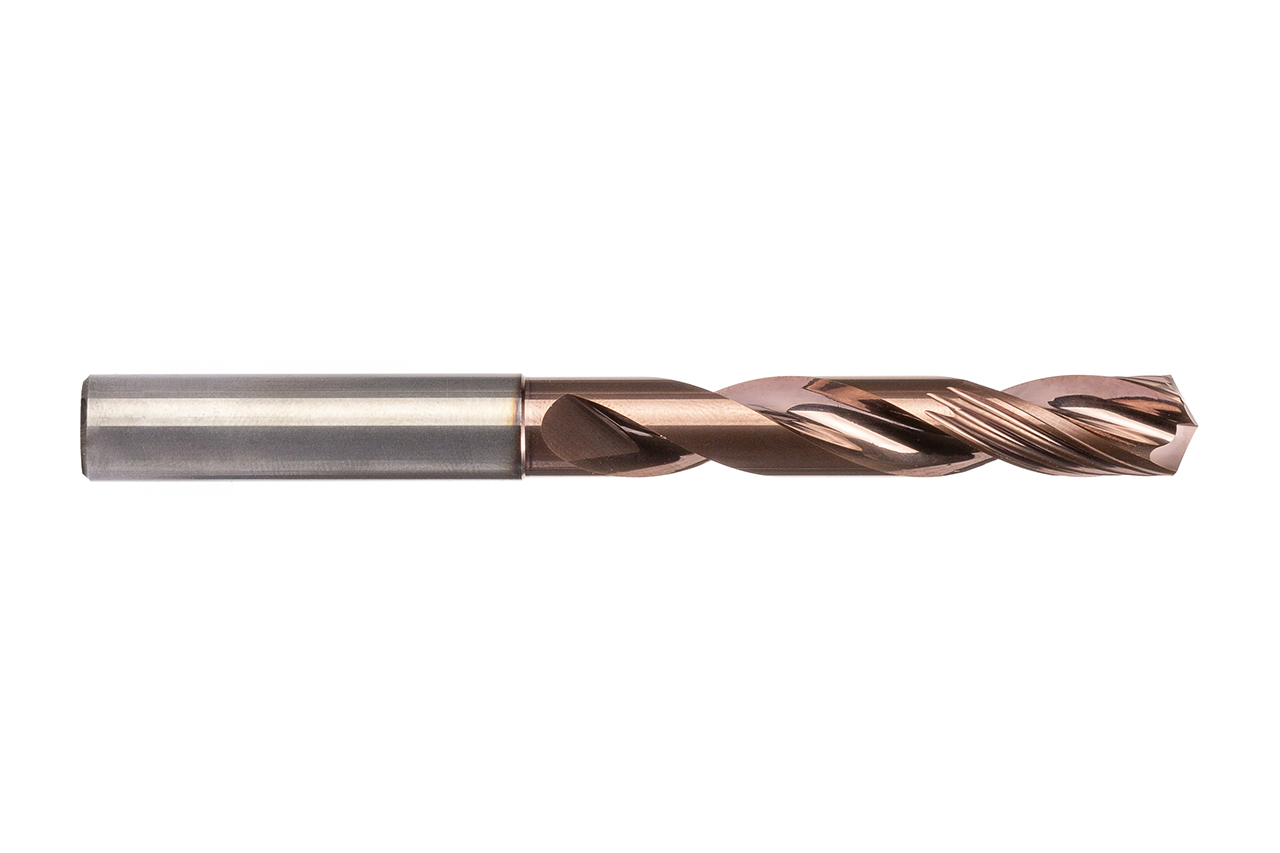

The double-edged solid carbide drill MEGA-Speed-Drill-Titan is specially designed for high-speed machining and is the first choice for series production. The low build-up edge formation is achieved by a highly polished coating, which creates a low-friction surface and thus enables longer service life. With four guide chamfers for optimal roundness and a convex cutting edge for greater stability, the drill guarantees smooth and reliable machining.
Technical specifications
- Cutting material
- HP184
- Product class
- Expert-Line
- Drilling depth
- 5xD

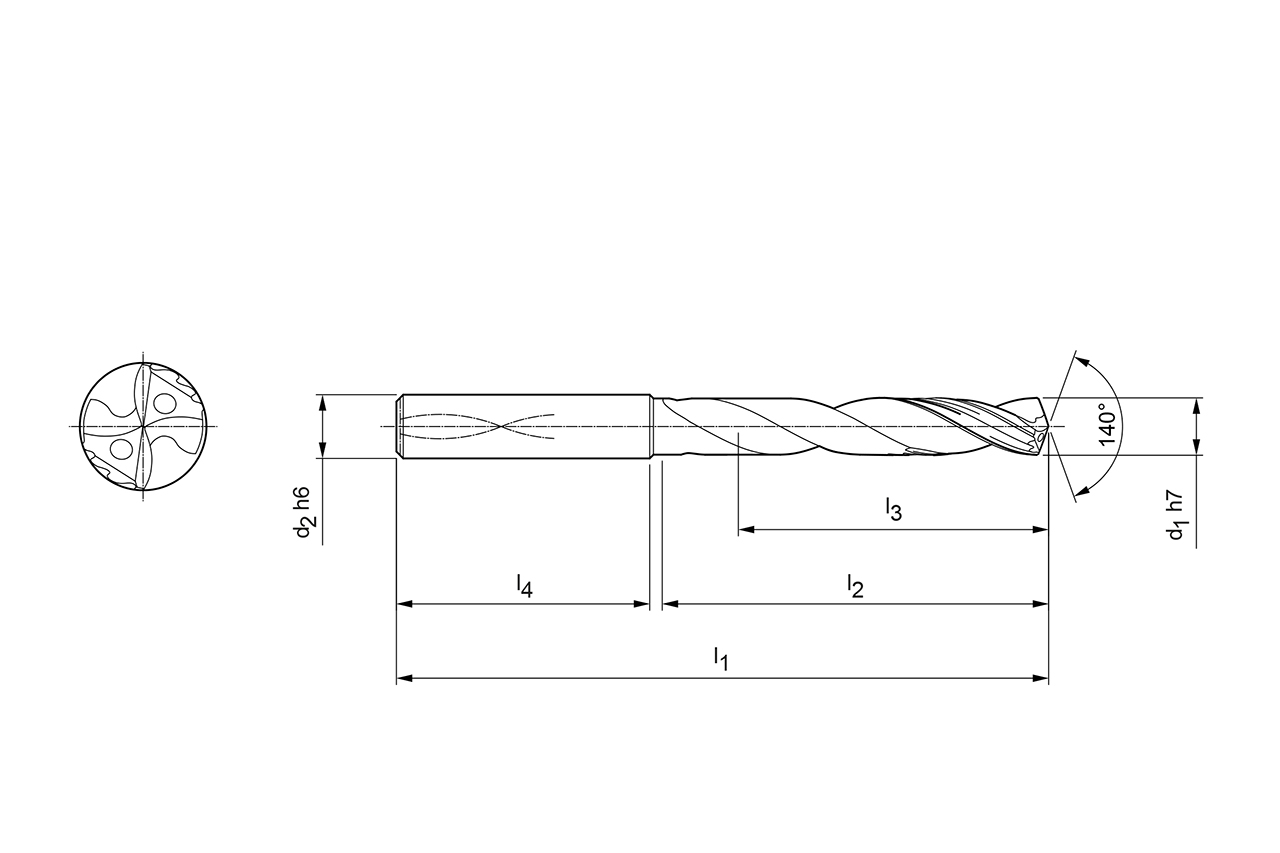

- d1
- 8.1 mm
- d2
- 10 mm
- l1
- 103 mm
- l2
- 61 mm
- l3
- 49 mm
- l4
- 40 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 140 °
- Side rake angle
- 30 °
- Material group
- R8
Downloads
- Cutting data recommendations
- 31315857_MEGA-Speed-Drill-Titan_EN.pdf
