MEGA-Speed-Drill-Steel

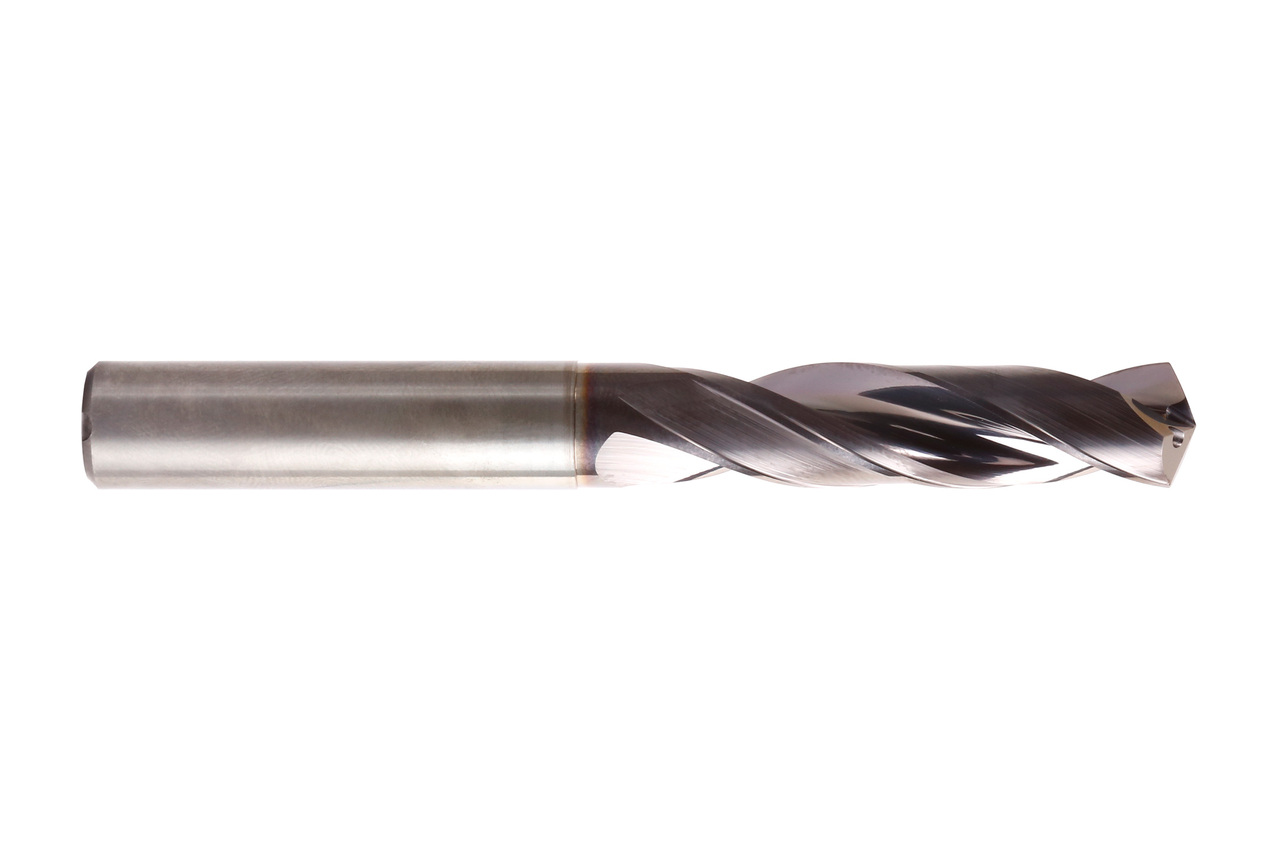

  • Product image MEGA-Speed-Drill-Steel

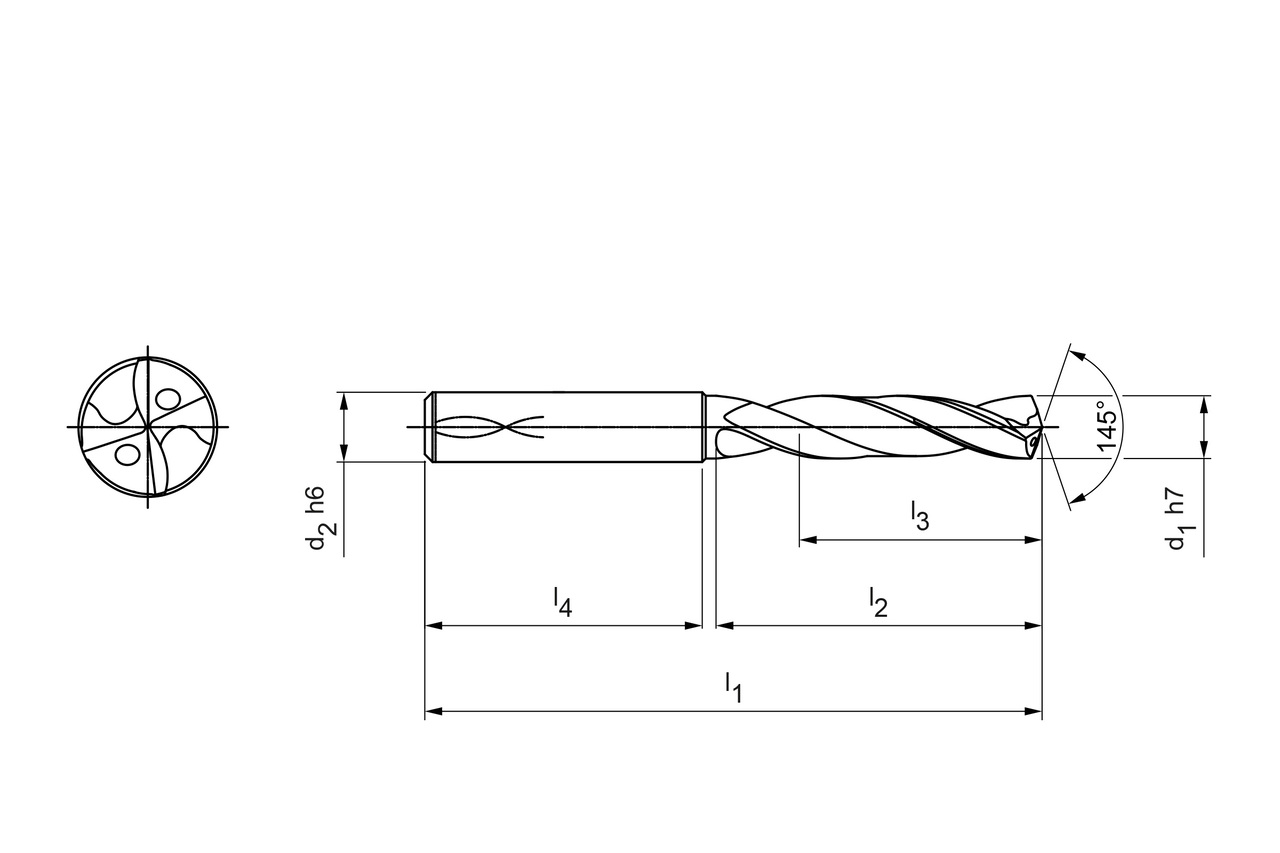

  • Technical drawing MEGA-Speed-Drill-Steel

Diameter d1 (mm)

10.0

Your unit price

*Login required

Article

31036335

Quantity

Added to Your Shopping Cart

Unsere Produktempfehlung:

Product description

The double-edged solid carbide drill MEGA-Speed-Drill-Steel is specially designed for high-speed machining and is the first choice for series production. Its unequally split cutting edges and highly polished flutes prevent vibration and reduce friction.

Material suitability

Technical specifications

Schneidstoff
HP358
Produktklasse
Expert-Line
Bohrtiefe
3xD
d1
10   mm
d2
10   mm
l1
89   mm
l2
47   mm
l3
35   mm
l4
40   mm
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
2
Schafttoleranz
h6
Bohrungstoleranz
≥ IT 9
Schaftform
HA
Spitzenwinkel
145   °
Seitenspanwinkel
30   °
Materialgruppe
R8
Spezifikation
SCD621-1000-2-3-145HA03-HP358

Downloads

3D Hüllkontur in stp
31036335_608092960-000-00-E43.STP
Technische Zeichnung in tif
31036335_608092961-000-00-ED1.TIF
Technische Zeichnung in dxf
31036335_608092961-000-00-ED1.DXF
Technische Zeichnung in pdf
31036335_608092961-000-00-ED1.PDF
Cutting data recommendations
31036335_MEGA-Speed-Drill-Steel_EN.pdf
Brochure
31036335_MAPAL_MEGA-Speed-Drill__EN.pdf
