MEGA-Speed-Drill-Steel
Durchmesser d1 (mm)
6.9
Your unit price
*Login erforderlichUnsere Produktempfehlung:
Product description

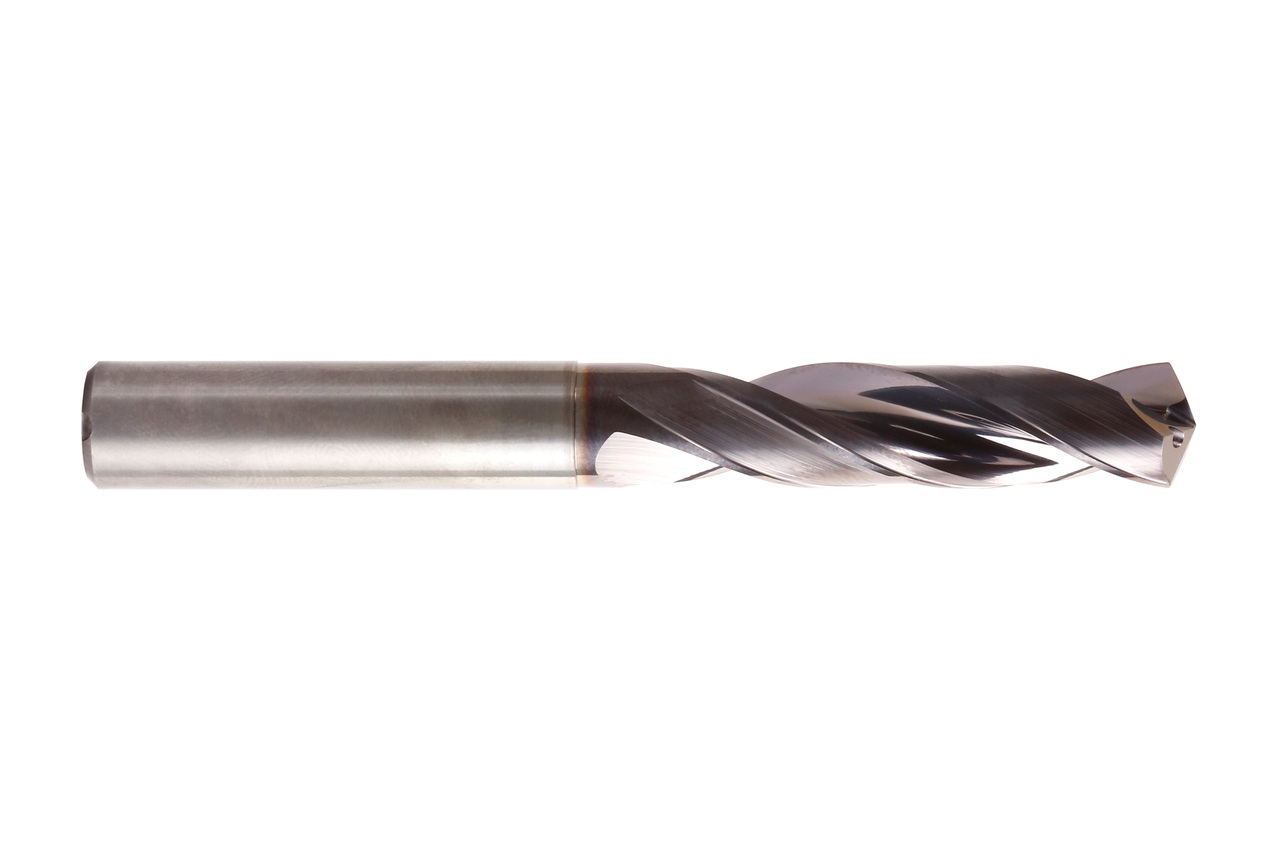

The double-edged solid carbide drill MEGA-Speed-Drill-Steel is specially designed for high-speed machining and is the first choice for series production. Its unequally split cutting edges and highly polished flutes prevent vibration and reduce friction.

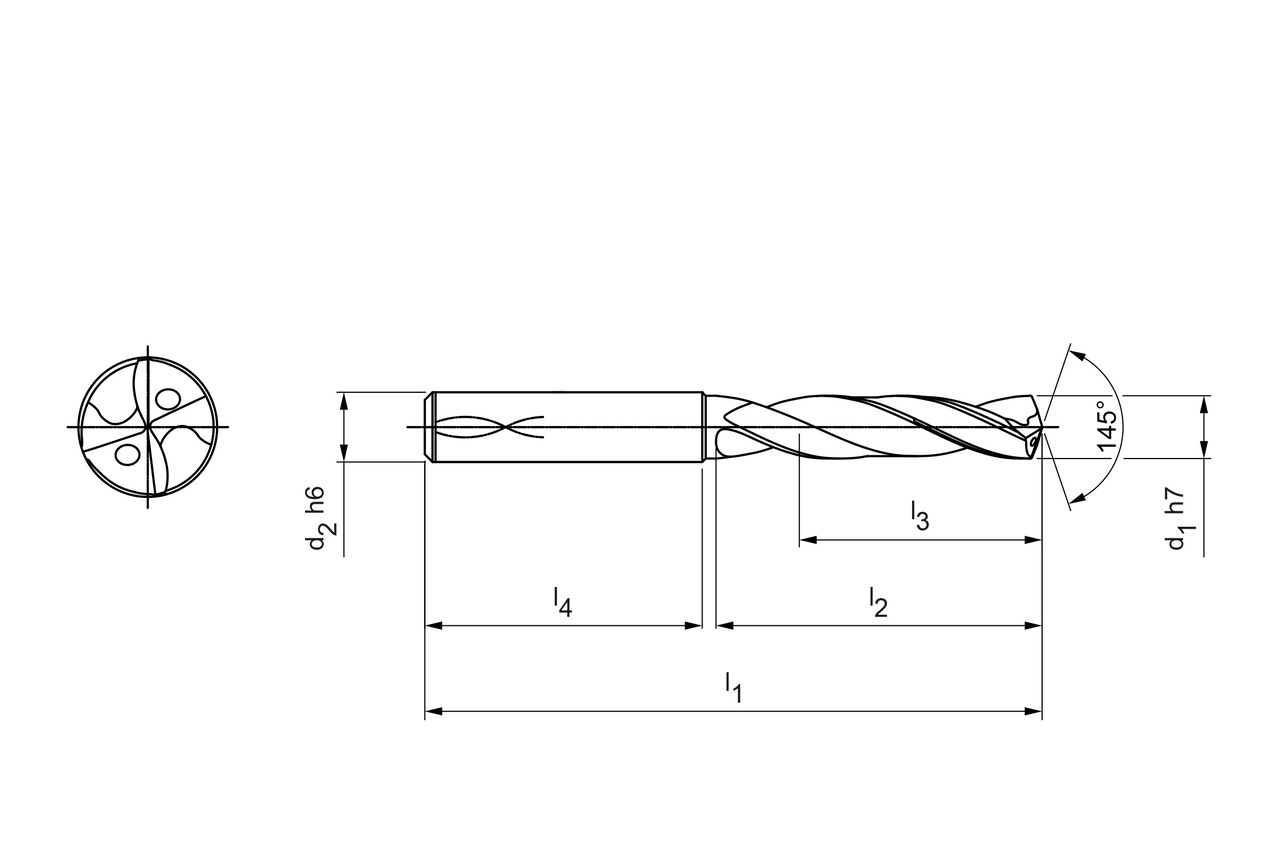

Technical specifications
- Schneidstoff
- HP358
- Produktklasse
- Expert-Line
- Bohrtiefe
- 3xD
- d1
- 6.9 mm
- d2
- 8 mm
- l1
- 79 mm
- l2
- 34 mm
- l3
- 24 mm
- l4
- 36 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 145 °
- Side rake angle
- 30 °
- Material group
- R8
Downloads
- Cutting data recommendations
- 31036304_Tritan-Drill-Steel_MEGA-Speed-Drill-Steel_Schnittwertempfehlung.pdf
- Cutting data recommendations
- 31036304_MEGA-Speed-Drill-Steel_EN.pdf
