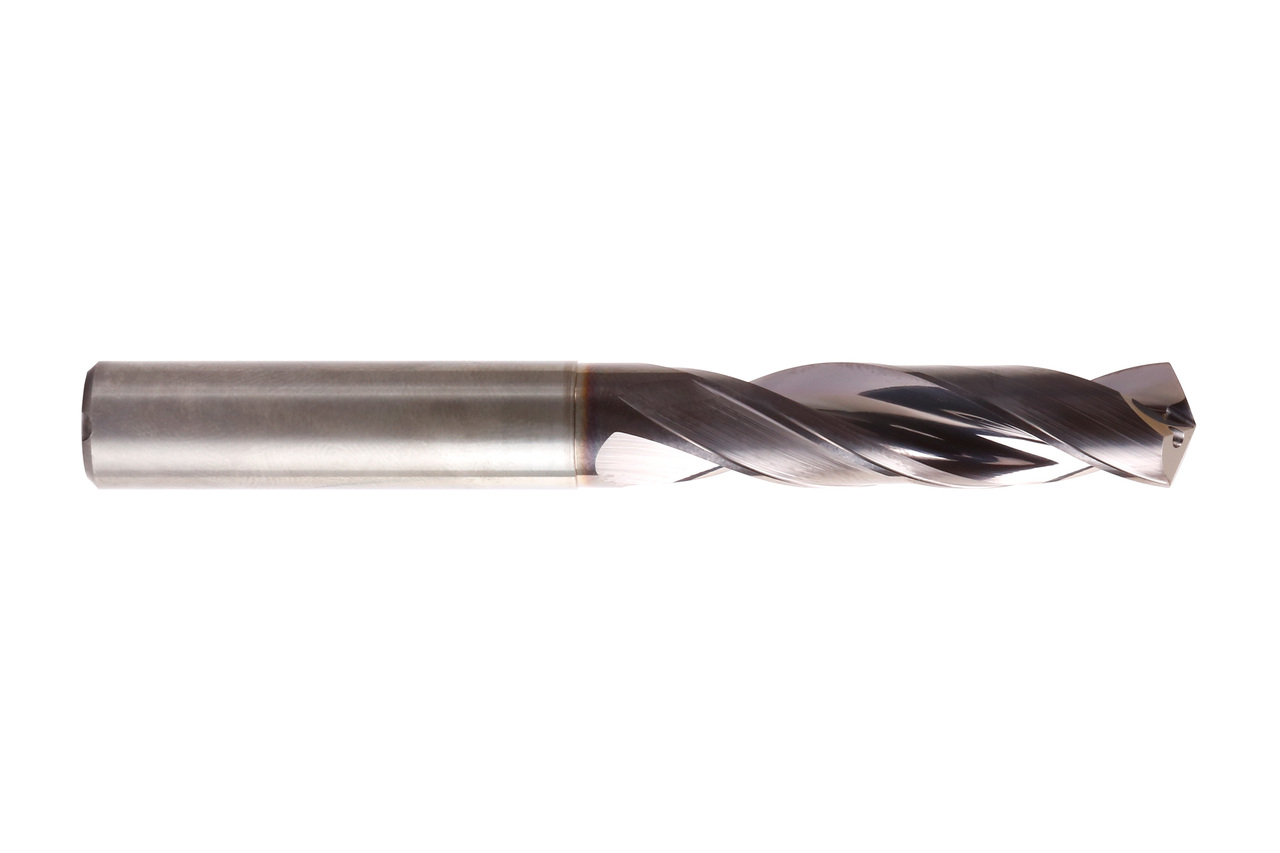

MEGA-Speed-Drill-Steel
Diameter d1 (mm)
6.5
Your unit price
*Login requiredWe recommend:
Product description
The double-edged solid carbide drill MEGA-Speed-Drill-Steel is specially designed for high-speed machining and is the first choice for series production. Its unequally split cutting edges and highly polished flutes prevent vibration and reduce friction.
Technical specifications
- Cutting material
- HP358
- Product class
- Expert-Line
- Drilling depth
- 3xD

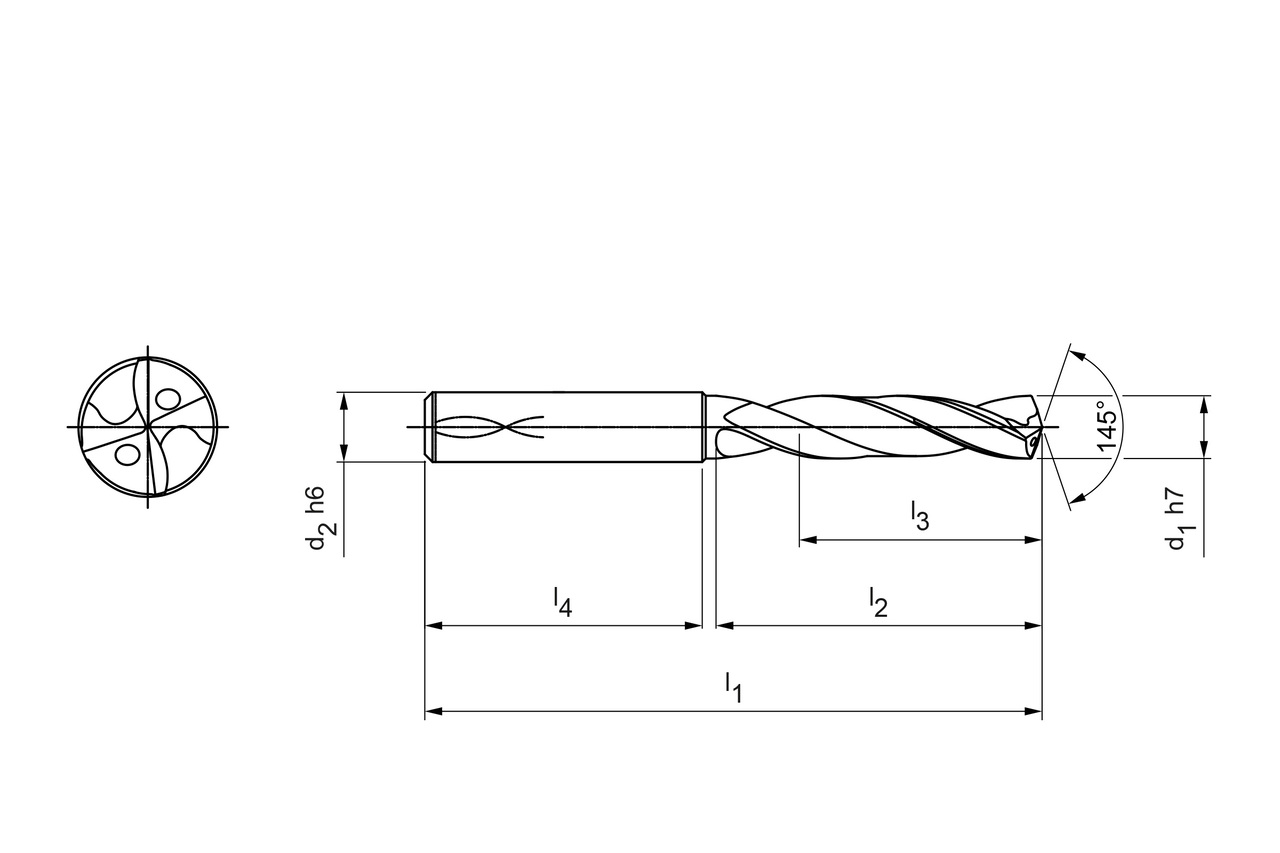

- d1
- 6.5 mm
- d2
- 8 mm
- l1
- 79 mm
- l2
- 34 mm
- l3
- 24 mm
- l4
- 36 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 145 °
- Side rake angle
- 30 °
- Material group
- R8
Downloads
- 3D envelope in stp
- 31036300_608092575-000-00-E43.STP
- Technical drawing in tif
- 31036300_608092576-000-00-ED1.TIF
- Technical drawing in dxf
- 31036300_608092576-000-00-ED1.DXF
- Technical drawing in pdf
- 31036300_608092576-000-00-ED1.PDF
- Cutting data recommendations
- 31036300_MEGA-Speed-Drill-Steel_EN.pdf
