MEGA-Speed-Drill-Steel
Diameter d1 (mm)
15.5
Your unit price
*Login requiredWe recommend:
Product description

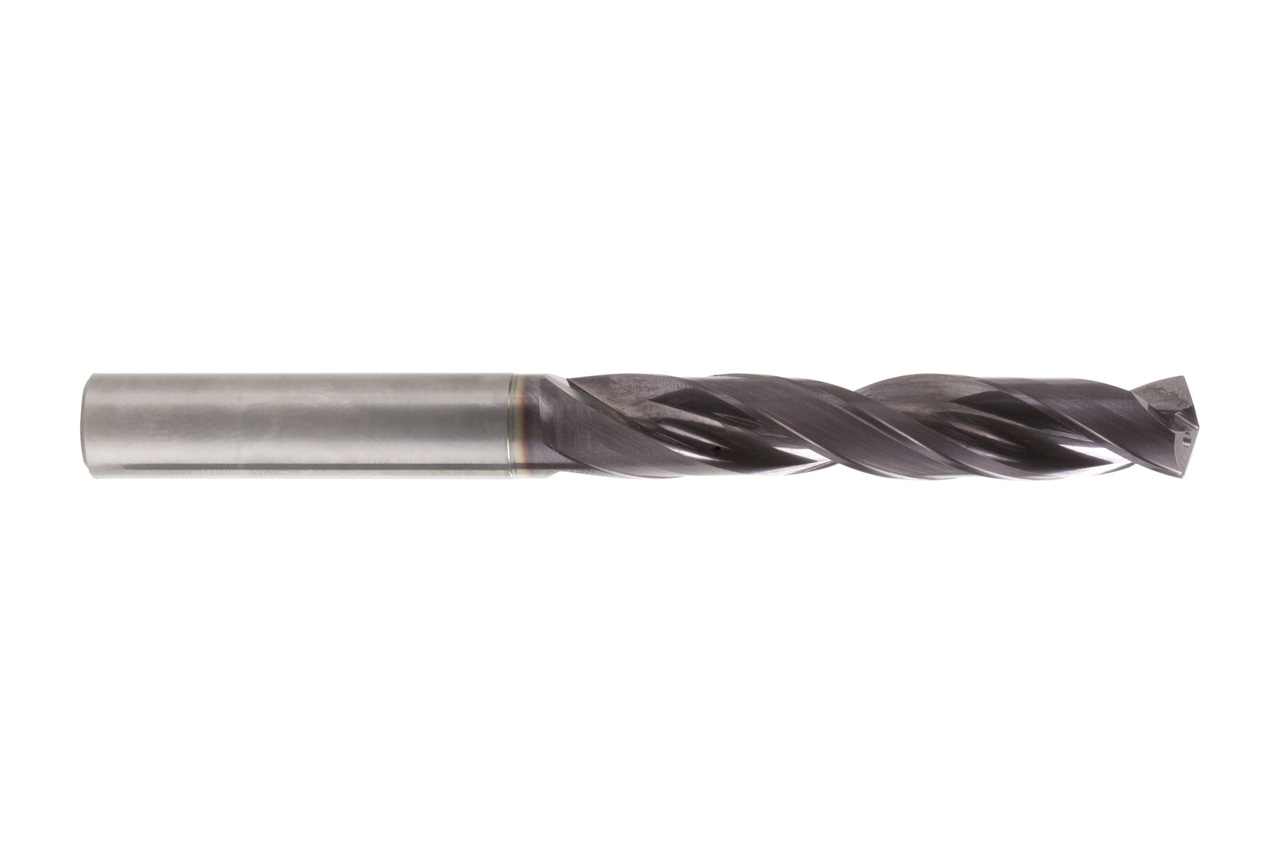

The double-edged solid carbide drill MEGA-Speed-Drill-Steel is specially designed for high-speed machining and is the first choice for series production. Its unequally split cutting edges and highly polished flutes prevent vibration and reduce friction.
Technical specifications
- Cutting material
- HP358
- Product class
- Expert-Line
- Drilling depth
- 5xD

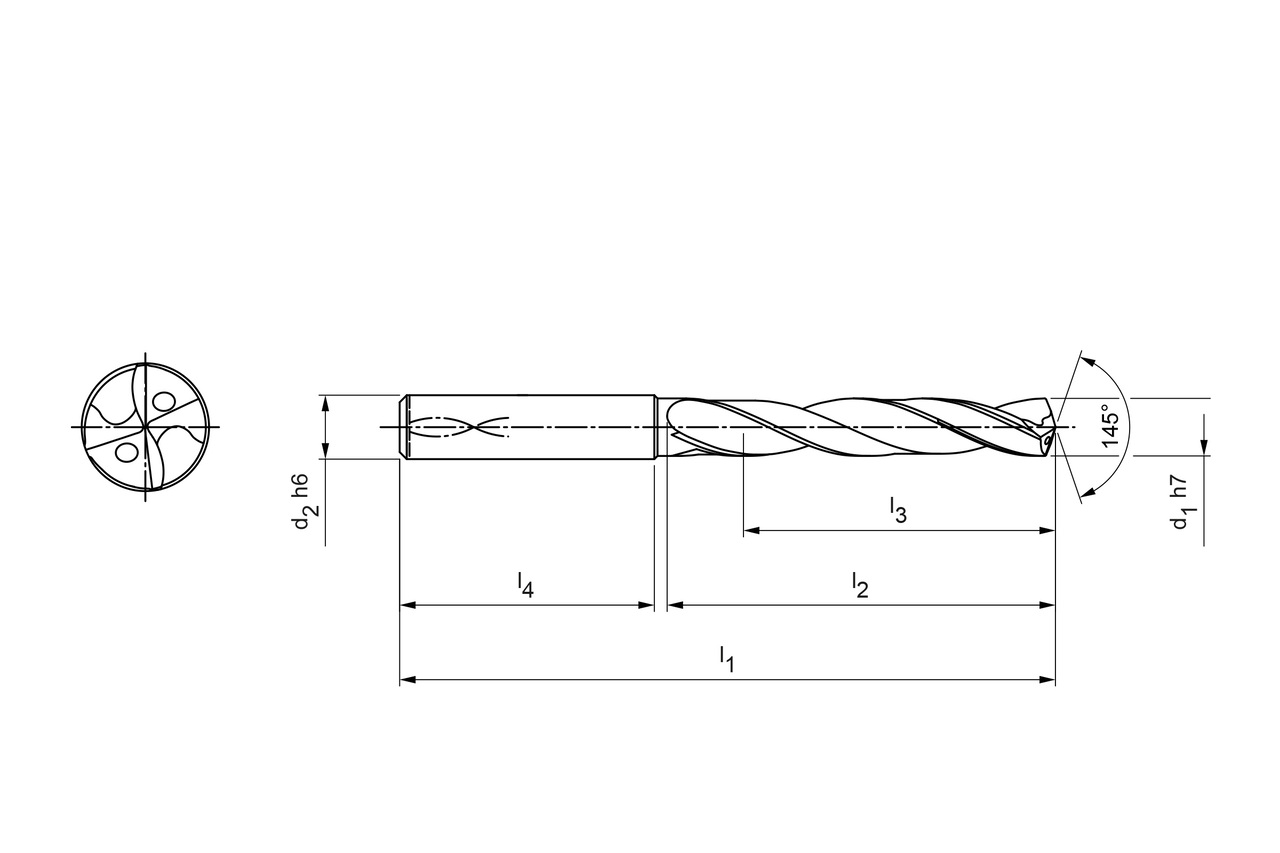

- d1
- 15.5 mm
- d2
- 16 mm
- l1
- 133 mm
- l2
- 83 mm
- l3
- 63 mm
- l4
- 48 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 145 °
- Side rake angle
- 30 °
- Material group
- R8
Downloads
- 3D envelope in stp
- 30966402_608093075-000-00-E43.STP
- Technical drawing in tif
- 30966402_608093076-000-00-ED1.TIF
- Technical drawing in dxf
- 30966402_608093076-000-00-ED1.DXF
- Technical drawing in pdf
- 30966402_608093076-000-00-ED1.PDF
- Cutting data recommendations
- 30966402_MEGA-Speed-Drill-Steel_EN.pdf
