MEGA-Speed-Drill-Inox

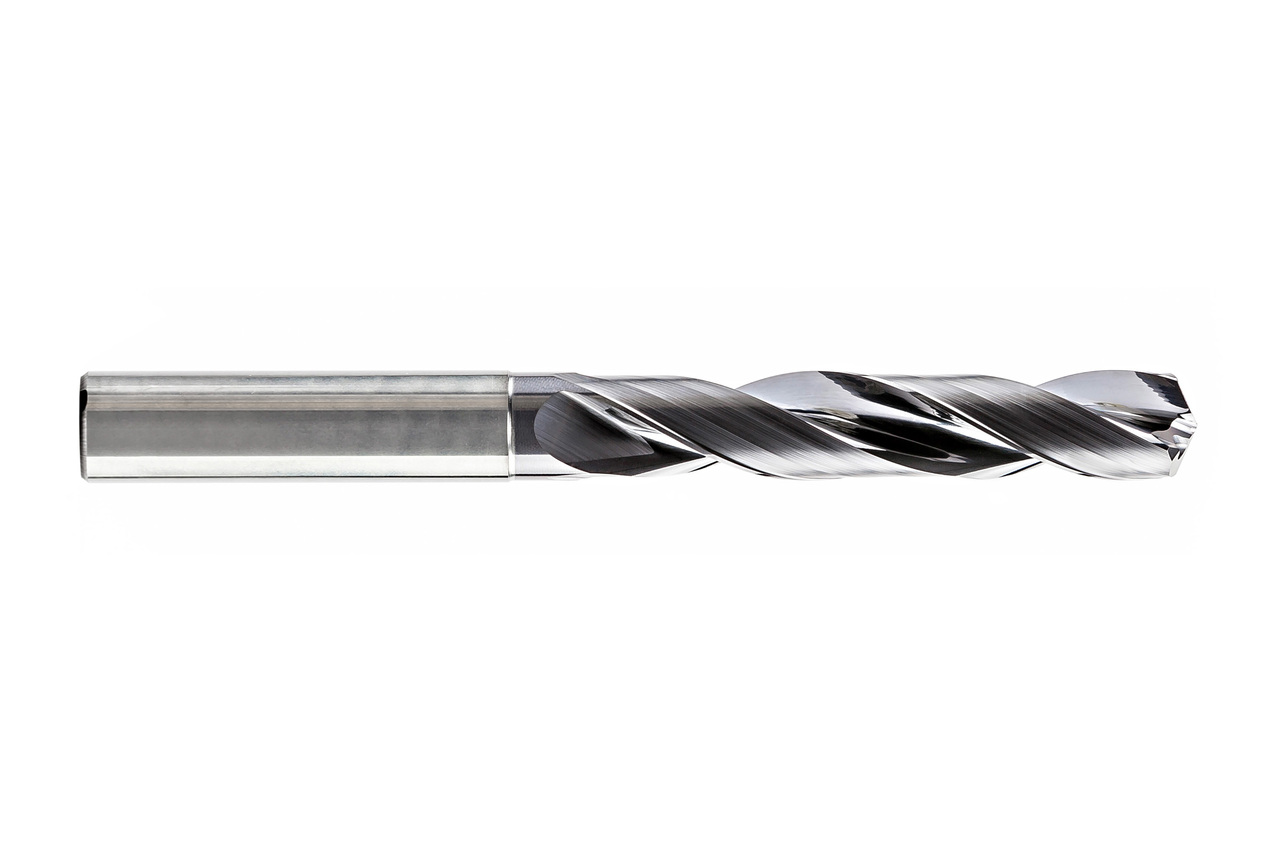

  • Product image MEGA-Speed-Drill-Inox

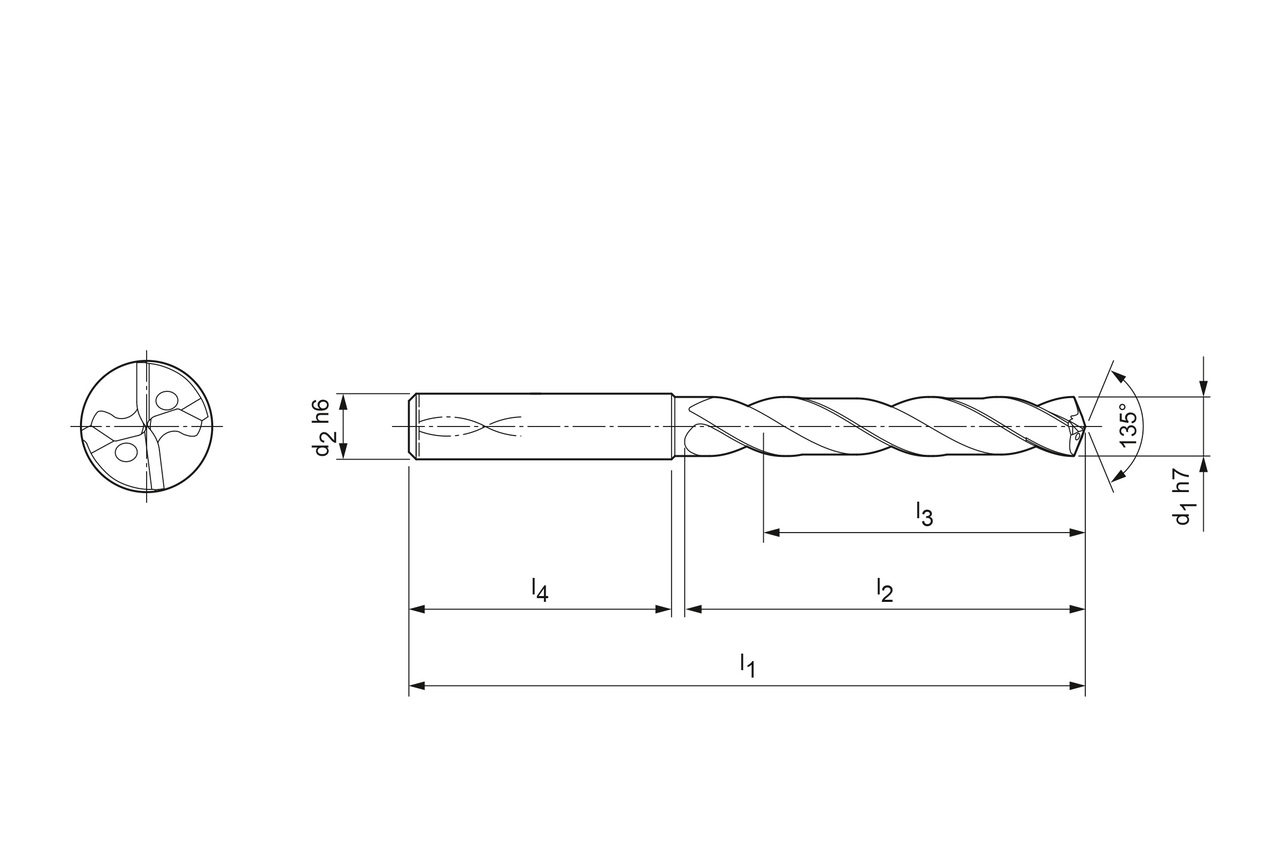

  • Technical drawing MEGA-Speed-Drill-Inox

Diameter d1 (mm)

5.3

Your unit price

*Login required

Article

30488206

Quantity

Added to Your Shopping Cart

Unsere Produktempfehlung:

Product description

The cutting edges of the MEGA-Speed-Drill-Inox are unequally split. In addition, the drill has three guide chamfers. This prevents vibrations and reduces friction. The highly polished flutes guarantee optimum chip flow. The cutting geometry, which is specially adapted to stainless steel, makes it possible to drill holes with up to 30 % higher feed rates compared to conventional drills.

Material suitability

Technical specifications

Schneidstoff
HP374
Produktklasse
Expert-Line
Bohrtiefe
5xD
d1
5.3   mm
d2
6   mm
l1
82   mm
l2
44   mm
l3
35   mm
l4
36   mm
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
2
Schafttoleranz
h6
Bohrungstoleranz
≥ IT 9
Schaftform
HA
Spitzenwinkel
135   °
Seitenspanwinkel
30   °
Materialgruppe
R8

Downloads

3D Hüllkontur in stp
30488206_608044679-000-00-E43.STP
Technische Zeichnung in tif
30488206_608044678-000-00-ED1.TIF
Technische Zeichnung in dxf
30488206_608044678-000-00-ED1.DXF
Cutting data recommendations
30488206_MEGA-Speed-Drill-Inox_EN.pdf
