MEGA-Quadro-Drill-Plus
Durchmesser d1 (mm)
10.2
Your unit price
*Login erforderlichProduct description

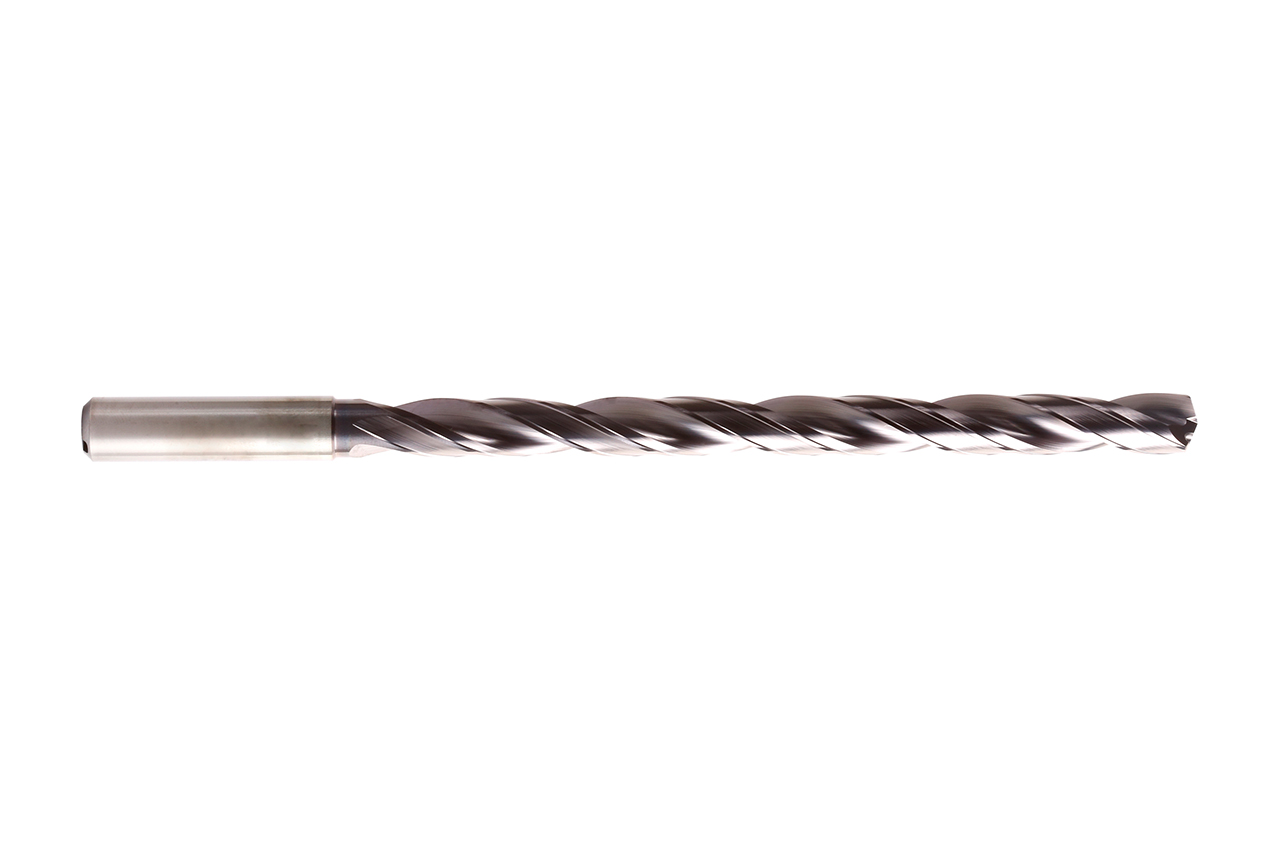

The double-edged solid carbide drill MEGA-Quadro-Drill-Plus has been specifically developed for precise drilling. The total of four guiding phases enables maximum drilling quality in terms of alignment accuracy, coaxiality, and positional accuracy. Through a novel coating and improved sharpening, the MEGA-Quadro-Drill-Plus guarantees consistently reliable drilling results. An optimized edge rounding leads to a significant improvement in service life.
Technical specifications
- Schneidstoff
- HP358
- Bohrtiefe
- 12xD
- d1
- 10.2 mm
- d2
- 12 mm
- l1
- 204 mm
- l2
- 156 mm
- l3
- 142 mm
- l4
- 45 mm
- Kühlmittelaustritt
- innere Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 2
- Schafttoleranz
- h6
- Bohrungstoleranz
- ≥ IT 8
- Schaftform
- HA
- Spitzenwinkel
- 140 °
- Seitenspanwinkel
- 30 °
- Materialgruppe
- M6
Downloads

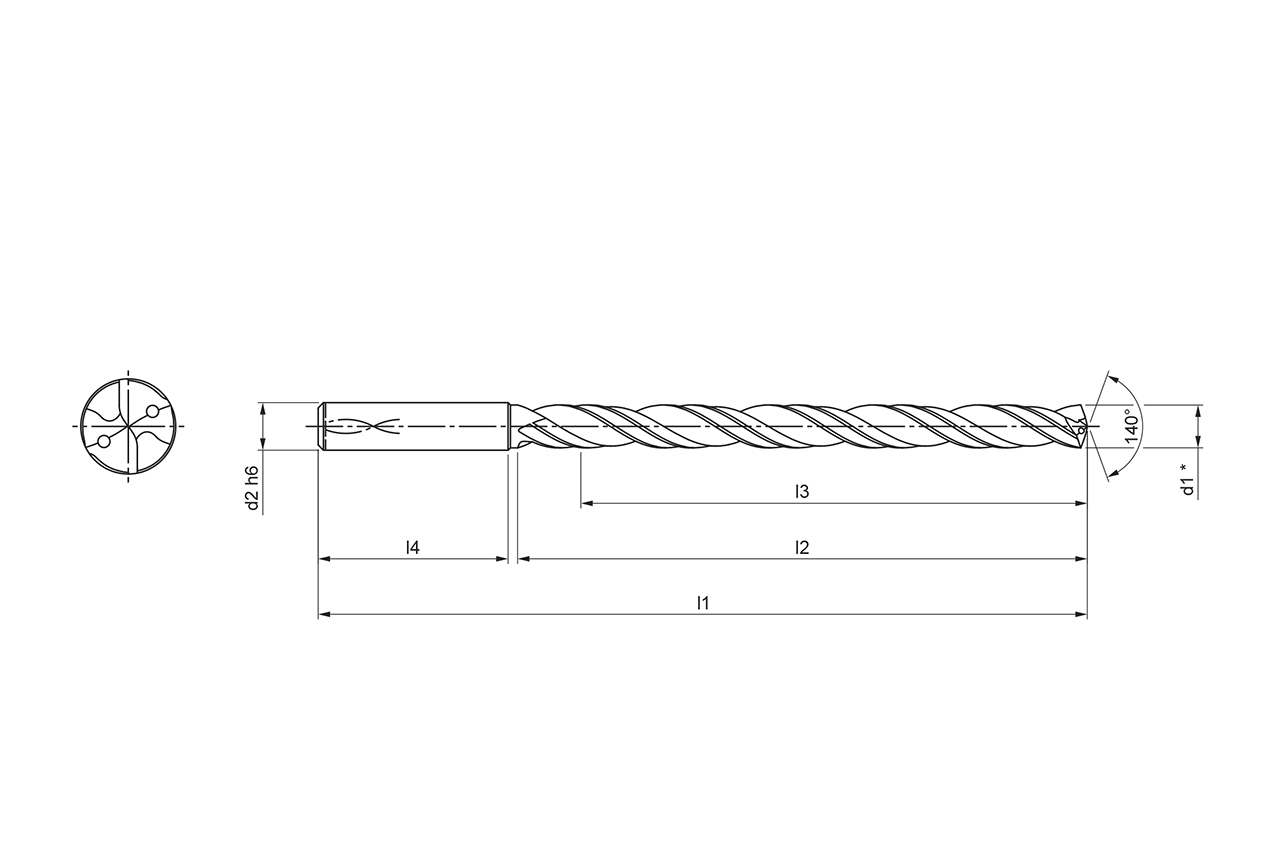

- Technische Zeichnung in dxf
- 31053097_607838439-000-01-ED1-MM.DXF
- Technische Zeichnung in pdf
- 31053097_607838439-000-01-ED1-MM.PDF
- Technische Zeichnung in tif
- 31053097_607838439-000-01-ED1-MM.TIF
- 3D Hüllkontur in stp
- 31053097_607838440-000-01-E43.STP
- Cutting data recommendations
- 31053097_MEGA-Quadro-Drill-Plus_EN.pdf
