MEGA-Drill-Steel-Plus
Diameter d1 (mm)
11.3
Your unit price
*Login requiredWe recommend:
Product description

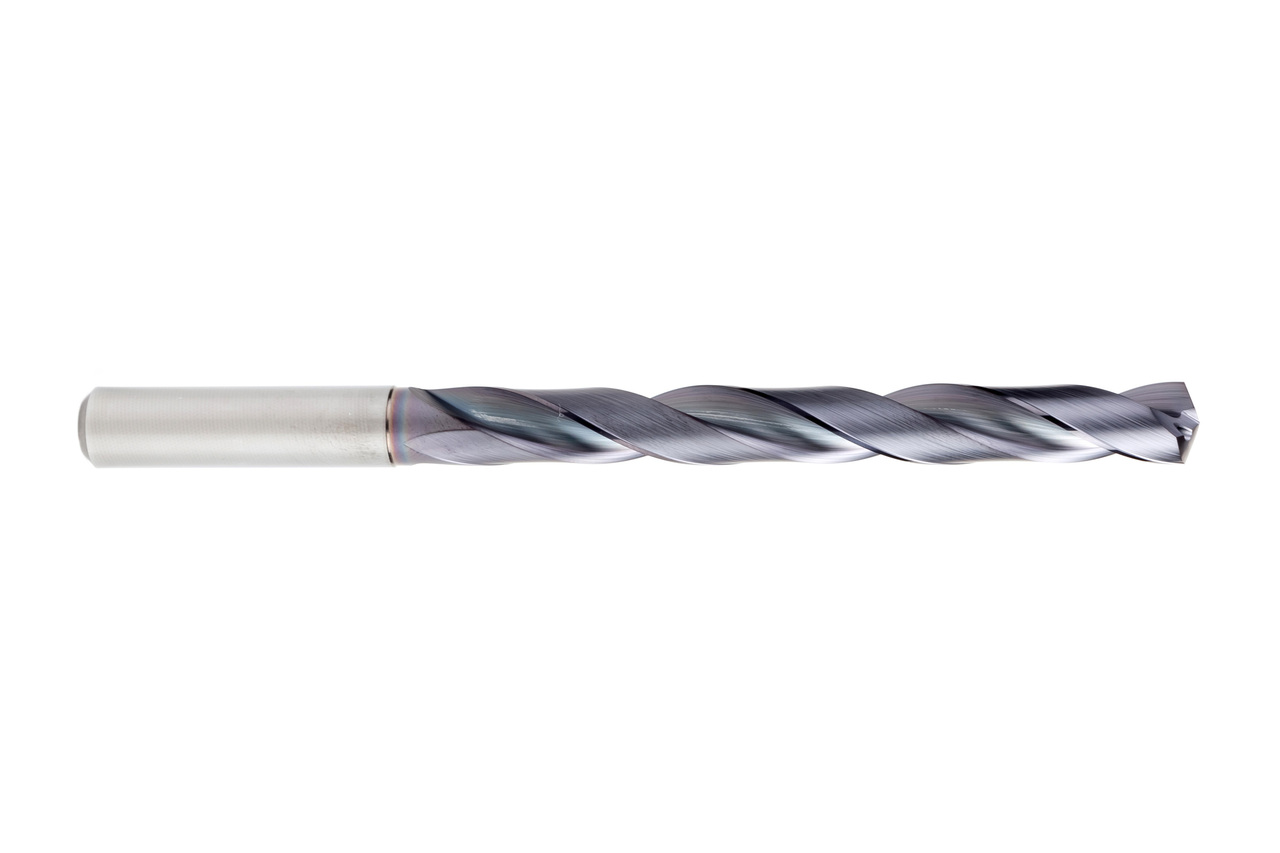

The double-edged solid carbide drill MEGA-Drill-Steel-Plus is ideally suited for medium to high quantities in a wide range of applications. The special design of the cutting edges and the chip chambers make it ideal for economical steel machining.
Technical specifications
- Product class
- Performance-Line
- Drilling depth
- 8xD
- d1
- 11.3 mm
- d2
- 12 mm
- l1
- 162 mm
- l2
- 114 mm
- l3
- 96 mm
- l4
- 45 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 135 °
- Side rake angle
- 30 °
- Material group
- M8
Downloads

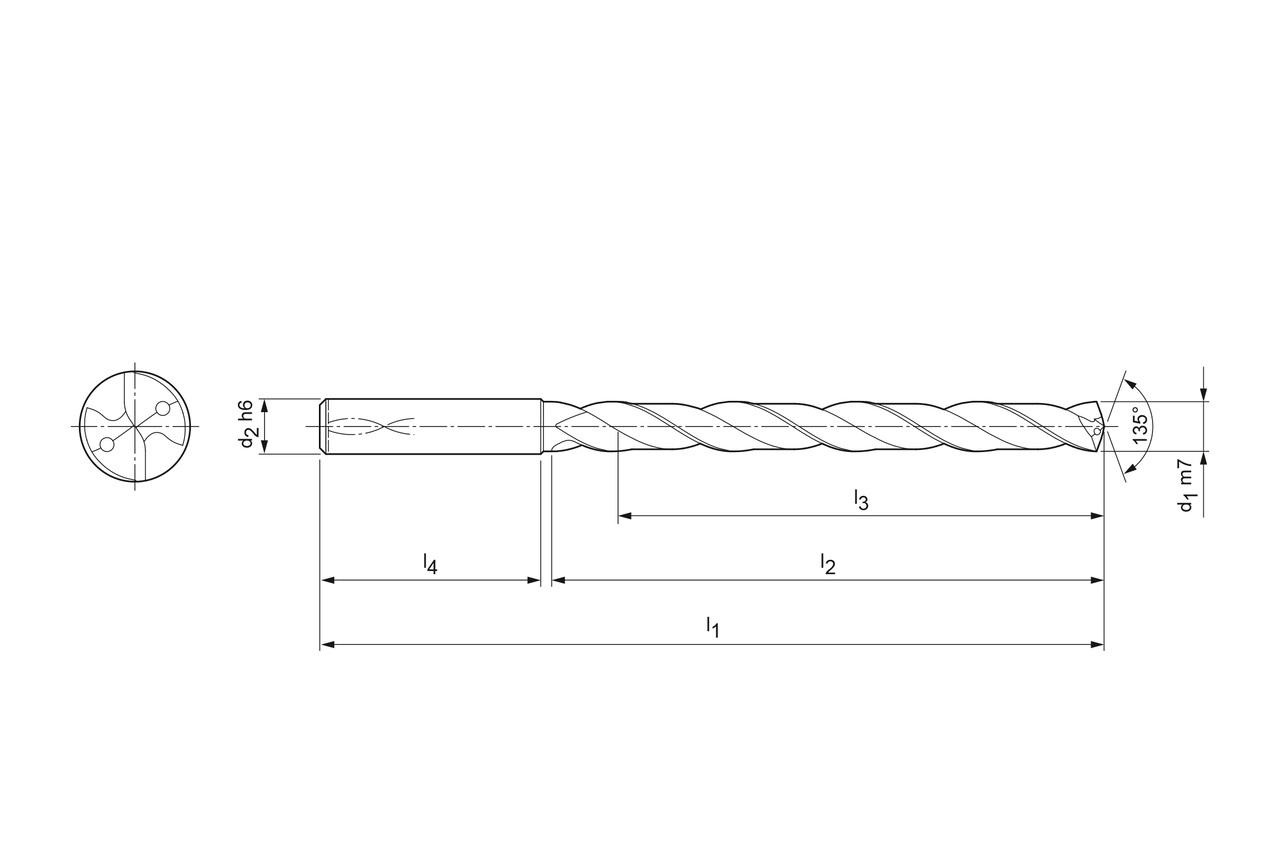

- Technical drawing in dxf
- 30803195_607849832-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 30803195_607849832-000-00-ED1-MM.PDF
- Technical drawing in tif
- 30803195_607849832-000-00-ED1-MM.TIF
- 3D envelope in stp
- 30803195_607849833-000-00-E43.STP
- Cutting data recommendations
- 30803195_MEGA-Drill-Steel-Plus_EN.pdf
