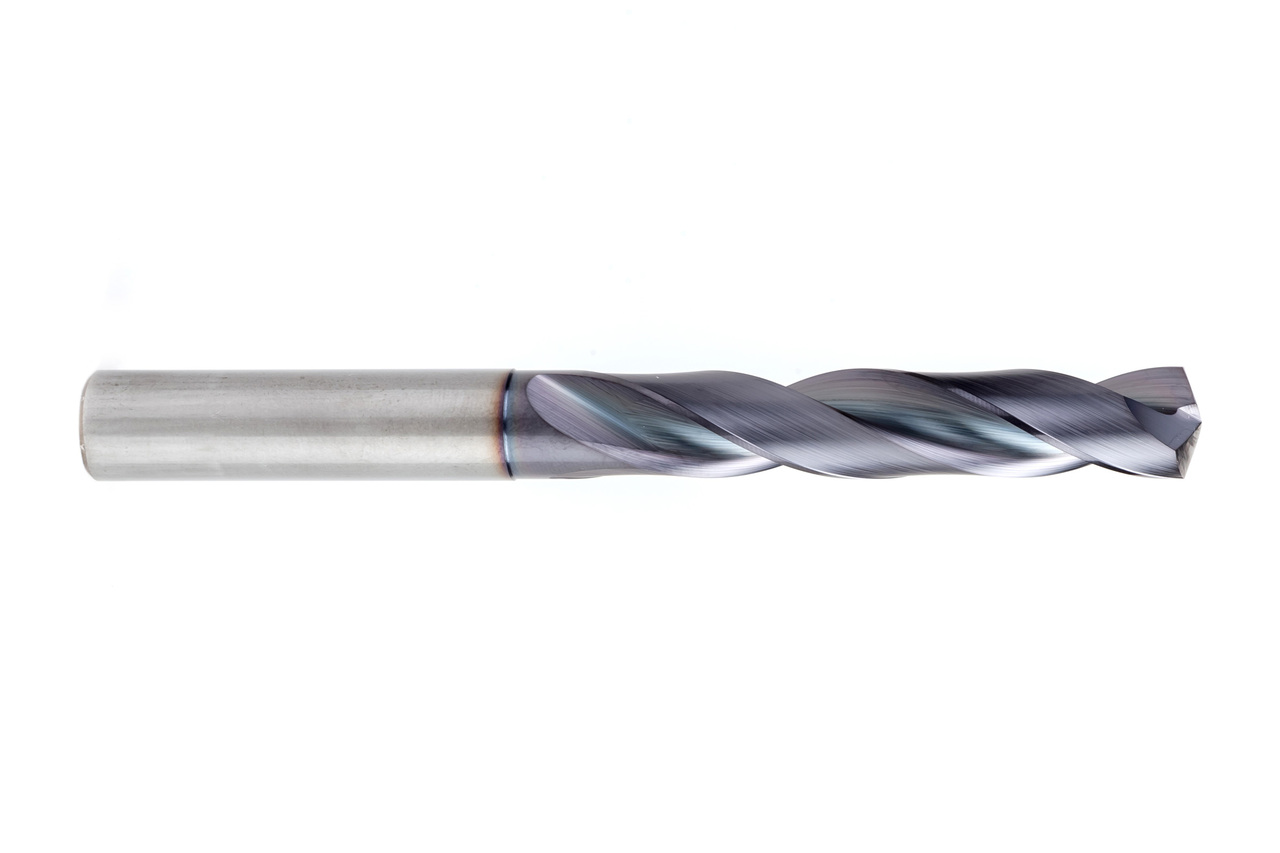

MEGA-Drill-Steel-Plus
Diameter d1 (mm)
17.5
Your unit price
*Login requiredWe recommend:
Product description
The double-edged solid carbide drill MEGA-Drill-Steel-Plus is ideally suited for medium to high quantities in a wide range of applications. The special design of the cutting edges and the chip chambers make it ideal for economical steel machining.
Technical specifications
- Cutting material
- HP358
- Product class
- Performance-Line
- Drilling depth
- 5xD
- d1
- 17.5 mm
- d2
- 18 mm
- l1
- 143 mm
- l2
- 93 mm
- l3
- 71 mm
- l4
- 48 mm
- Kühlmittelaustritt
- externe Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 2
- Schafttoleranz
- h6
- Bohrungstoleranz
- ≥ IT 9
- Schaftform
- HA
- Spitzenwinkel
- 140 °
- Seitenspanwinkel
- 30 °
- Materialgruppe
- M8
Downloads

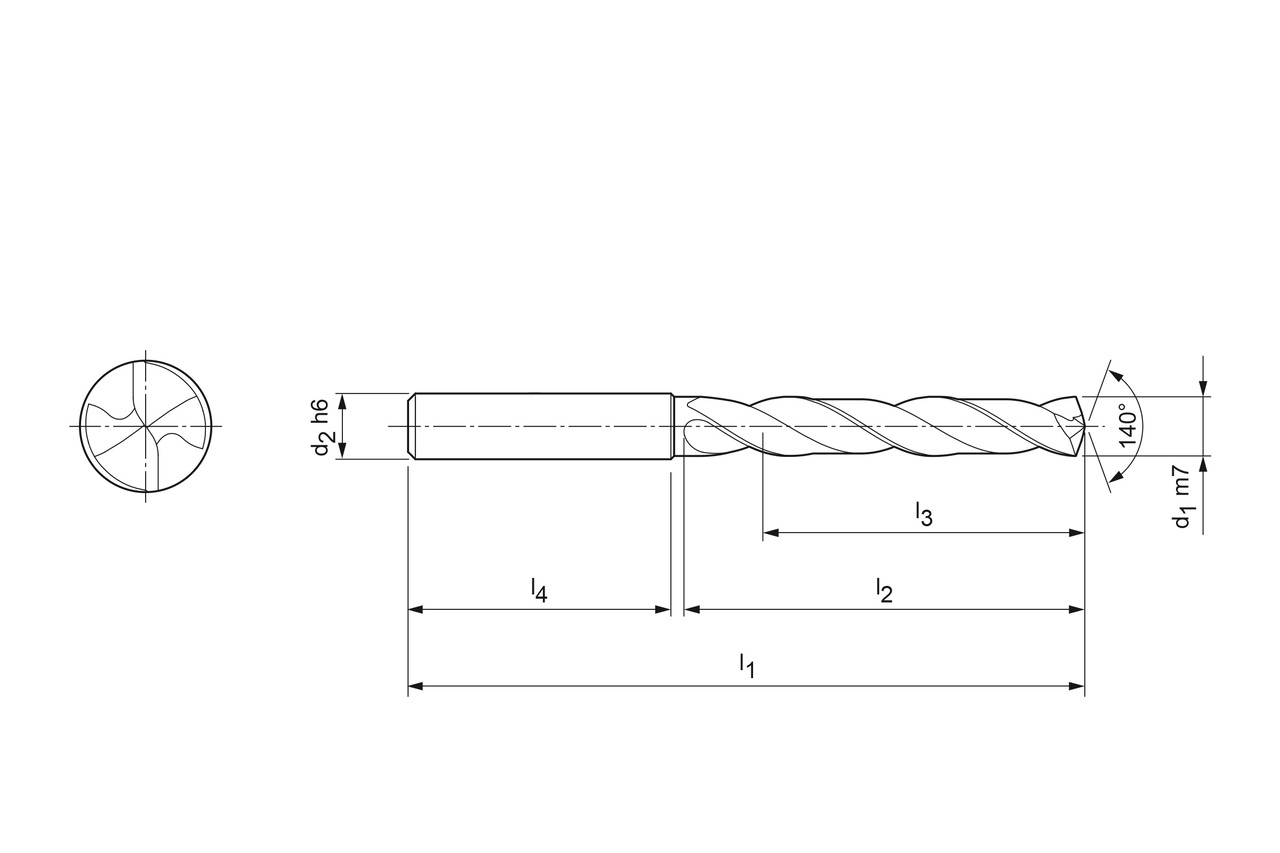

- Technische Zeichnung in dxf
- 30801780_607844464-000-00-ED1-MM.DXF
- Technische Zeichnung in pdf
- 30801780_607844464-000-00-ED1-MM.PDF
- Technische Zeichnung in tif
- 30801780_607844464-000-00-ED1-MM.TIF
- Technische Zeichnung in tif
- 30801780_607844464-000-00-ED1.TIF
- Technische Zeichnung in dxf
- 30801780_607844464-000-00-ED1.DXF
- Technische Zeichnung in pdf
- 30801780_607844464-000-00-ED1.PDF
- 3D Hüllkontur in stp
- 30801780_607844465-000-00-E43.STP
- Cutting data recommendations
- 30801780_ECU-Drill-Steel_MEGA-Drill-Steel-Plus_Schnittwertempfehlung.pdf
- Technical drawing in tif
- 30801780_607844464-000-00-ED1-MM.tif
- Cutting data recommendations
- 30801780_MEGA-Drill-Steel-Plus_EN.pdf
