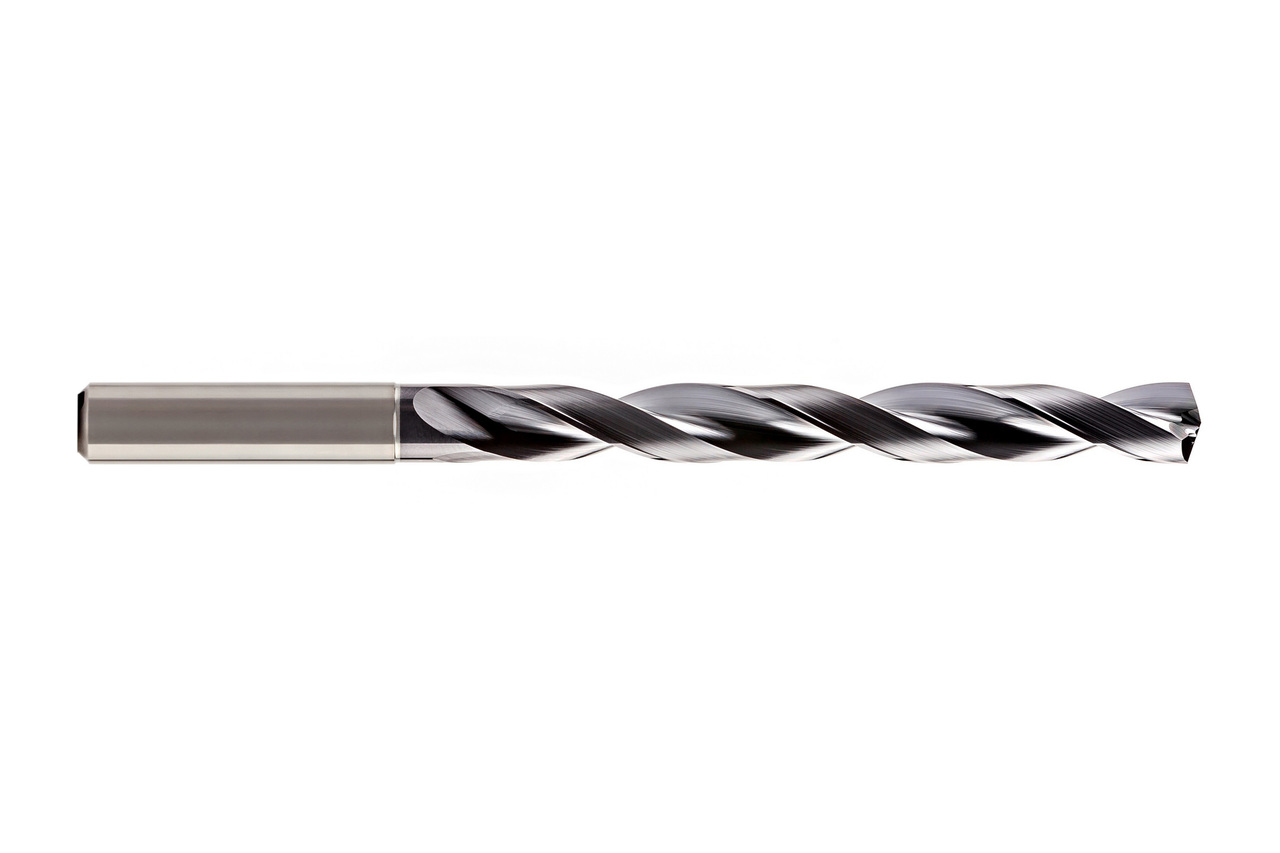

MEGA-Drill-Inox
Diameter d1 (mm)
3.8
Your unit price
*Login requiredWe recommend:
Product description
In addition to its very sharp cutting edge with special cutting edge preparation, the MEGA-Drill-Inox has an optimised chip chamber with a rounded geometry.
Technical specifications
- Product class
- Performance-Line
- Drilling depth
- 8xD

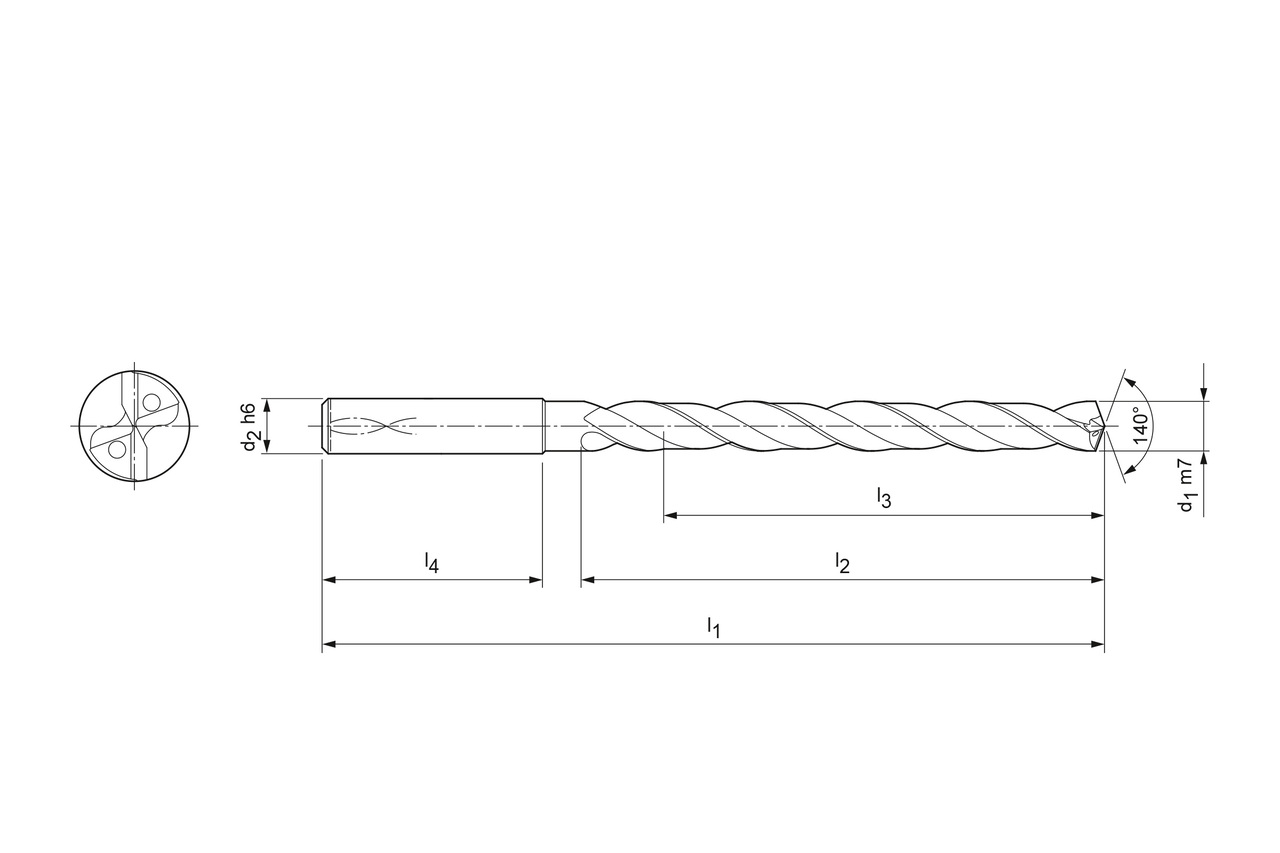

- d1
- 3.8 mm
- d2
- 6 mm
- l1
- 81 mm
- l2
- 43 mm
- l3
- 36 mm
- l4
- 36 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 140 °
- Side rake angle
- 30 °
- Material group
- M4
Downloads
- Technical drawing in dxf
- 30391179_607771124-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 30391179_607771124-000-00-ED1-MM.PDF
- Technical drawing in tif
- 30391179_607771124-000-00-ED1-MM.TIF
- Technical drawing in tif
- 30391179_607771124-000-00-ED1.TIF
- Technical drawing in dxf
- 30391179_607771124-000-00-ED1.DXF
- Technical drawing in pdf
- 30391179_607771124-000-00-ED1.PDF
- 3D envelope in stp
- 30391179_607771125-000-00-E43.STP
- Cutting data recommendations
- 30391179_MEGA-Drill-Inox_EN.pdf
