MEGA-Drill-Inox
Diameter d1 (mm)
11.3
Your unit price
*Login requiredWe recommend:

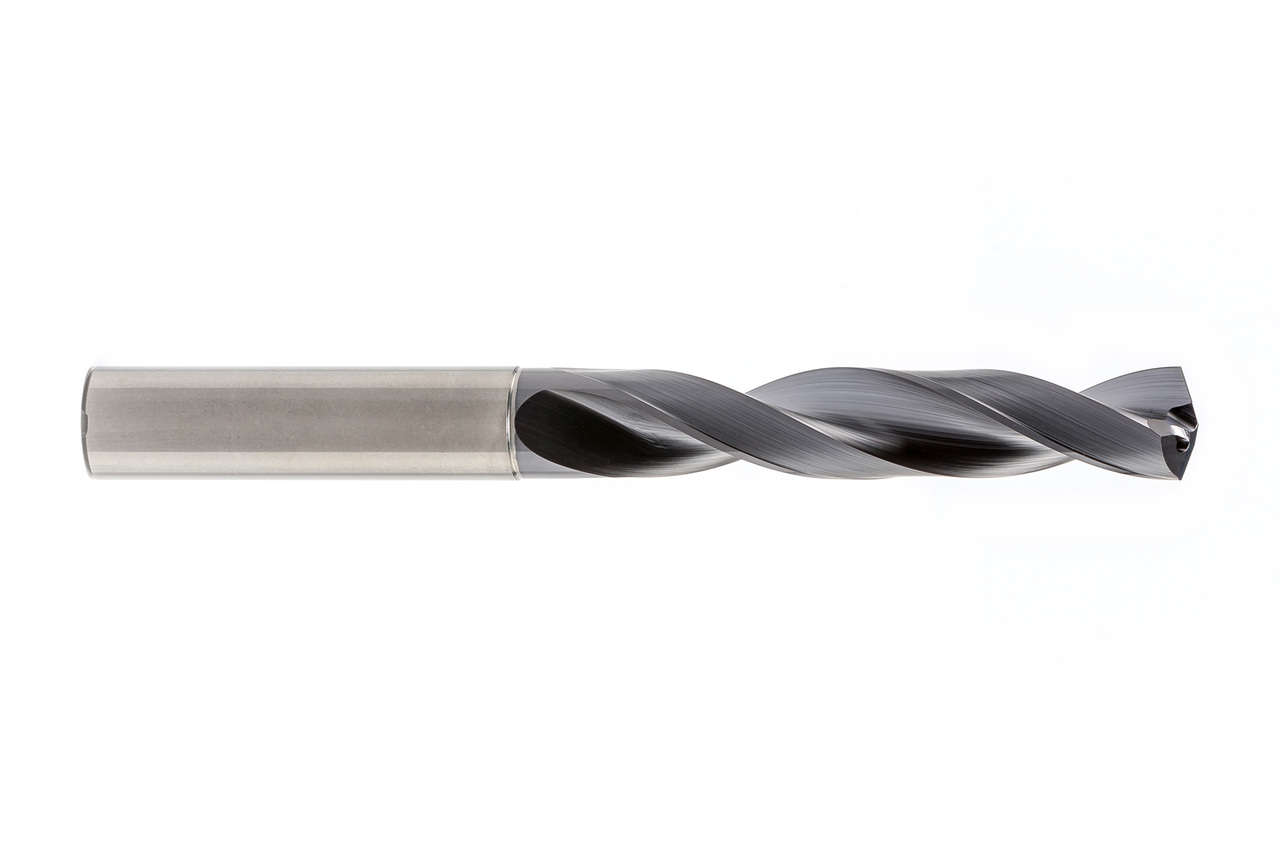

Product description
In addition to its very sharp cutting edge with special cutting edge preparation, the MEGA-Drill-Inox has an optimised chip chamber with a rounded geometry.
Material suitability
P
P1
P2
P3
P4
P5
P6
M
M1
M2
M3
K
K1
K2
K3
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3

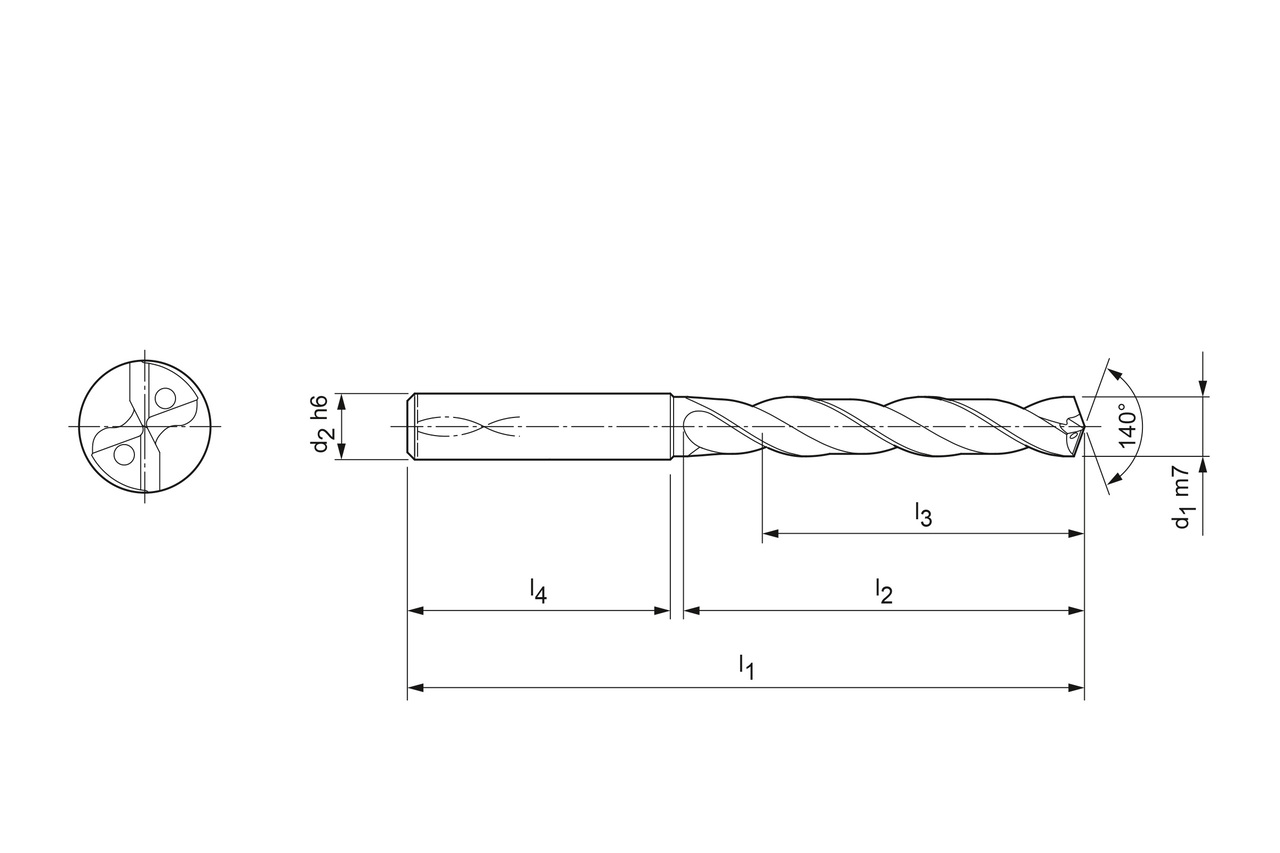

Technical specifications
- Cutting material
- HP835
- Product class
- Performance-Line
- Drilling depth
- 5xD
- d1
- 11.3 mm
- d2
- 12 mm
- l1
- 118 mm
- l2
- 71 mm
- l3
- 56 mm
- l4
- 45 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 140 °
- Side rake angle
- 30 °
- Material group
- M4
Downloads
- Technical drawing in dxf
- 30391034_607770703-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 30391034_607770703-000-00-ED1-MM.PDF
- Technical drawing in tif
- 30391034_607770703-000-00-ED1-MM.TIF
- Technical drawing in tif
- 30391034_607770703-000-00-ED1.TIF
- Technical drawing in dxf
- 30391034_607770703-000-00-ED1.DXF
- Technical drawing in pdf
- 30391034_607770703-000-00-ED1.PDF
- 3D envelope in stp
- 30391034_607770704-000-00-E43.STP
- Technical drawing in tif
- 30391034_607770703-000-00-ED1-MM.tif
- Cutting data recommendations
- 30391034_MEGA-Drill-Inox_EN.pdf
