MEGA-Drill-Inox

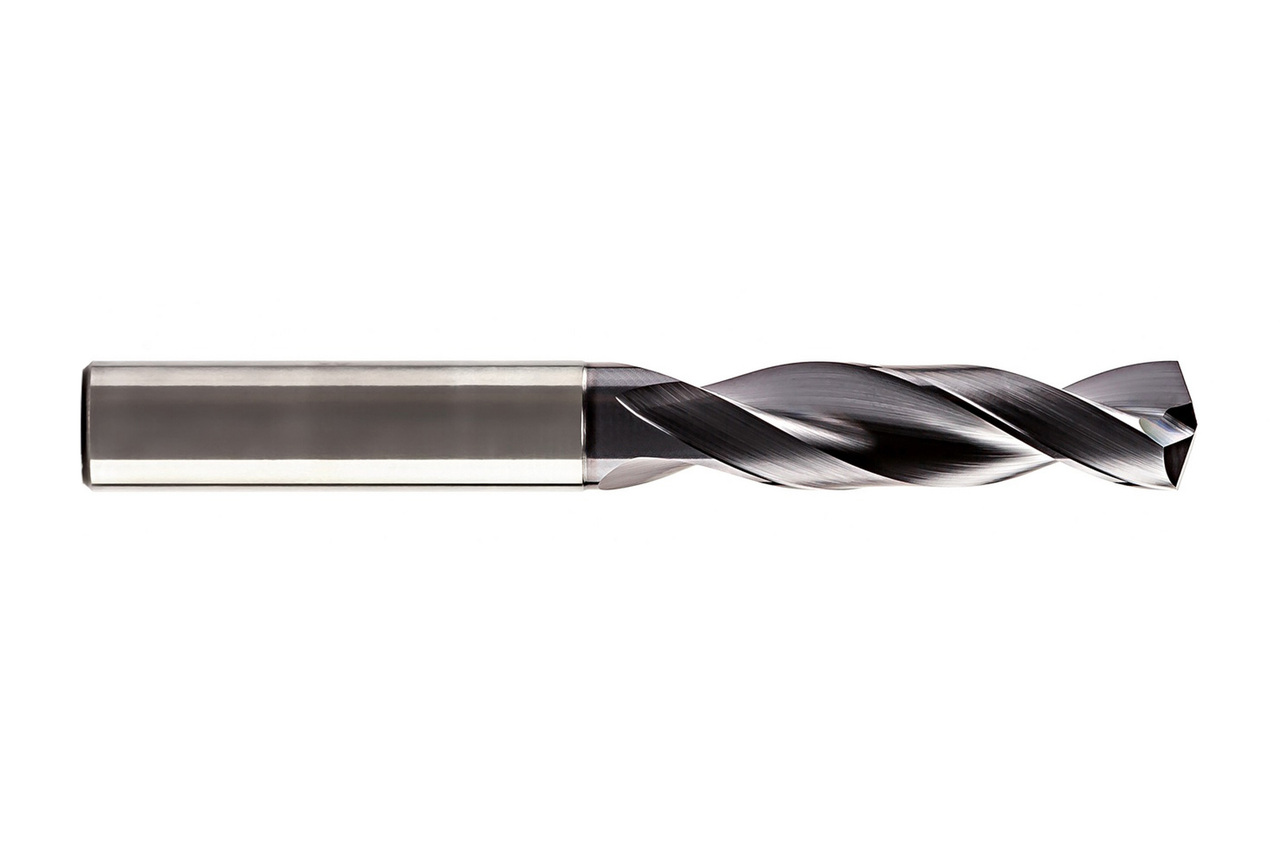

  • Produktbild MEGA-Drill-Inox

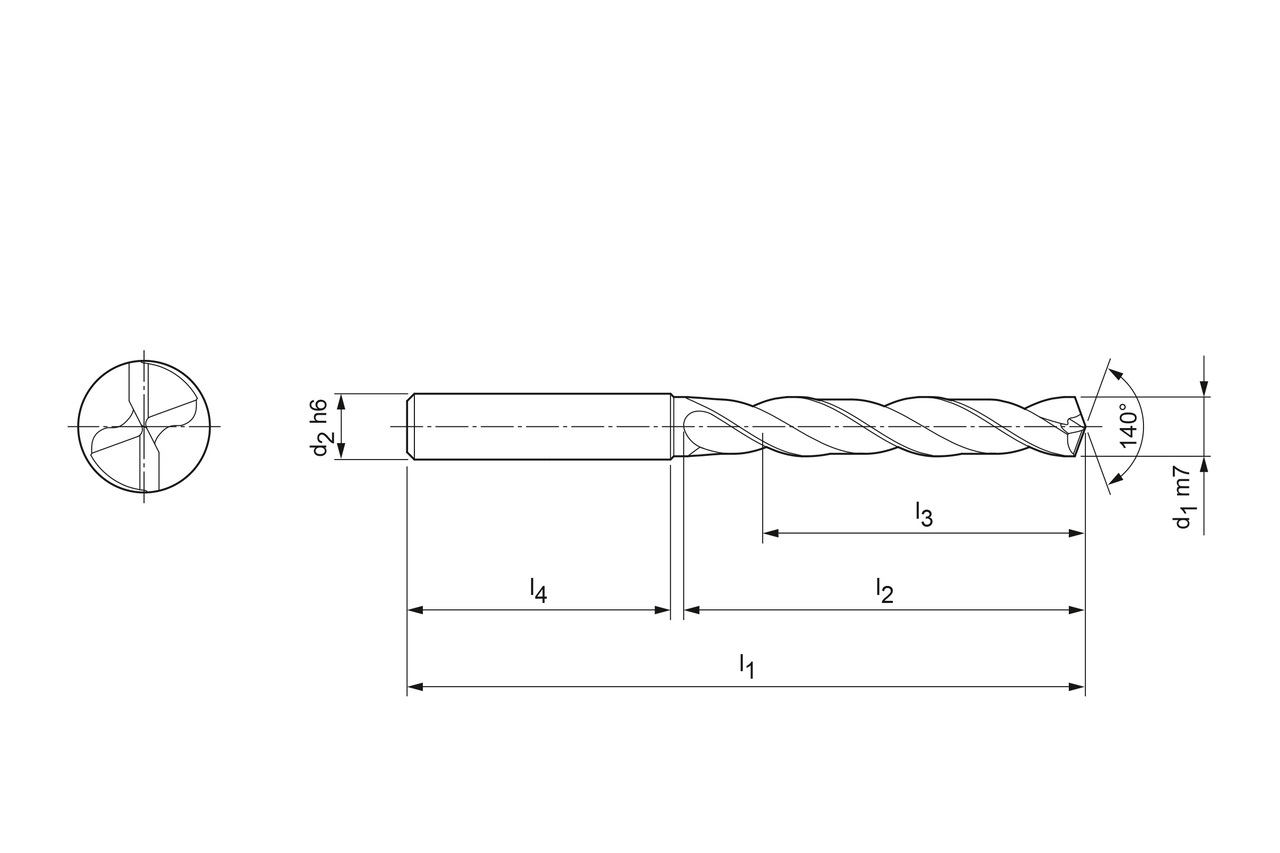

  • Produktzeichnung MEGA-Drill-Inox

Diameter d1 (mm)

3.3

Your unit price

*Login required

Article

30390733

Quantity

Added to Your Shopping Cart

We recommend:

Product description

Der MEGA-Drill-Inox hat zusätzlich zu seiner sehr scharfen Schneide mit spezieller Schneidkantenpräparation eine optimierte Spankammer mit einer abgerundeten Geometrie.

Material suitability

P
P1
suitable in some situations
P2
suitable in some situations
P3
suitable in some situations
P4
suitable in some situations
P5
suitable in some situations
P6
suitable in some situations
M
M1
highly suitable
M2
highly suitable
M3
highly suitable
K
K1
suitable in some situations
K2
suitable in some situations
K3
suitable in some situations
N
N1
N2
suitable in some situations
N3
N4
S
S1
suitable in some situations
S2
suitable in some situations
S3
suitable in some situations
S4
suitable in some situations
S5
suitable in some situations
H
H1
H2
H3

Technical specifications

Cutting material
HP835
Product class
Performance-Line
Drilling depth
5xD
d1
3.3   mm
d2
6   mm
l1
66   mm
l2
28   mm
l3
23   mm
l4
36   mm
Cooling
external cooling
Number of cutting edges (z)
2
Shank tolerance
h6
Bore tolerance
≥ IT 9
Shank type
HA
Tip angle
140   °
Side rake angle
30   °
Material group
M4

Downloads

Technical drawing in dxf
30390733_607769696-000-00-ED1-MM.DXF
Technical drawing in pdf
30390733_607769696-000-00-ED1-MM.PDF
Technical drawing in tif
30390733_607769696-000-00-ED1-MM.TIF
Technical drawing in tif
30390733_607769696-000-00-ED1.TIF
Technical drawing in dxf
30390733_607769696-000-00-ED1.DXF
3D envelope in stp
30390733_607769697-000-00-E43.STP
Technische Zeichnung in tif
30390733_607769696-000-00-ED1-MM.tif
Schnittwertempfehlung
30390733_MEGA-Drill-Inox_EN.pdf
