MEGA-Deep-Drill-Alu
Durchmesser d1 (mm)
3.0
Your unit price
*Login erforderlichArticle
30392294
Quantity
Added to Your Shopping Cart
Benachrichtigen Sie mich, wenn der Artikel wieder auf Lager ist
Product description

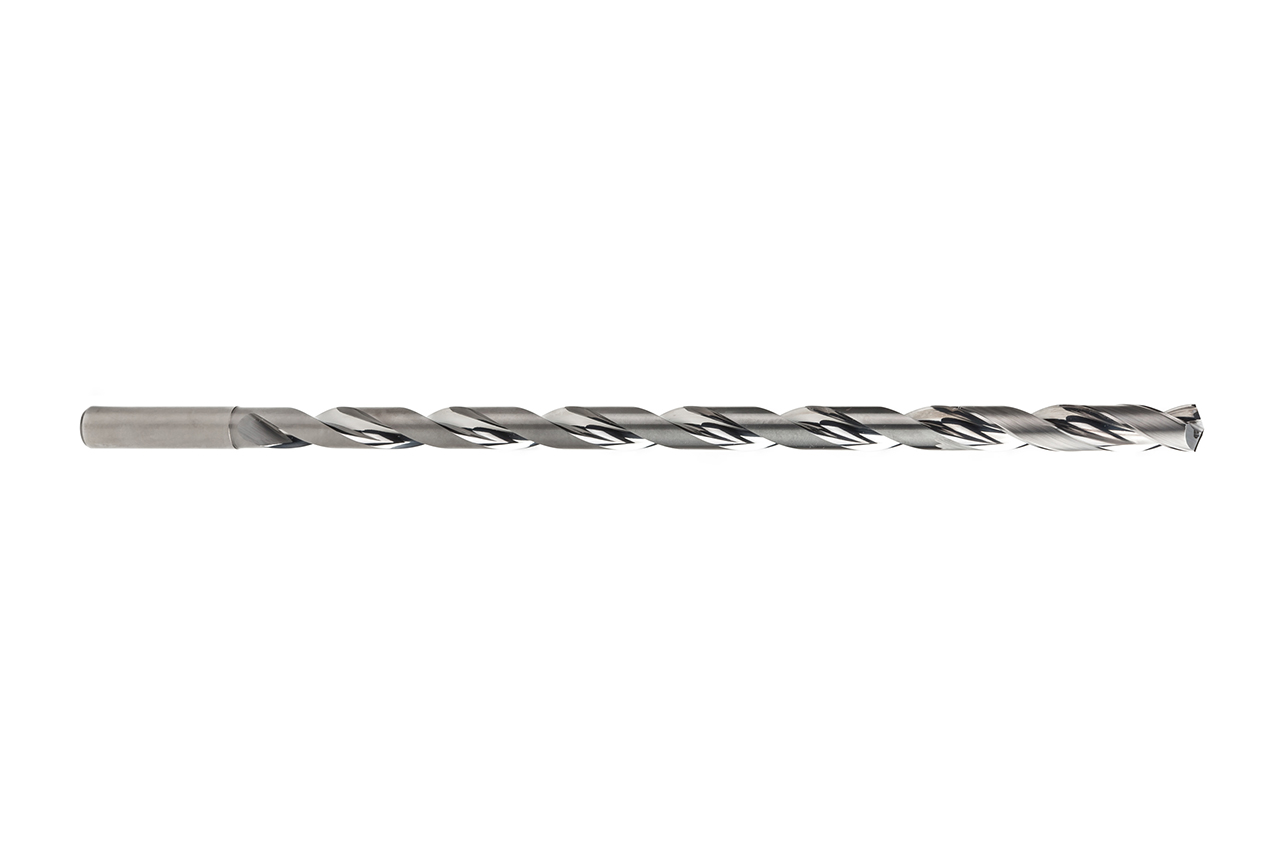

The double-edged deep drilling tool, MEGA-Deep-Drill-Alu, is excellently suited for deep drilling applications in aluminium. Thanks to its four guiding edges, the drill bit deviation is minimized, resulting in significantly improved drilling results. Furthermore, the special TiAlN coating ensures short chips and guarantees a reliable drilling process.
Technical specifications
- Schneidstoff
- HU680
- Produktklasse
- Performance-Line
- Bohrtiefe
- 20xD

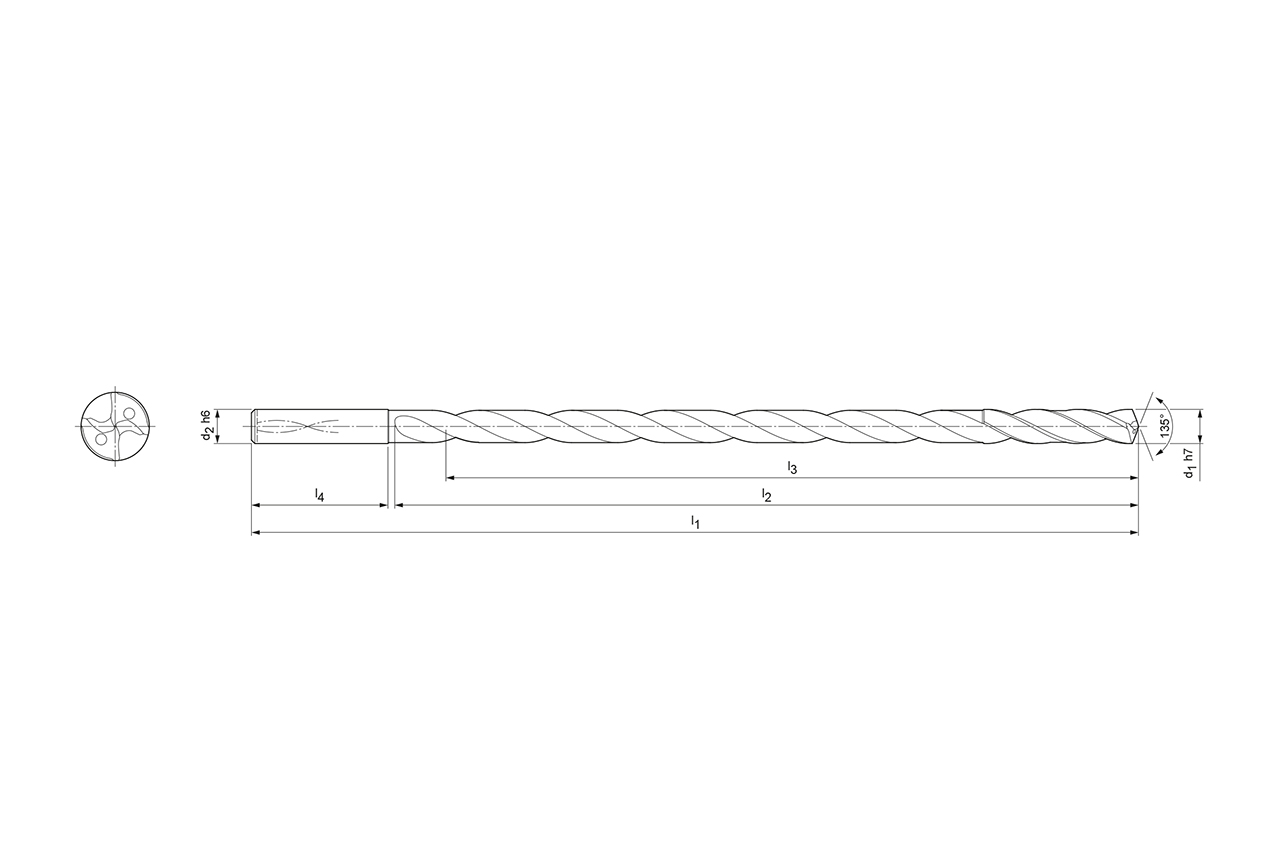

- d1
- 3 mm
- d2
- 4 mm
- l1
- 110 mm
- l2
- 74 mm
- l4
- 32 mm
- Kühlmittelaustritt
- innere Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 2
- Schafttoleranz
- h6
- Bohrungstoleranz
- ≥ IT 9
- Schaftform
- HA
- Spitzenwinkel
- 135 °
- Seitenspanwinkel
- 30 °
- Materialgruppe
- R6
- Spezifikation
- SCD181-0300-2-4-135HA20-HU680
Downloads
- 3D Hüllkontur in stp
- 30392294_607553446-000-00-E43.STP
- Technische Zeichnung in dxf
- 30392294_606950032-000-01-ED1.DXF
- Technische Zeichnung in tif
- 30392294_606950032-000-01-ED1.TIF
- Cutting data recommendations
- 30392294_MEGA-Deep-Drill-Alu_EN.pdf
