MEGA-180°-Drill-Alu

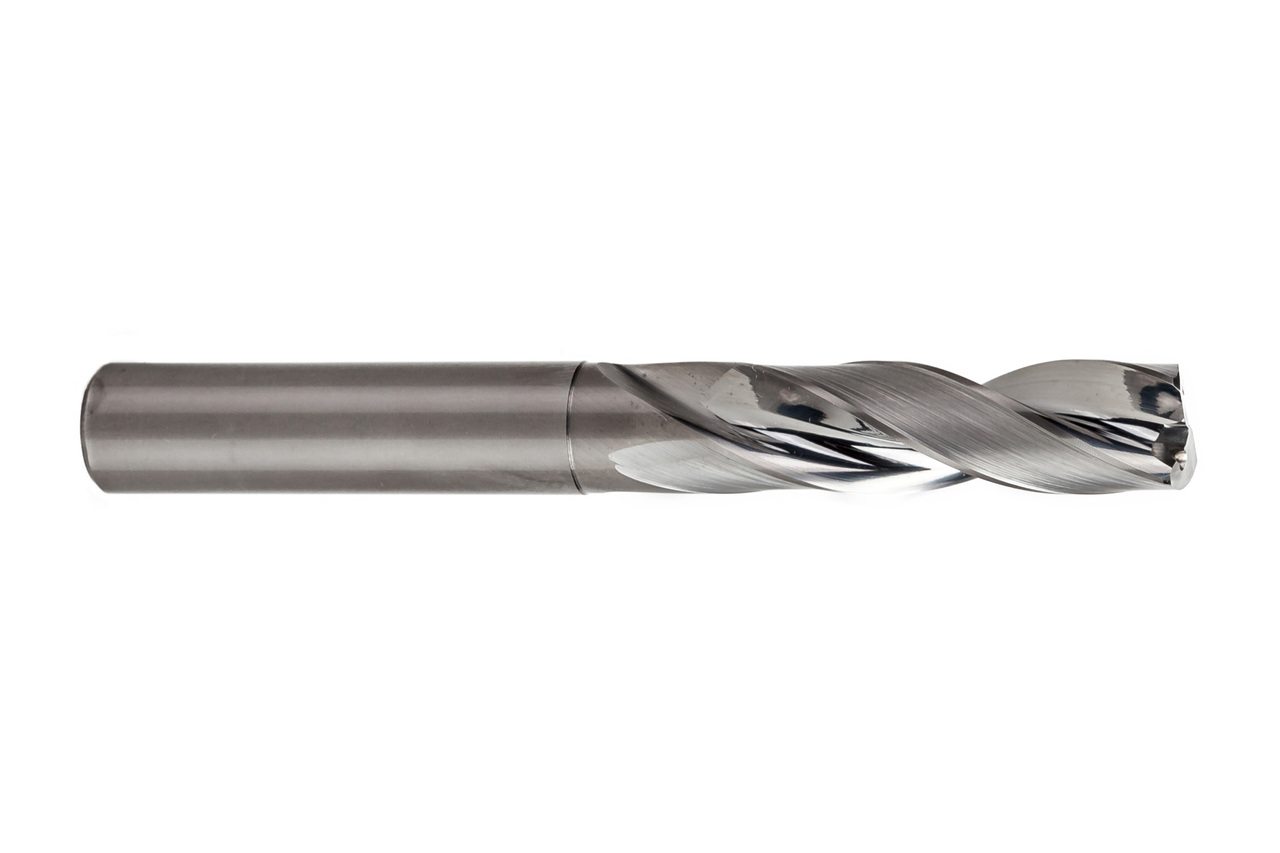

  • Product image MEGA-180°-Drill-Alu

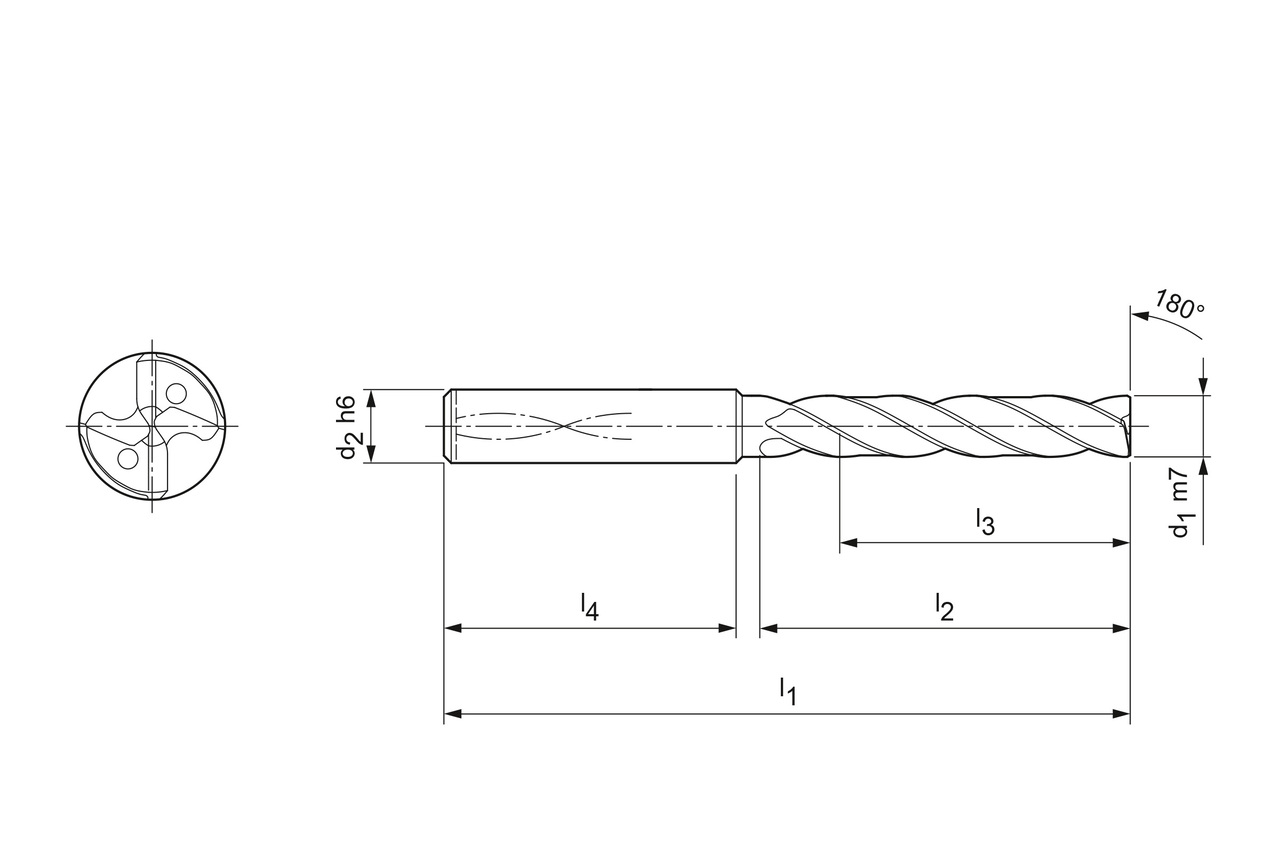

  • Technical drawing MEGA-180°-Drill-Alu

Durchmesser d1 (mm)

18.5

Your unit price

*Login erforderlich

Article

30382994

Quantity

Added to Your Shopping Cart

Unsere Produktempfehlung:

Product description

The MEGA-180°-Drill-Alu has a 180° point angle and a special bevel to produce a flat bore base. Due to its four-bevel geometry and the resulting very good guidance in the bore, the MEGA-180°-Drill-Alu achieves optimum roundness and surfaces in the bores. In addition, polished chip flutes ensure optimum chip transport. The MEGA-180°-Drill-Alu is also suitable for drilling and piloting on inclined surfaces of up to 45°. Due to the flat tip, the radial forces are reduced compared to conventional 140° drill tips.

Material suitability

Technical specifications

Schneidstoff
HU630
Produktklasse
Expert-Line
Bohrtiefe
3xD
d1
18.5   mm
d2
20   mm
l1
129   mm
l2
77   mm
l3
53   mm
l4
50   mm
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
2
Schafttoleranz
h6
Bohrungstoleranz
≥ IT 9
Schaftform
HA
Spitzenwinkel
180   °
Seitenspanwinkel
30   °
Materialgruppe
R8

Downloads

Cutting data recommendations
30382994_MEGA-180°-Drill-Alu_EN.pdf
