ECU-Drill-Uni
Diameter d1 (mm)
9.1
Your unit price
*Login requiredWe recommend:
Product description

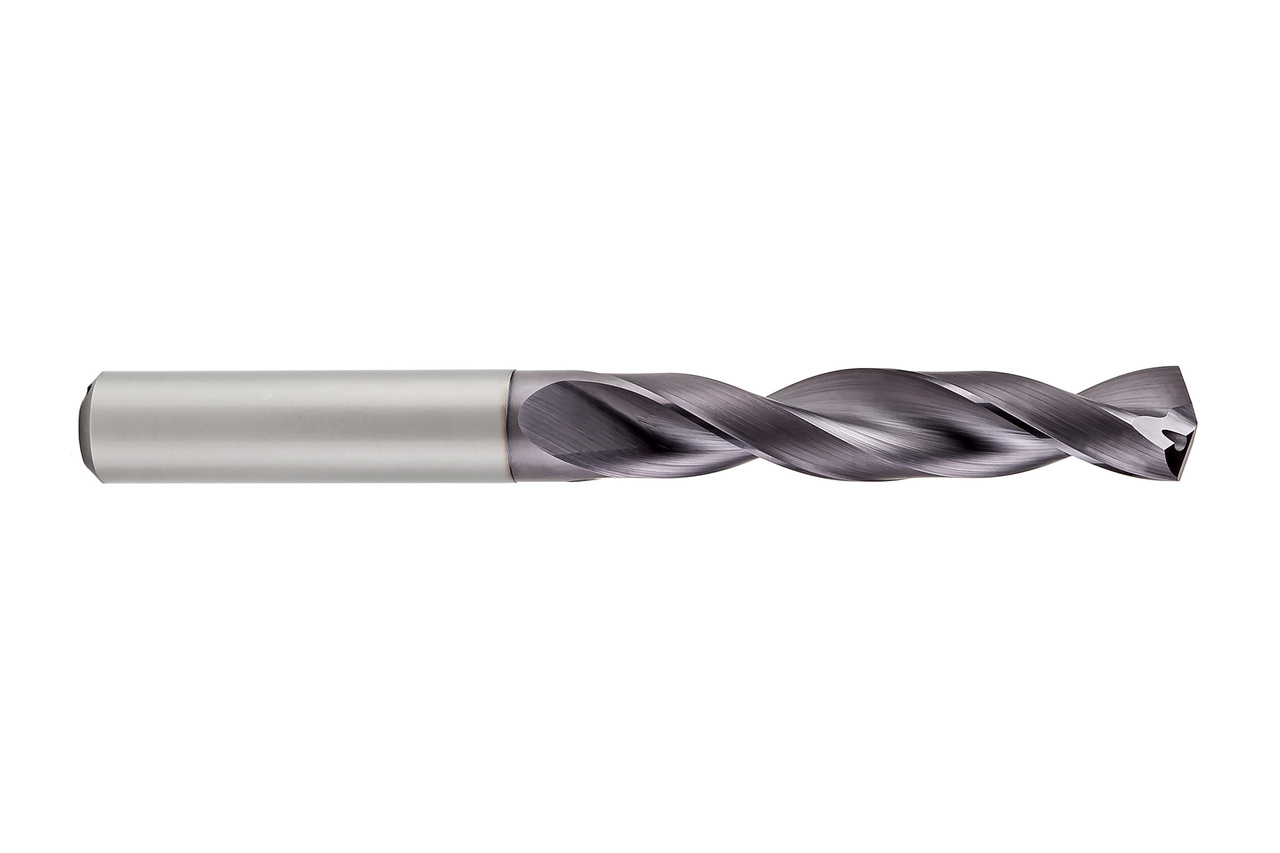

The ECU-Drill-Uni is optimally suited for universal use due to its geometry and coating. Steel, stainless steel and cast iron can be drilled economically and reliably. The ECU-Drill-Uni is available as a coated version for both internal and external coolant supply.
Material suitability
P
P1
P2
P3
P4
P5
P6
M
M1
M2
M3
K
K1
K2
K3
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3
Technical specifications
- Cutting material
- HP765
- Produktklasse
- Basic-Line
- Bohrtiefe
- 6xD
- d1
- 9.1 mm
- d2
- 10 mm
- l1
- 103 mm
- l2
- 61 mm
- l3
- 49 mm
- l4
- 40 mm
- Kühlmittelaustritt
- innere Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 2
- Schafttoleranz
- h6
- Bohrungstoleranz
- ≥ IT 9
- Schaftform
- HA
- Spitzenwinkel
- 140 °
- Seitenspanwinkel
- 30 °
- Materialgruppe
- RB
Downloads

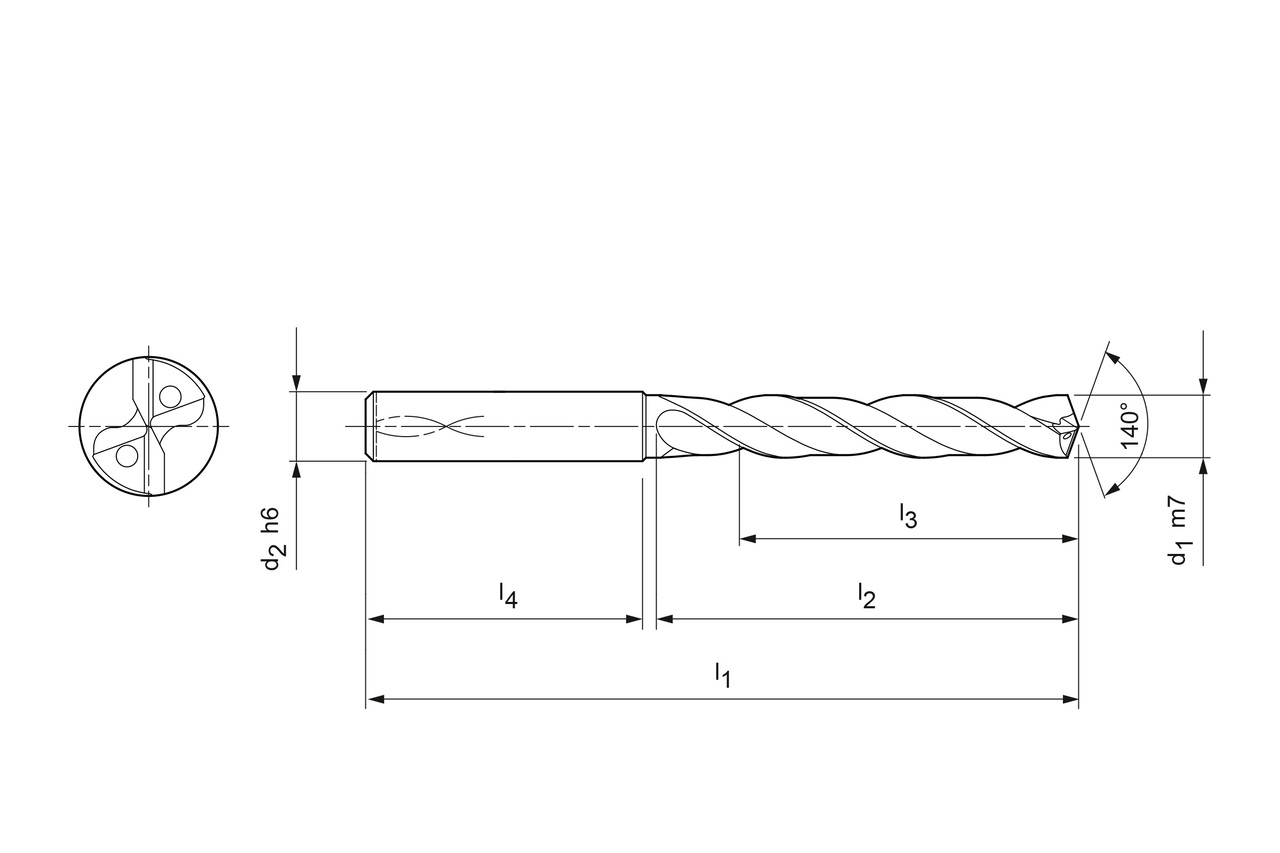

- Technische Zeichnung in dxf
- 30422023_607817944-000-00-ED1-MM.DXF
- Technische Zeichnung in pdf
- 30422023_607817944-000-00-ED1-MM.PDF
- Technische Zeichnung in tif
- 30422023_607817944-000-00-ED1-MM.TIF
- 3D Hüllkontur in stp
- 30422023_607817946-000-00-E43.STP
- Technical drawing in tif
- 30422023_607817944-000-00-ED1-MM.tif
- Cutting data recommendations ECU-Drill-Uni
- 30422023_ECU-Drill-Uni_EN.pdf
