ECU-Drill-Uni
Durchmesser d1 (mm)
4.1
Ihr Stückpreis
*Login erforderlichWe recommend:
Produktbeschreibung

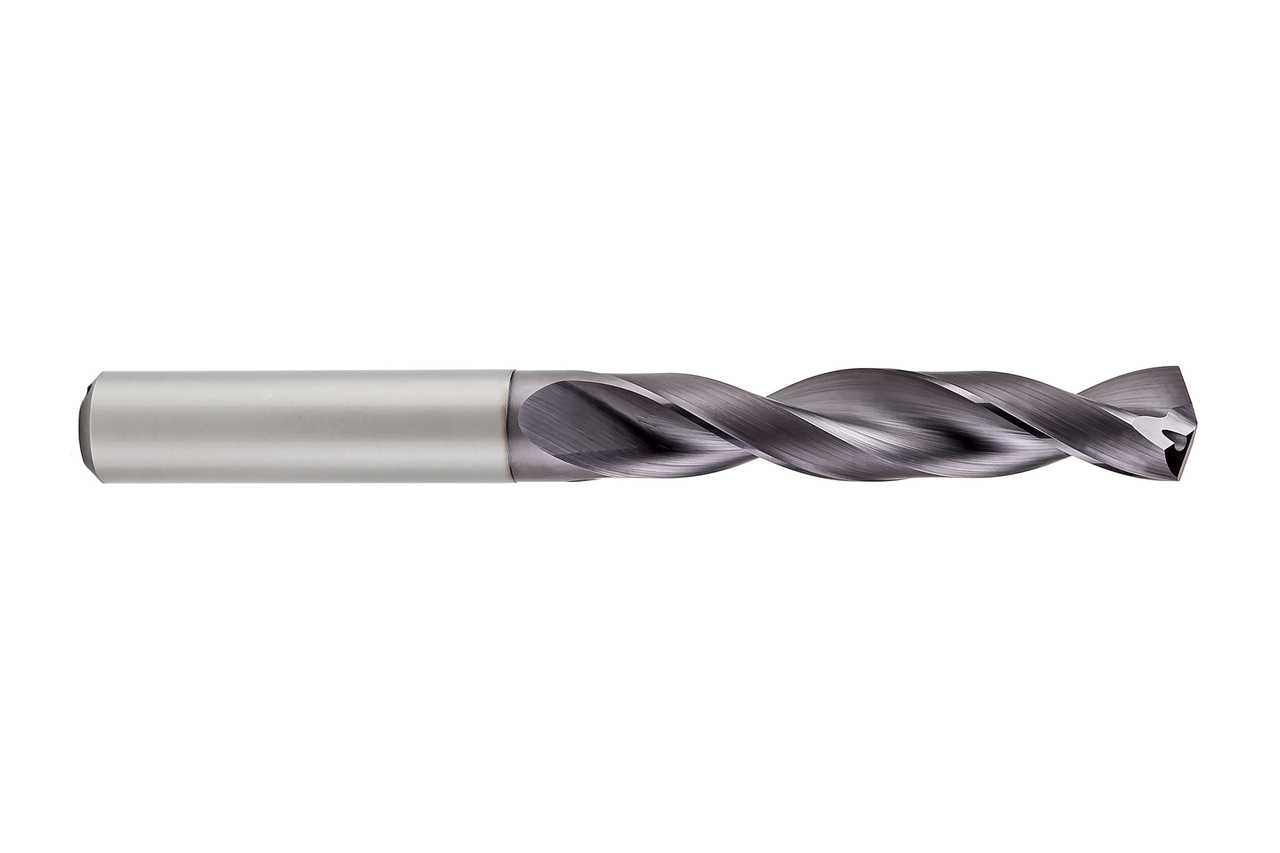

The ECU-Drill-Uni is optimally suited for universal use due to its geometry and coating. Steel, stainless steel and cast iron can be drilled economically and reliably. The ECU-Drill-Uni is available as a coated version for both internal and external coolant supply.
Technische Daten
- Cutting material
- HP765
- Product class
- Basic-Line
- Drilling depth
- 6xD
- d1
- 4.1 mm
- d2
- 6 mm
- l1
- 74 mm
- l2
- 36 mm
- l3
- 29 mm
- l4
- 36 mm
- Kühlmittelaustritt
- innere Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 2
- Schafttoleranz
- h6
- Bohrungstoleranz
- ≥ IT 9
- Schaftform
- HA
- Spitzenwinkel
- 140 °
- Seitenspanwinkel
- 30 °
- Materialgruppe
- RB
Downloads

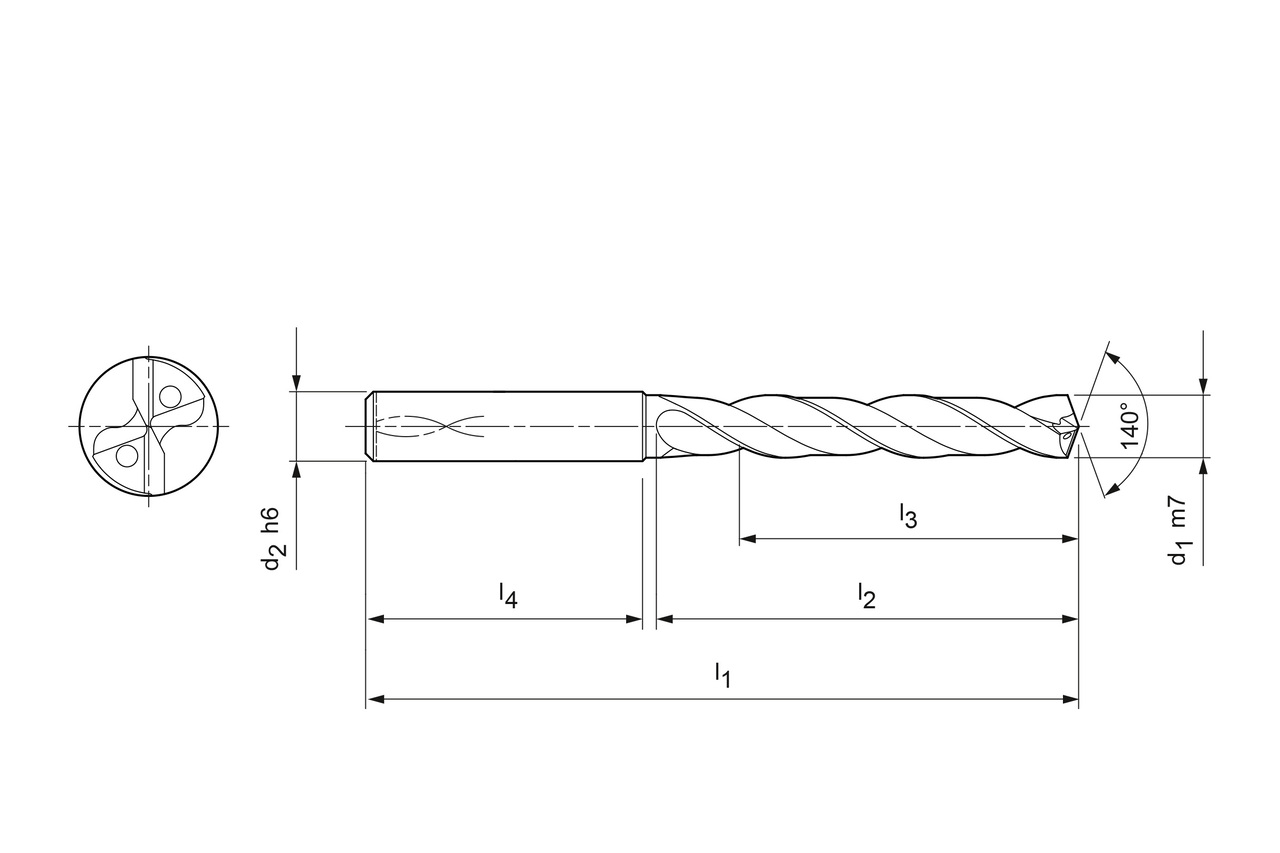

- Technische Zeichnung in dxf
- 30421969_607817677-000-00-ED1-MM.DXF
- Technische Zeichnung in pdf
- 30421969_607817677-000-00-ED1-MM.PDF
- Technische Zeichnung in tif
- 30421969_607817677-000-00-ED1-MM.TIF
- 3D Hüllkontur in stp
- 30421969_607817678-000-00-E43.STP
- Technical drawing in tif
- 30421969_607817677-000-00-ED1-MM.tif
- Cutting data recommendations ECU-Drill-Uni
- 30421969_ECU-Drill-Uni_EN.pdf
