ECU-Drill-Uni

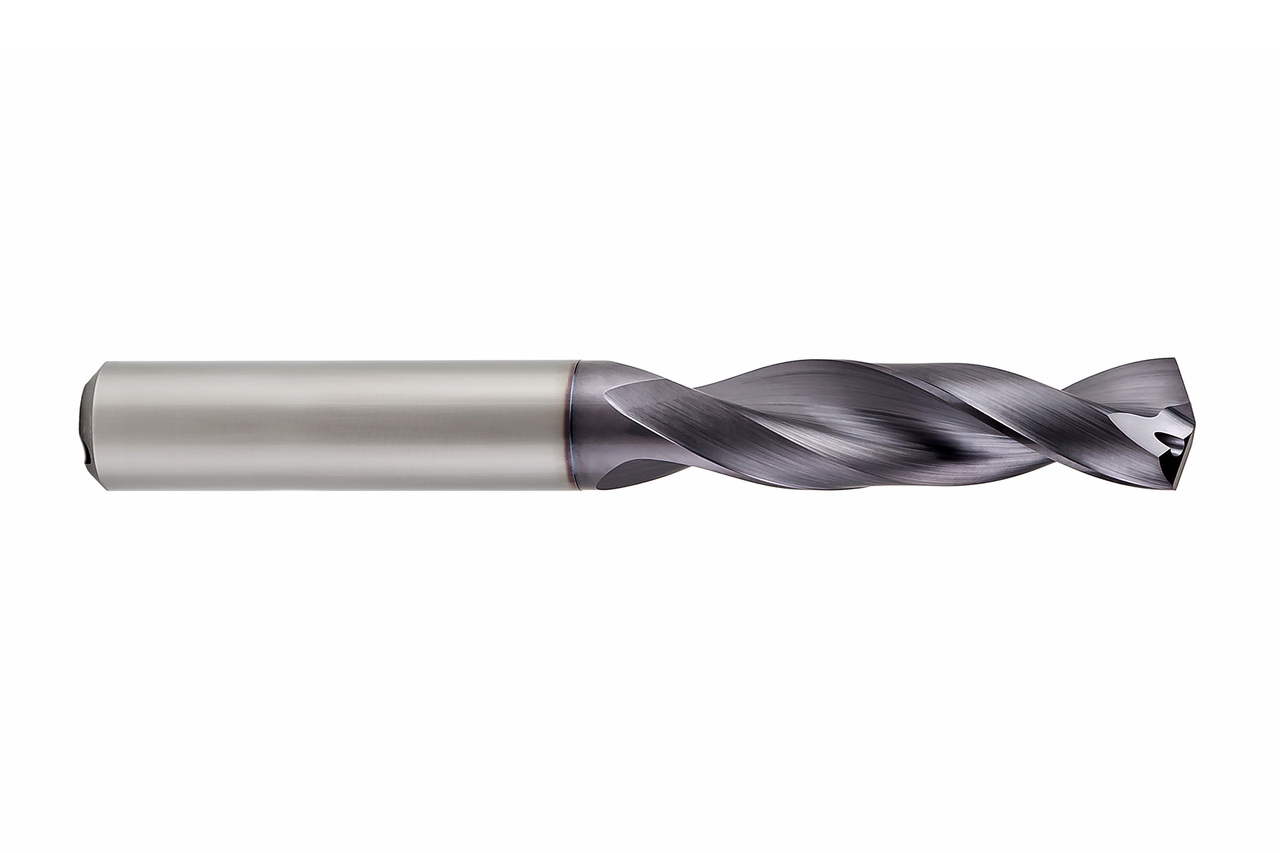

  • Product image ECU-Drill-Uni

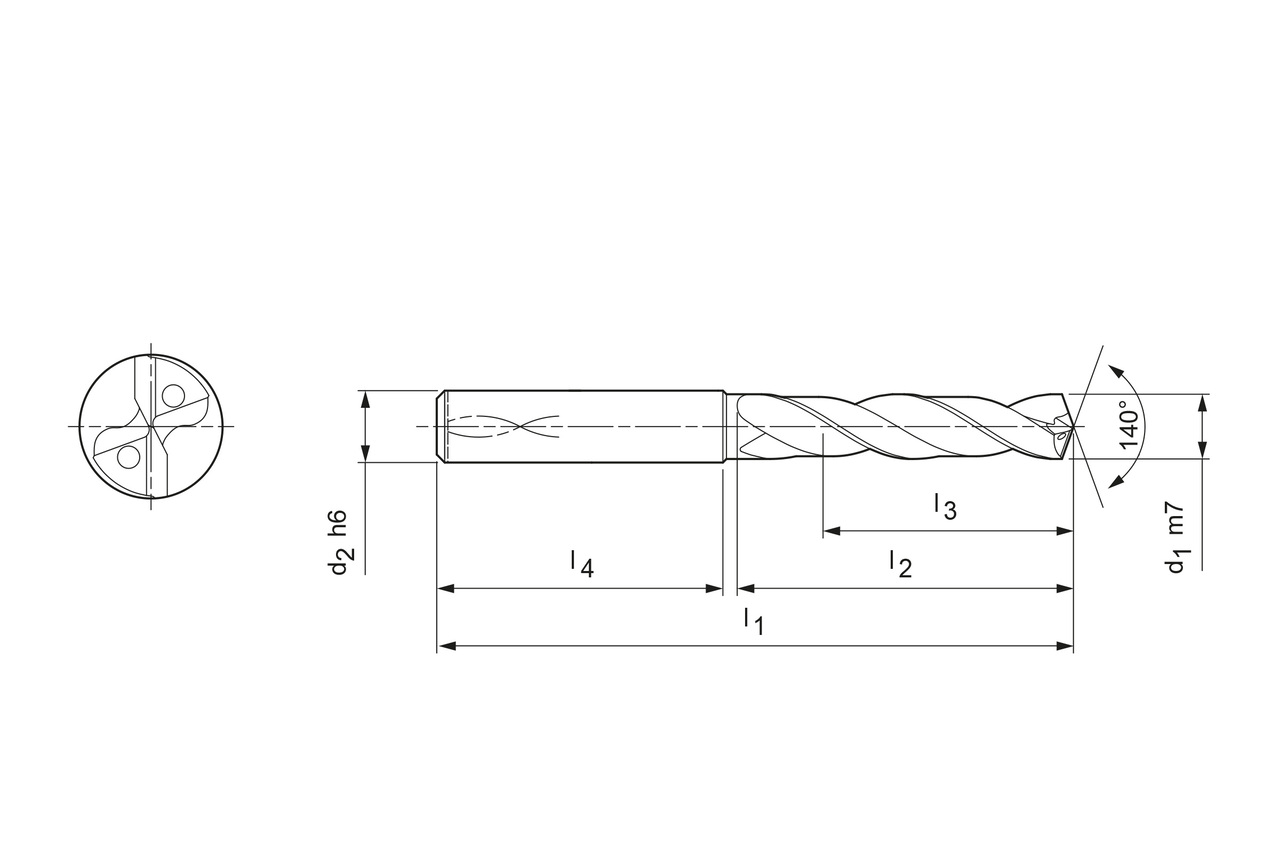

  • Technical drawing ECU-Drill-Uni

Durchmesser d1 (mm)

9.2

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30421894

Menge

Ihrem Warenkorb hinzugefügt

Unsere Produktempfehlung:

Produktbeschreibung

The ECU-Drill-Uni is optimally suited for universal use due to its geometry and coating. Steel, stainless steel and cast iron can be drilled economically and reliably. The ECU-Drill-Uni is available as a coated version for both internal and external coolant supply.

Materialeignung

Technische Daten

Schneidstoff
HP765
Produktklasse
Basic-Line
Bohrtiefe
4xD
d1
9.2   mm
d2
10   mm
l1
89   mm
l2
49   mm
l3
38   mm
l4
40   mm
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
2
Schafttoleranz
h6
Bohrungstoleranz
≥ IT 9
Schaftform
HA
Spitzenwinkel
140   °
Seitenspanwinkel
30   °
Materialgruppe
RB

Downloads

Technische Zeichnung in dxf
30421894_607817449-000-00-ED1-MM.DXF
Technische Zeichnung in pdf
30421894_607817449-000-00-ED1-MM.PDF
Technische Zeichnung in tif
30421894_607817449-000-00-ED1-MM.TIF
3D Hüllkontur in stp
30421894_607817450-000-00-E43.STP
Technical drawing in tif
30421894_607817449-000-00-ED1-MM.tif
Cutting data recommendations ECU-Drill-Uni
30421894_ECU-Drill-Uni_EN.pdf
