ECU-Drill-Uni

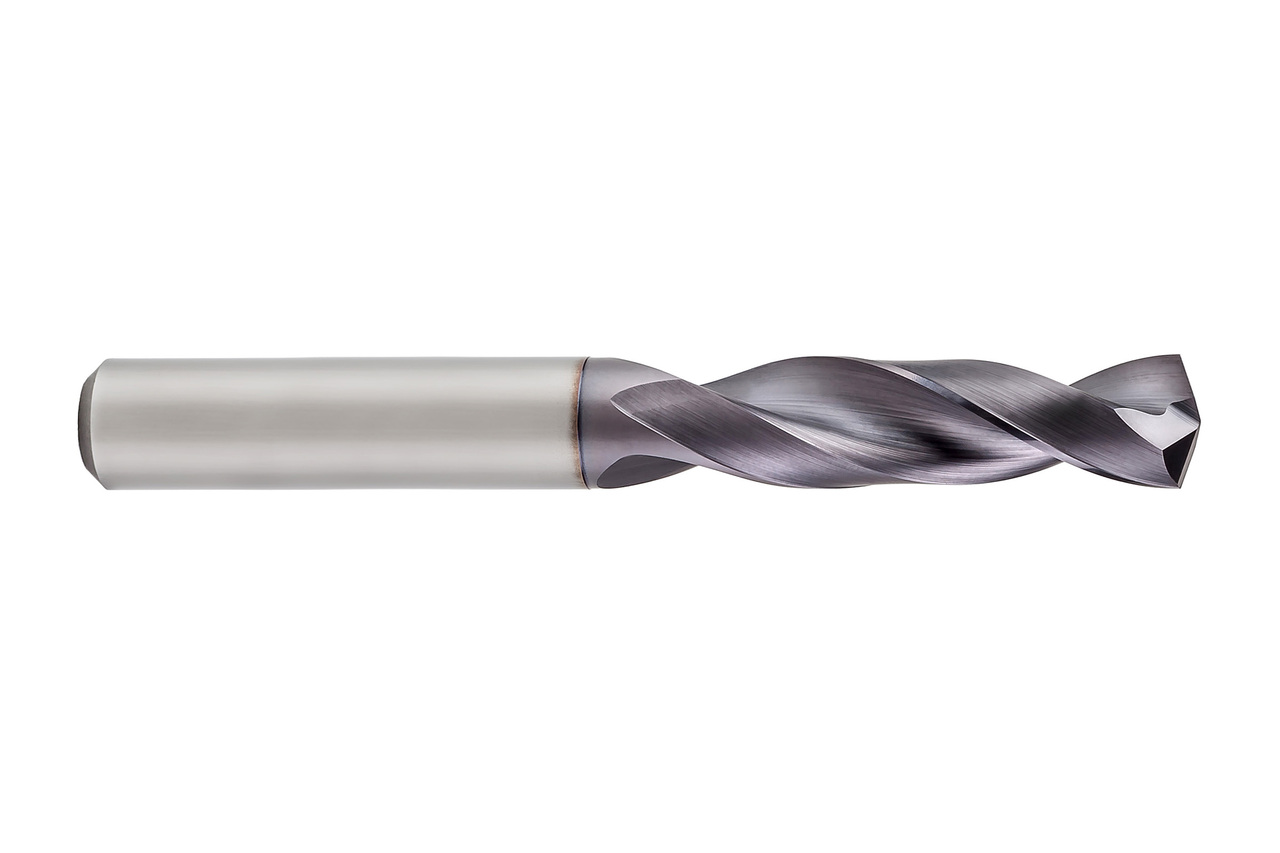

  • Product image ECU-Drill-Uni

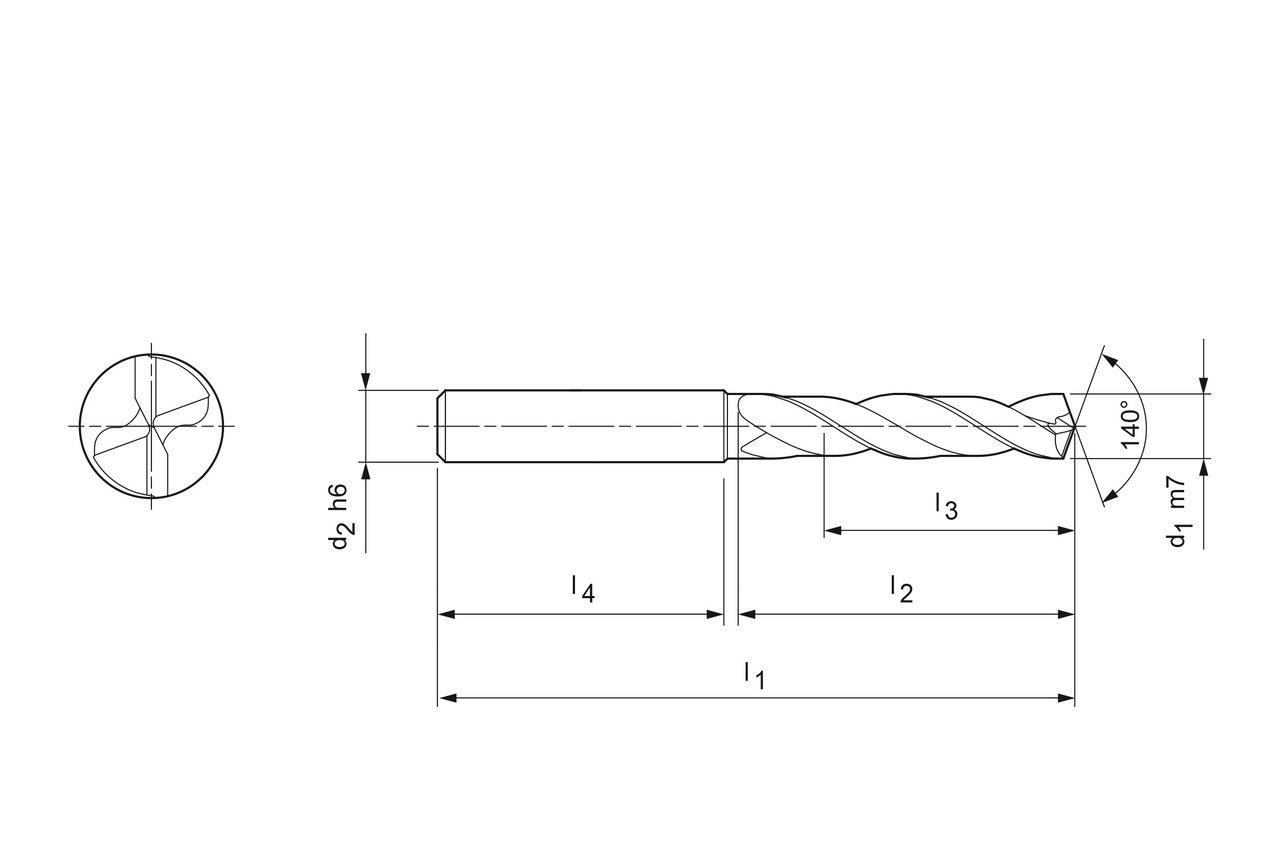

  • Technical drawing ECU-Drill-Uni

Diameter d1 (mm)

6.2

Your unit price

*Login required

Article

30421733

Quantity

Added to Your Shopping Cart

Unsere Produktempfehlung:

Product description

The ECU-Drill-Uni is optimally suited for universal use due to its geometry and coating. Steel, stainless steel and cast iron can be drilled economically and reliably. The ECU-Drill-Uni is available as a coated version for both internal and external coolant supply.

Material suitability

Technical specifications

Schneidstoff
HP765
Produktklasse
Basic-Line
Bohrtiefe
4xD
d1
6.2   mm
d2
8   mm
l1
79   mm
l2
38   mm
l3
30   mm
l4
36   mm
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
2
Schafttoleranz
h6
Bohrungstoleranz
≥ IT 9
Schaftform
HA
Spitzenwinkel
140   °
Seitenspanwinkel
30   °
Materialgruppe
RB

Downloads

Technische Zeichnung in dxf
30421733_607816913-000-00-ED1-MM.DXF
Technische Zeichnung in pdf
30421733_607816913-000-00-ED1-MM.PDF
Technische Zeichnung in tif
30421733_607816913-000-00-ED1-MM.TIF
3D Hüllkontur in stp
30421733_607816914-000-00-E43.STP
Cutting data recommendations ECU-Drill-Uni
30421733_ECU-Drill-Uni_EN.pdf
